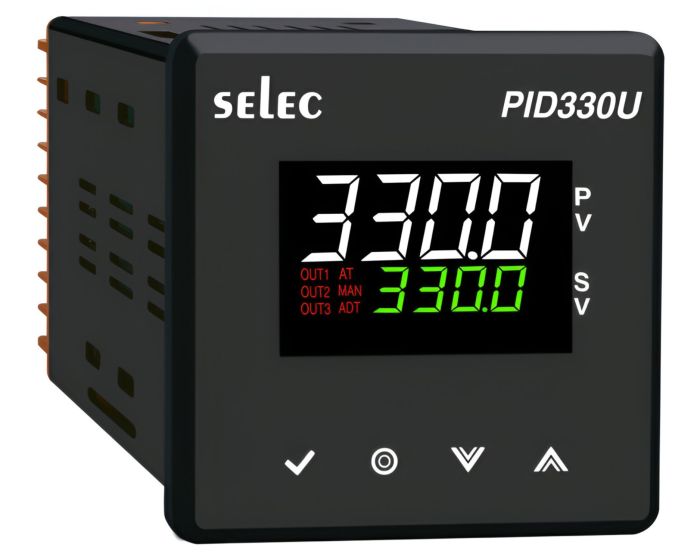

Selec PID330-U-C-1, 4+4 Digit Dual Display PID Temperature Controller, Universal Input and Output With RS485 Communication, Size 96x96mm, Panel Mount
In stock
SKU
PID330-U-C-1
Special Price
₹3,085.44
Regular Price
₹6,428.00
Check Delivery Options at your Area
FREE SHIPPING
Free Shipping by Surface Only*
SECURE PAYMENT
100% Secure Payment
| Display Type | 4+4 digits, 7 Segment LED Dual Display (White/Green) |
| Type of Input | Thermocouple: J, K, T, R, S, C, B, N, L, U, W, Platinel II RTD: PT100 Single Input (DC) -5 to 56mV, 0 to 10V, 0/4 to 20mA (Selectable) |
| Resolution | TC / RTD : 1/ 0.1 Analog input : 1 /0.1/ 0.01/ 0.001 |
| Sensor Supply | 24V DC, 100mA |
| Indication Accuracy | ± 0.25% of span or 1°C whichever is greater (20min of warmup time) Cold Junction Calibration accuracy in TC mode ± 5°C For RTD inputs : 0.1% of F.S ± 1°C |
| Control Output | Relay- 7A @ 250 VAC or 28 VDC SSR- 15 VDC Current- Range : 0-20 / 4-20 mA DC Voltage- Range : 0-5 VDC, 0-10 VDC ( Control Output Selectable ) |
| Auxiliary Output | Relay Output |
| Control Mode | Auto Tune, Self Tune & Adaptive Tune PID, ON-OFF |
| Feature | 128 step ramp soak profile control, Heat-Cool PID, Auto/Manual mode, Retransmission |
| Supply Voltage | 90V to 270V AC/DC |
| Communication | RS-485 MODBUS (optional) |
| Size | 96 x 96mm |
| Mounting Type | Panel Mount |
| Certification | CE |
| Protection | IP65 frontal |
| Product Code | Input | Supply Voltage | Communication (RS485) | Certification |
|---|---|---|---|---|
| PID330-U-0-1 | Universal | 90 to 270 VAC/ DC | No | CE |
| PID330-U-C-1 | Universal | 90 to 270 VAC/ DC | Yes | CE |
