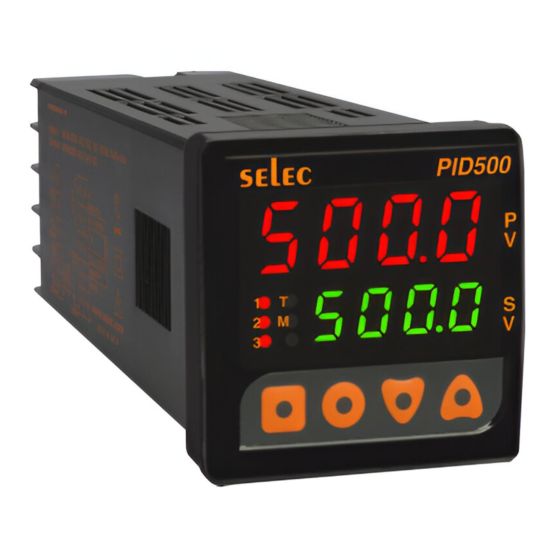

Selec PID500-0-0-04, 4+4 Digit Dual Display PID Temperature Controller, 3 Relay Output With Universal Input and RS485 Communication, Size 48x48mm, Panel Mount
In stock
SKU
PID500-0-0-04
Special Price
₹2,461.44
Regular Price
₹5,128.00
Check Delivery Options at your Area


FREE SHIPPING
Free Shipping by Surface Only*


SECURE PAYMENT
100% Secure Payment
- Display Type: 7 Segment LED Dual Display
- Display Configuration: 4+4 digits
- Type of Inputs: Thermocouple: (J, K, T, R, S, C,E, B, N, L, U, W, Platinel II) RTD: (PT100) Signal Inputs: (DC) (-5 to 56mV, 0 to 10V, 0 to 20mA) (Selectable)
- Resolution: TC / RTD : 1/ 0.1 Analog input : 1 /0.1/ 0.01/ 0.001
- Accuracy: For TC (J, K, T) inputs: (0.25% of F.S. ±1) For R & S inputs: (0.5% of F.S. ±2) (20min of warm up time) For RTD inputs: (0.1% of F.S ±1)
- Control Output: 3 Relay
- Auxiliary Output: Relay
- Control Mode: Autotune PID / ON-OFF
- Feature: Single step ramp soak
- Communication: RS485 MODBUS communication
- Supply Voltage: 90V to 270V AC/DC
- Size: 48 x 48mm
- Mounting Type: Panel Mount
- Certification: CE
