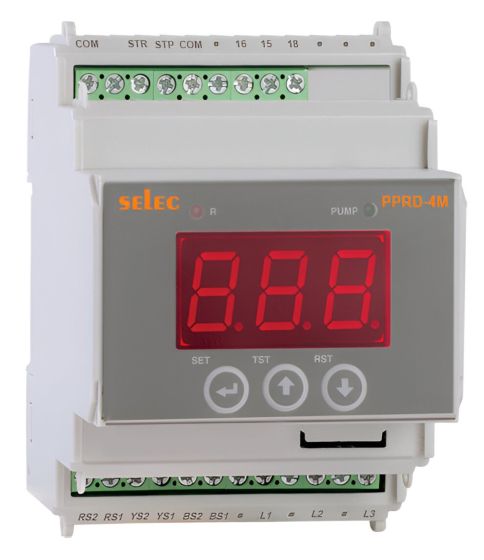

Selec PPRD-4M-3-415V, Three Phase Digital Pump protection relay, DIN Rail Mount, 415VAC
Selec PPRD-4M-3-415V, Three Phase Digital Pump protection relay, DIN Rail Mount, 415VAC

Selec PPRD-4M-3-415V, Three Phase Digital Pump protection relay, DIN Rail Mount, 415VAC

In stock
SKU
PPRD-4M-3-415V
Special Price ₹1,248.96 Regular Price ₹2,602.00
(18% GST Extra)
Add to Wish List
  • Monitors: Phase loss, Phase unbalance, Phase sequence, Overload trip current, Under / Over current and voltage in 3Ø Pumps.
  • Auto / Remote test available.
  • MPCT range : 10A - 80A
  • Output Contact : 1 C/O SPDT relay
  • Operating Range : 280 - 500V AC (L-L)
Check Delivery Options at your Area

FREE SHIPPING

Free Shipping by Surface Only*

SECURE PAYMENT

100% Secure Payment

  • Measuring Parameter: Monitors Over Load (As per NEMA Curve), Over Current,Dry Run/Under Current, Locked Current, Current Asymmetry, Phase Sequence, Phase Failure, Over Voltage, Under Voltage, Voltage Asymmetry
  • Electrical Connection: 3Ø - 3
  • Test / Reset: Manual / Auto reset
  • LED Indication: Power ON, Trip indication
  • Voltage Measuring Range: 280V AC to 500V AC (L - L)
  • Power Consumption: 40VA (max)
  • Output Contact: Control Output 1 C/O (SPDT), Relay Rating NO 5A@250V AC / 28VDCNC 3A@250V AC / 28VDC
  • Accuracy: Current Accuracy ±5% of rated current, Voltage Accuracy ±1% of 500V, Time Accuracy ±5% ±100msec
  • Functional Specification: Over Load NEMA class Curve 5, 10, 15, 20, 30 / Over Current Ranges 10% - 70% of Ir (Rated Current), Under Current 20% - 80% of Ir (Rated Current), Current Asymmetry Fixed : 50% of Ir (Rated Current), Locked Current / Stall Current Fixed : 300% of Ir (Rated Current), Over Voltage Fixed (480V), Under Voltage Fixed (350V)
  • Time Setting: Power ON Delay 1sec (Fixed), Trip Time Delay 0, 2, 4, 6, 8 & 10 sec,(Current & Voltage parameters), Auto reset time 15min,(Current & Voltage parameters), Phase Loss Instantaneous (<240ms), Phase Reversal Instantaneous (<240ms)
  • Auto Restart Attempts: 3 (Fixed) (max)
  • Restart Attempt Time Frame: 60min (Fixed) for current & voltage parameters
  • Mounting: DIN Rail
  • Size: 66.50 x 70 x 90 (H x W x L)
