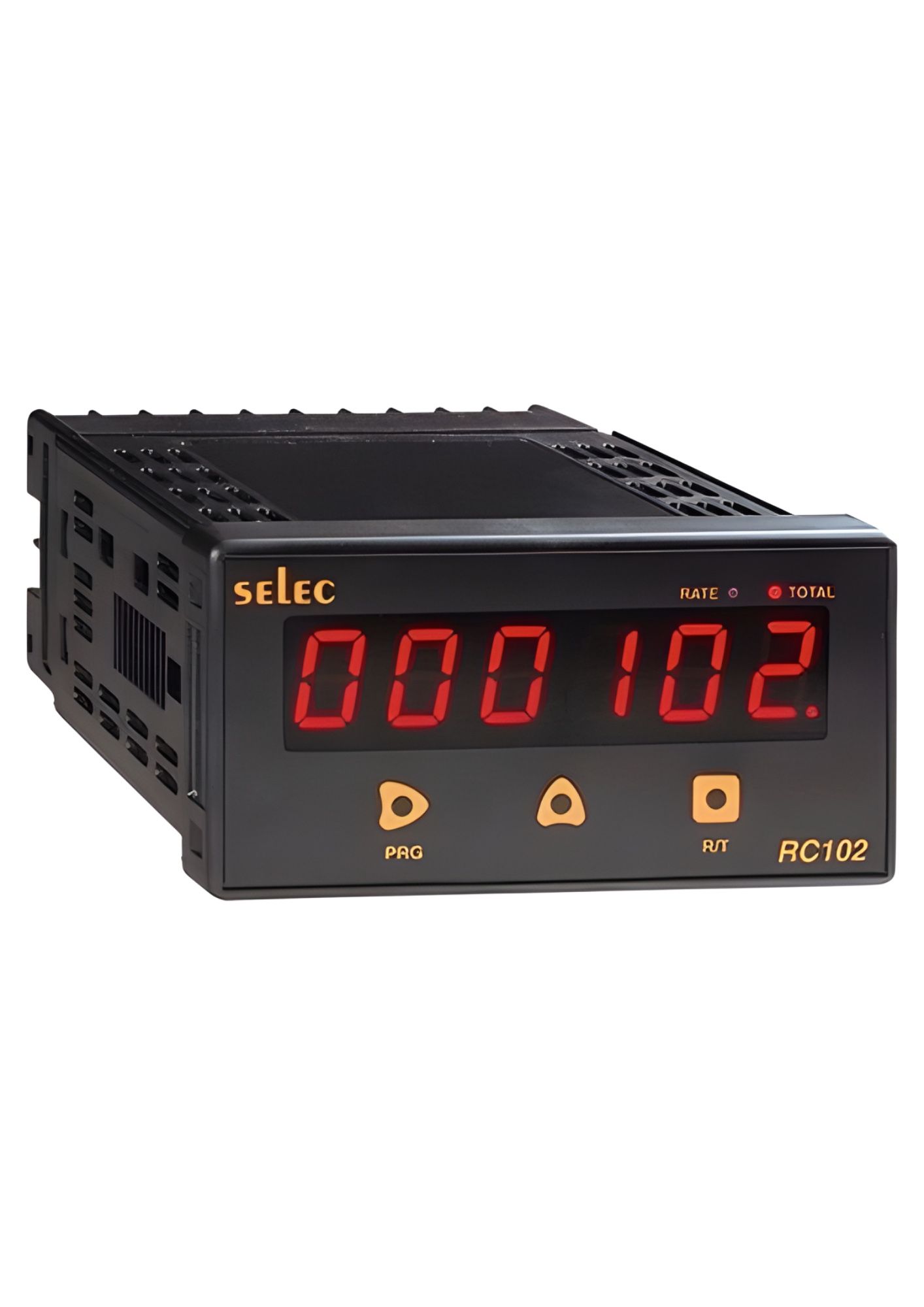

Selec RC102C, 6 Digits for Counter, 4 Digits for RPM Indicator, Programmable Input Scaling, 48x96mm, Panel Mount
Out of stock
SKU
RC102C
Special Price
₹2,561.28
Regular Price
₹5,336.00
FREE SHIPPING
Free Shipping by Surface Only*
SECURE PAYMENT
100% Secure Payment
| Datasheet | |
|---|---|
| Display | 6 digits for Counter, 4 digits for RPM Indicator |
| LED indications | Rate, Total |
| Sensor type | NPN / PNP |
| Input type | Voltage pulse (3 to 30V DC) from Proximity switches, Encoders, Solid state devices, Potential free contact |
| Input speed | a) 0 to 30Hz b) 0 to 2.5kHz |
| Accuracy | Rate : 0.05% ± 2 counts |
| Sensor supply | Inbuilt, 12V DC, 30mA |
| Ranges | Count : 9999.99, 99999.9, 999999 (user selectable) Rate : 4.00 to 9999 RPM |
| Counting mode | Unidirectional |
| Counting direction | Up |
| Memory retention | Current count value : 1 year Parameter setting : 10 years |
| Scale factor | 0.00001 to 9.99999 × 10n (n = -3, -2, -1, 0, 1, 2) |
| Reset | Front, Remote |
| Supply voltage | 90 to 270V AC/DC (50 / 60Hz) |
| Power consumption | 5VA max |
| Temperature | Operating : 0° to 50°C (32° to 122°F) Storage : -20° to 75°C (-4° to 167°F) |
| Humidity (non-condensing) | 95% RH |
| Mounting | Panel Mount |
No specifications available for this product.
Write Your Own Review
Downloads
