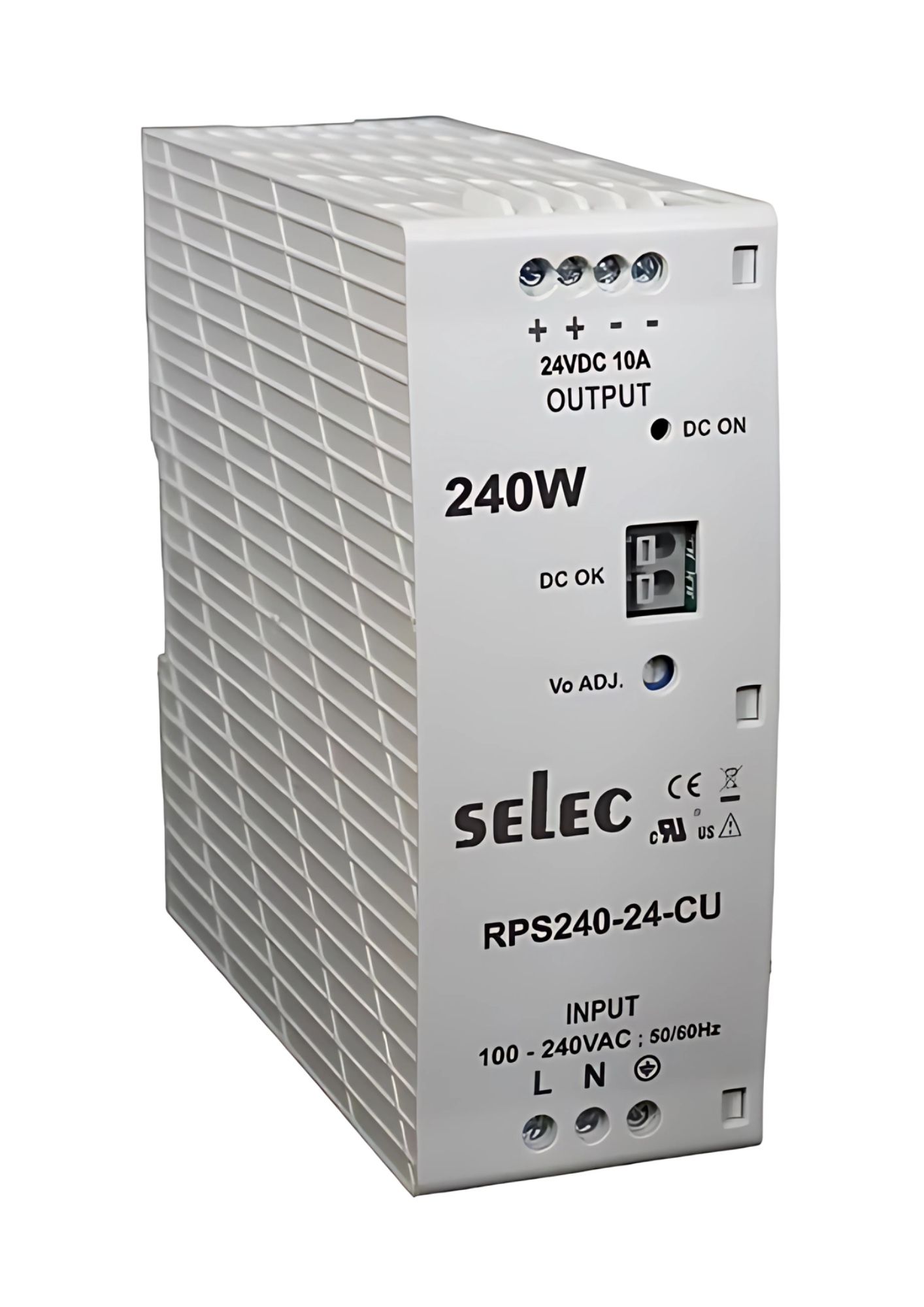

Selec RPS-240-24-CU, 240Watt 24V/10A Power Supply, DIN Rail Mount, Plastic Housing
In stock
SKU
RPS240-24-CU
Special Price
₹3,517.92
Regular Price
₹7,329.00
Check Delivery Options at your Area
FREE SHIPPING
Free Shipping by Surface Only*
SECURE PAYMENT
100% Secure Payment
| Input Voltage | 90 - 264 VAC (127 - 370 VDC) |
| Input Frequency | 50/60 Hz |
| Inrush Current | < 48 Amps; Measured at 264 VAC, 25°C Ambient, Cold start |
| Output Voltage/Current | 24V / 10A |
| Output Power | 240 W |
| Voltage Tolerance | ± 1 % |
| Line Regulation | < 1% of Vout |
| Load Regulation | ± 1 % |
| Turn On Time | < 1 sec @ 230 VAC & < 3 sec @ 115 VAC, Full load |
| Hold Up Time | ≥60ms at 230V AC & ≥15ms at 115V AC, Full load |
| Rise Time | < 100 ms |
| Overload Protection | > 110% of rated output current; Hiccup type; Autorecovery |
| Overvoltage Protection | Latched type; Input AC power to be recycled to recover the power supply |
| Output Short Circuit Protection | Hiccup mode when output is shorted; Autorecovery type |
| Operating Temperature | - 25°C to + 70°C; De-rate linearly above 50°C from 100 % load at 50°C to 50 % load at 70°C,- 25°C to 0°C start-up is guaranteed with specification deviation |
| Storage Temperature | - 40°C to + 85°C |
| Cooling | Natural convection cooled |
| Humidity | 5 to 95 % RH, Non condensing |
| Altitude | 2000 m |
| Dimension | 50 x 136 x 135 mm (W x H x D) |
| Weight | 645 gms |
| Mounting | 35 mm Din rail |
| Product Code | Description | Certification |
|---|---|---|
| RPS240-12-CU | 216W, 12V/18A DIN rail mounted Power Supply in Plastic Housing | CE,UL |
| RPS240-24-CU | 240W, 24V/10A DIN rail mounted Power Supply in Plastic Housing | CE,UL |
| RPS240-48-CU | 240W, 48V/5A DIN rail mounted Power Supply in Plastic Housing | CE,UL |
