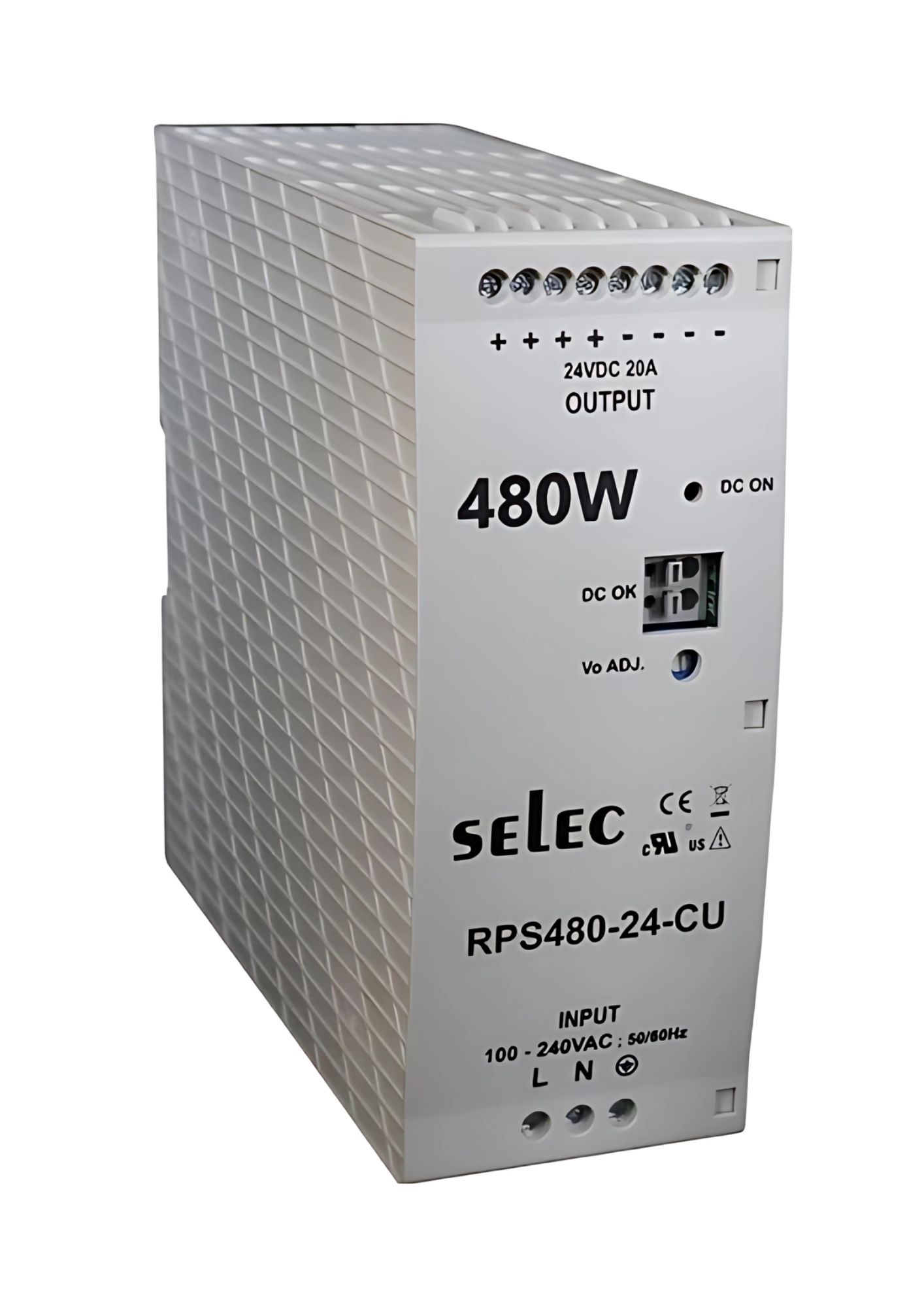

Selec RPS-480-24-CU, 480Watt 24V/20A Power Supply, Size 35mm, DIN Rail Mount, Plastic Housing
Selec RPS-480-24-CU, 480Watt 24V/20A Power Supply, Size 35mm, DIN Rail Mount, Plastic Housing

Selec RPS-480-24-CU, 480Watt 24V/20A Power Supply, Size 35mm, DIN Rail Mount, Plastic Housing

In stock
SKU
RPS480-24-CU
Special Price ₹5,757.60 Regular Price ₹11,995.00
(18% GST Extra)
Add to Wish List
  • Supports 90 - 264 VAC / 127 - 370 VDC
  • Power factor > 0.95 @ full load over entire input range
  • Protection against short circuit, overload, overvoltage & over temperature
  • Cooling by free air convection
  • UL 508 approved (E522848)
  • Efficiencies up to 93 %
  • DC OK Relay contact
Check Delivery Options at your Area

FREE SHIPPING

Free Shipping by Surface Only*

SECURE PAYMENT

100% Secure Payment

Input Voltage 90 - 264 VAC (127 - 370 VDC)
Input Frequency 50/60 Hz
Inrush Current < 48 Amps; Measured at 264 VAC, 25°C Ambient, Cold start
Output Voltage/Current 24V / 20A
Output Power 480 W
Voltage Tolerance ± 1 %
Line Regulation < 1% of Vout
Load Regulation ± 1 %
Turn On Time < 1 sec @ 230 VAC & < 3 sec @ 115 VAC, Full load
Hold Up Time ≥60ms at 230V AC & ≥15ms at 115V AC, Full load
Rise Time < 100 ms
Overload Protection > 110% of rated output current; Hiccup type; Autorecovery
Overvoltage Protection Latched type; Input AC power to be recycled to recover the power supply
Output Short Circuit Protection Hiccup mode when output is shorted; Autorecovery type
Operating Temperature - 25°C to + 70°C; De-rate linearly above 50°C from 100 % load at 50°C to 50 % load at 70°C,- 25°C to 0°C start-up is guaranteed with specification deviation
Storage Temperature - 40°C to + 85°C
Cooling Natural convection cooled
Humidity 5 to 95 % RH, Non condensing
Altitude 2000 m
Dimension 60 x 154 x 158.55 mm (W x H x D)
Weight 1050 gms
Mounting 35 mm Din rail
Product Code Description Certification
RPS480-24-CU 480W, 24V/20A DIN rail mounted Power Supply in Plastic Housing CE,UL
RPS480-48-CU 480W, 48V/10A DIN rail mounted Power Supply in Plastic Housing CE,UL
