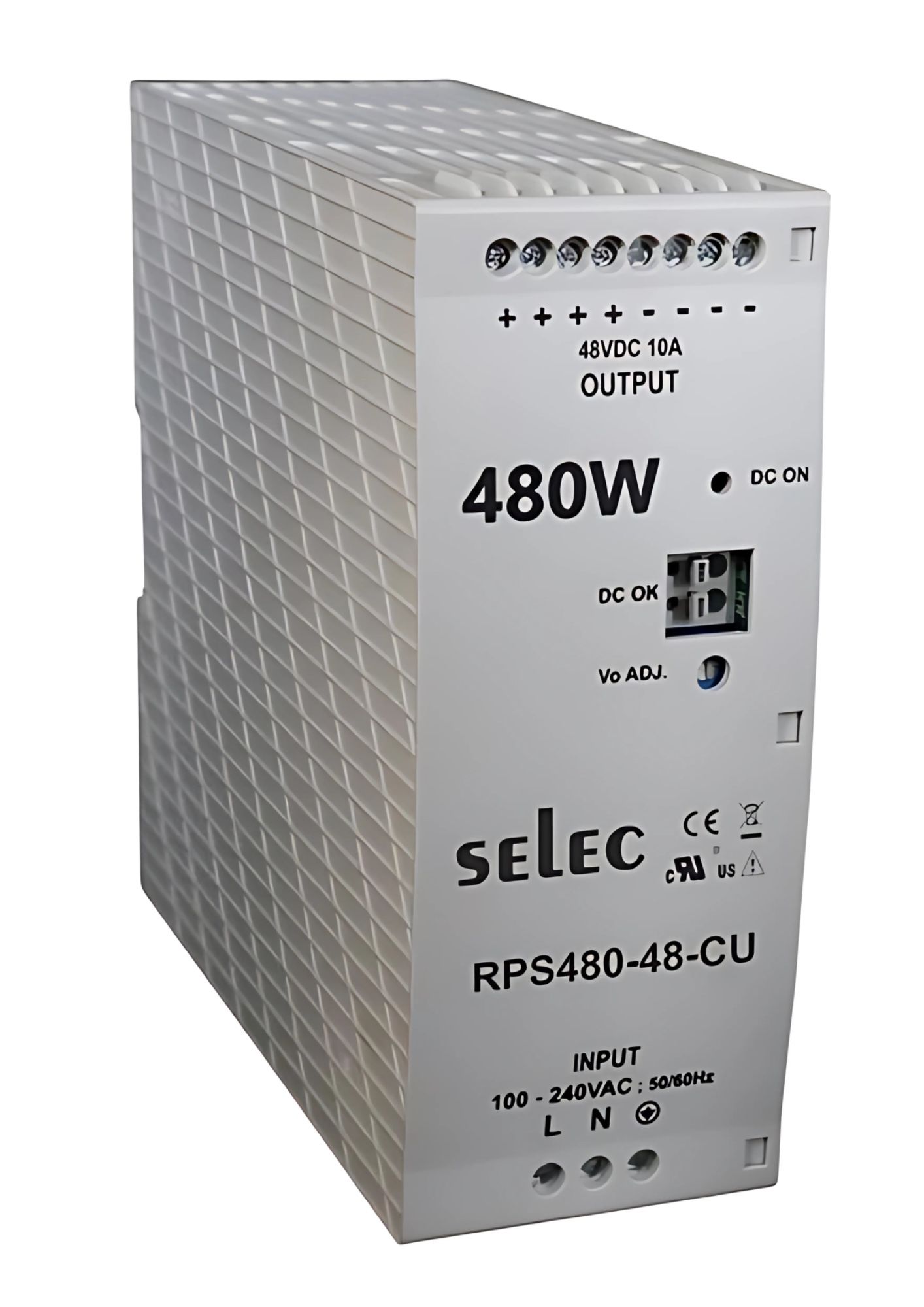

Selec RPS-480-48-CU, 480Watt 48V/10A Power Supply, Size 35mm, DIN Rail Mount, Plastic Housing
Selec RPS-480-48-CU, 480Watt 48V/10A Power Supply, Size 35mm, DIN Rail Mount, Plastic Housing

Selec RPS-480-48-CU, 480Watt 48V/10A Power Supply, Size 35mm, DIN Rail Mount, Plastic Housing

In stock
SKU
RPS480-48-CU
Special Price ₹6,334.56 Regular Price ₹13,197.00
(18% GST Extra)
Add to Wish List
  • Supports 90 - 264 VAC / 127 - 370 VDC
  • Power factor > 0.95 @ full load over entire input range
  • Protection against short circuit, overload, overvoltage & over temperature
  • Cooling by free air convection
  • UL 508 approved (E522848)
  • Efficiencies up to 93 %
  • DC OK Relay contact
Check Delivery Options at your Area

FREE SHIPPING

Free Shipping by Surface Only*

SECURE PAYMENT

100% Secure Payment

  • DC output Voltage, Current: 48V / 10A
  • Input Voltage: 90 - 264 VAC (127 - 370 VDC)
  • Input Frequency: 50/60 Hz
  • Inrush Current: < 48 Amps; Measured at 264 VAC, 25°C Ambient, Cold start
  • Output Power: 480 W
  • Voltage Tolerance: ± 1 %
  • Line Regulation: < 1% of Vout
  • Load Regulation: ± 1 %
  • Turn On Time: < 1 sec @ 230 VAC & < 3 sec @ 115 VAC, Full load
  • Hold Up Time: ≥60ms at 230V AC & ≥15ms at 115V AC, Full load
  • Rise Time: < 100 ms
  • Overload Protection: > 110% of rated output current; Hiccup type; Autorecovery
  • Overvoltage Protection: Latched type; Input AC power to be recycled to recover the power supply
  • Output Short Circuit Protection: Hiccup mode when output is shorted; Autorecovery type
  • Operating Temperature: - 25°C to + 70°C; De-rate linearly above 50°C from 100 % load at 50°C to 50 % load at 70°C,- 25°C to 0°C start-up is guaranteed with specification deviation
  • Storage Temperature: - 40°C to + 85°C
  • Cooling: Natural convection cooled
  • Humidity: 5 to 95 % RH, Non condensing
  • Altitude: 2000 m
  • Dimension: 60 x 154 x 158.55 mm (W x H x D)
  • Weight: 1050 gms
  • Mounting: 35 mm Din rail
Product Code Description Certification
RPS480-24-CU 480W, 24V/20A DIN rail mounted Power Supply in Plastic Housing CE,UL
RPS480-48-CU 480W, 48V/10A DIN rail mounted Power Supply in Plastic Housing CE,UL
