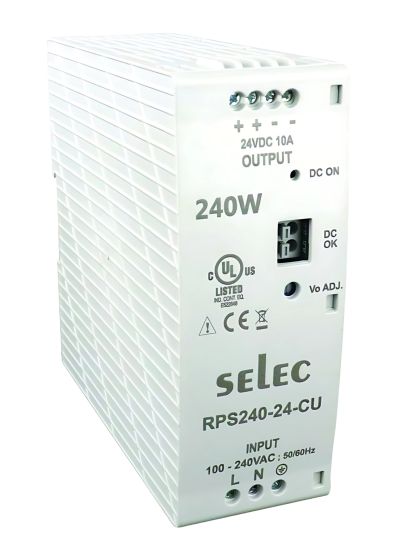

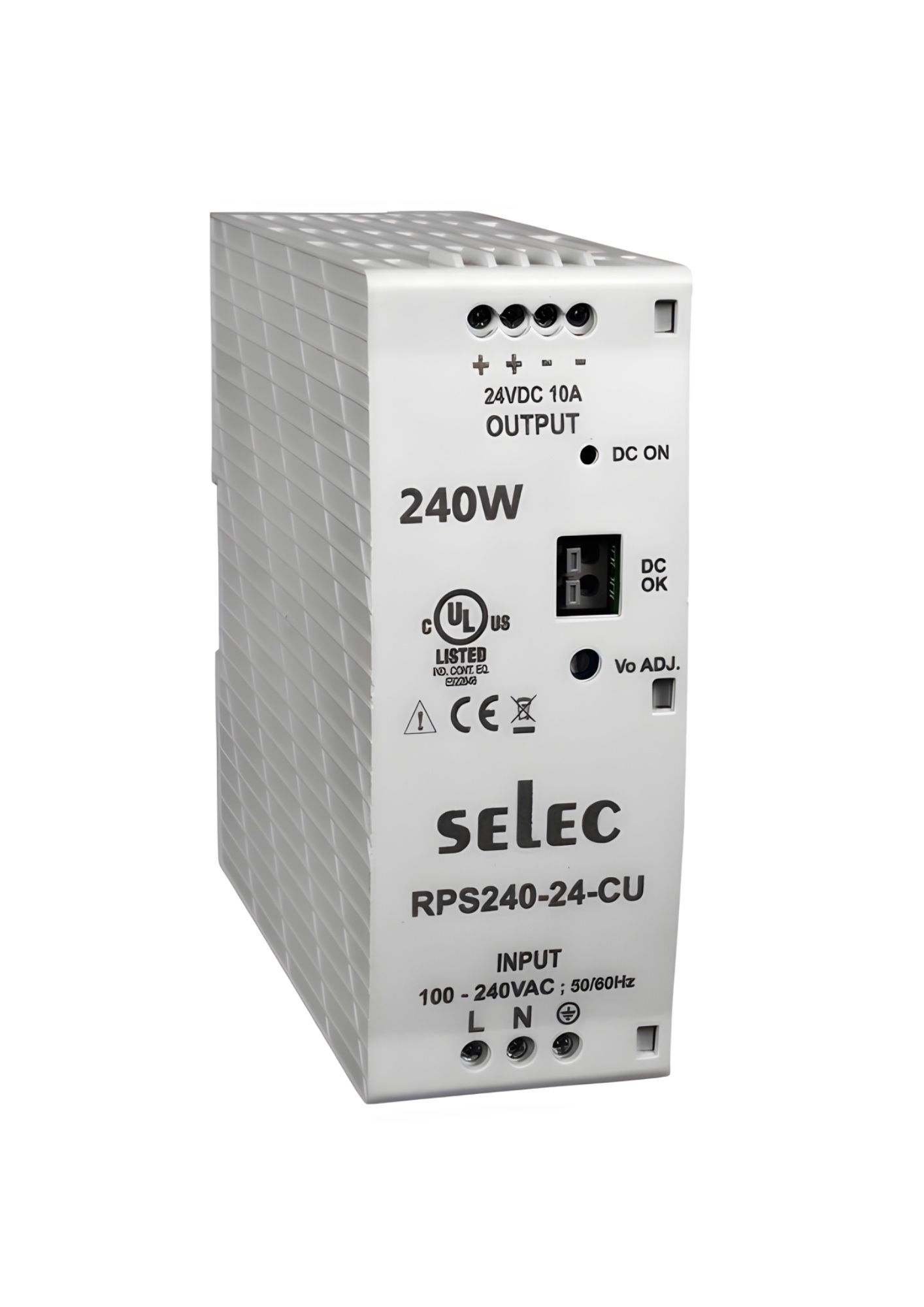

Selec RPS240-24-CE, 24V, 240W Power Supply, Din Rail Mount
In stock
SKU
RPS240-24-CE
Special Price
₹3,517.92
Regular Price
₹7,329.00
Check Delivery Options at your Area
FREE SHIPPING
Free Shipping by Surface Only*
SECURE PAYMENT
100% Secure Payment
| Datasheet | |
|---|---|
| Input Voltage | 90 - 264 VAC (127 - 370 VDC) |
| Input Frequency | 50/60 Hz |
| Inrush Current | < 48 Amps; Measured at 264 VAC, 25°C Ambient, Cold start |
| Output Voltage | 12V to 48V |
| Output Power | 240 W |
| Voltage Tolerance | ± 1 % |
| Line Regulation | < 1% of Vout |
| Load Regulation | ± 1 % |
| Turn On Time | < 1 sec @ 230 VAC & < 3 sec @ 115 VAC, Full load |
| Hold Up Time | ≥ 60ms at 230V AC & ≥ 15ms at 115V AC, Full load |
| Rise Time | < 100 ms |
| Overload Protection | > 110% of rated output current; Hiccup type; Autorecovery |
| Overvoltage Protection | Latched type; Input AC power to be recycled to recover the power supply |
| Output Short Circuit Protection | Hiccup mode when output is shorted; Autorecovery type |
| Operating Temperature | -25°C to +70°C; De-rate linearly above 50°C from 100% load at 50°C to 50% load at 70°C; -25°C to 0°C start-up is guaranteed with specification deviation |
| Storage Temperature | -40°C to +85°C |
| Cooling | Natural convection cooled |
| Humidity | 5 to 95% RH, Non condensing |
| Altitude | 2000 m |
| Dimension | 50 x 136 x 135 mm (W x H x D) |
| Mounting | 35 mm Din rail |
