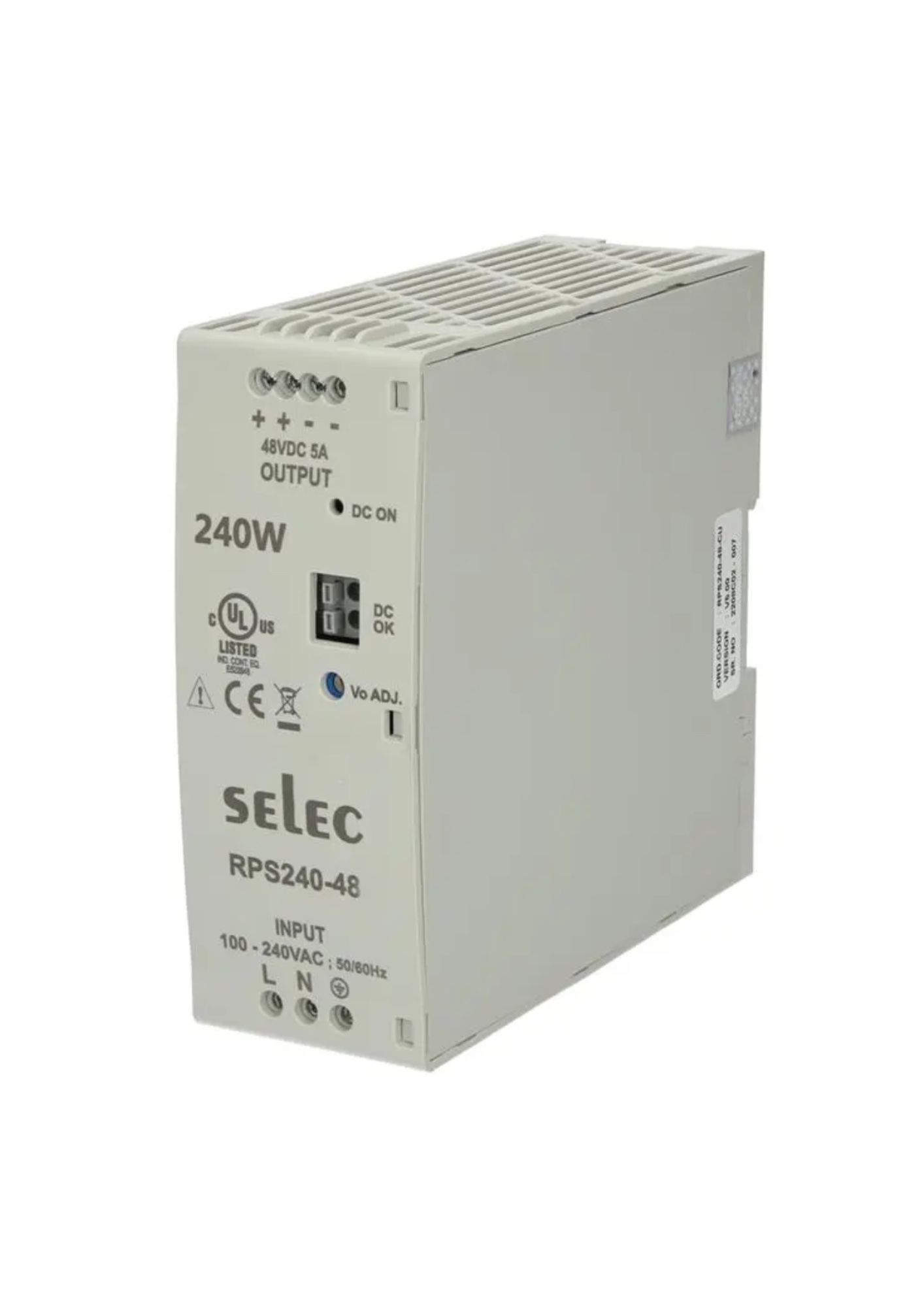

Selec RPS240-48-CE, 240W, 48V, Supports 90 - 264 VAC / 127 - 370 VDC, 35mm DIN Rail Mount
In stock
SKU
RPS240-48-CE
Special Price
₹3,870.72
Regular Price
₹8,064.00
Check Delivery Options at your Area
FREE SHIPPING
Free Shipping by Surface Only*
SECURE PAYMENT
100% Secure Payment
| Datasheet | |
|---|---|
| Nominal DC voltage | 48 V |
| Rated current | 5 A |
| Current range | 0 - 5 A |
| Rated power | 240 W |
| Ripple & noise (max) | < 1 % of Vout |
| Voltage adj. range | 48 to 56 V |
| Voltage tolerance | ± 1 % |
| Line regulation | ± 1 % |
| Load regulation | ± 1 % |
| Turn on time | < 2 sec; at full load |
| Hold up time | > 25 mS at 48 V & > 16 mS at 56 V @ 115 / 230 VAC, Full Load |
| Rise time | < 100 ms |
| Voltage range | 90 - 264 VAC / 127 - 370 VDC De-rate output power linearly below 100 VAC from 100% at 100 VAC to 90% at 90 VAC |
| Frequency range | 50 / 60 Hz |
| Power factor | > 0.95 @ full load over entire input range |
| Efficiency @ 230V AC | > 93 % |
| AC current | 2.4 A @ 115 VAC; 1.2 A @ 230 VAC |
| Inrush current | < 60 Amps; Measured at 264 VAC, 25°C Ambient, Cold start |
| Leakage current | < 1 mA; 264 VAC input |
| Overload protection | 110 % to 140 % of rated output current; Hiccup type; Autorecovery |
| Overvoltage protection | 60 VDC ± 1 VDC; Latched type; Input AC power to be recycled to recover |
| Output short circuit | Hiccup mode when output is shorted; Autorecovery type |
| Over temperature | Shuts down when PCB below PFC choke reaches 120°C (typ.); recovers automatically when temperature falls to 90°C (typ.) |
| DC OK signal | Contact closes @ 46.0V (typ.), opens @ 45.0V (typ.) Contact rating: 30 VDC 1 A; 60 VDC 0.5 A; 125 VAC 0.5 A; resistive load, min. current 1 mA |
| Operating temperature | -25°C to +70°C; De-rate linearly above 50°C from 100 % load at 50°C to 50 % load at 70°C Startup guaranteed from -25°C to 0°C with possible ripple deviation |
| Storage temperature | -40°C to +85°C |
| Cooling | Natural convection cooled |
| Humidity | 5 to 95 % RH, Non-condensing |
| Altitude | 2000 m |
| Vibration | 10 ~ 500 Hz, 2 G, 10 min./1 cycle, for 60 min. each along X, Y, Z axes |
| Dielectric withstand voltage | I/P to Earth: 2500 VAC I/P to O/P: 4000 VAC O/P to Earth: 1500 VAC O/P to DC-OK: 500 VAC |
| Dimension (W x H x D) | 50 x 136 x 135 mm |
| Mounting | 35 mm DIN rail |
