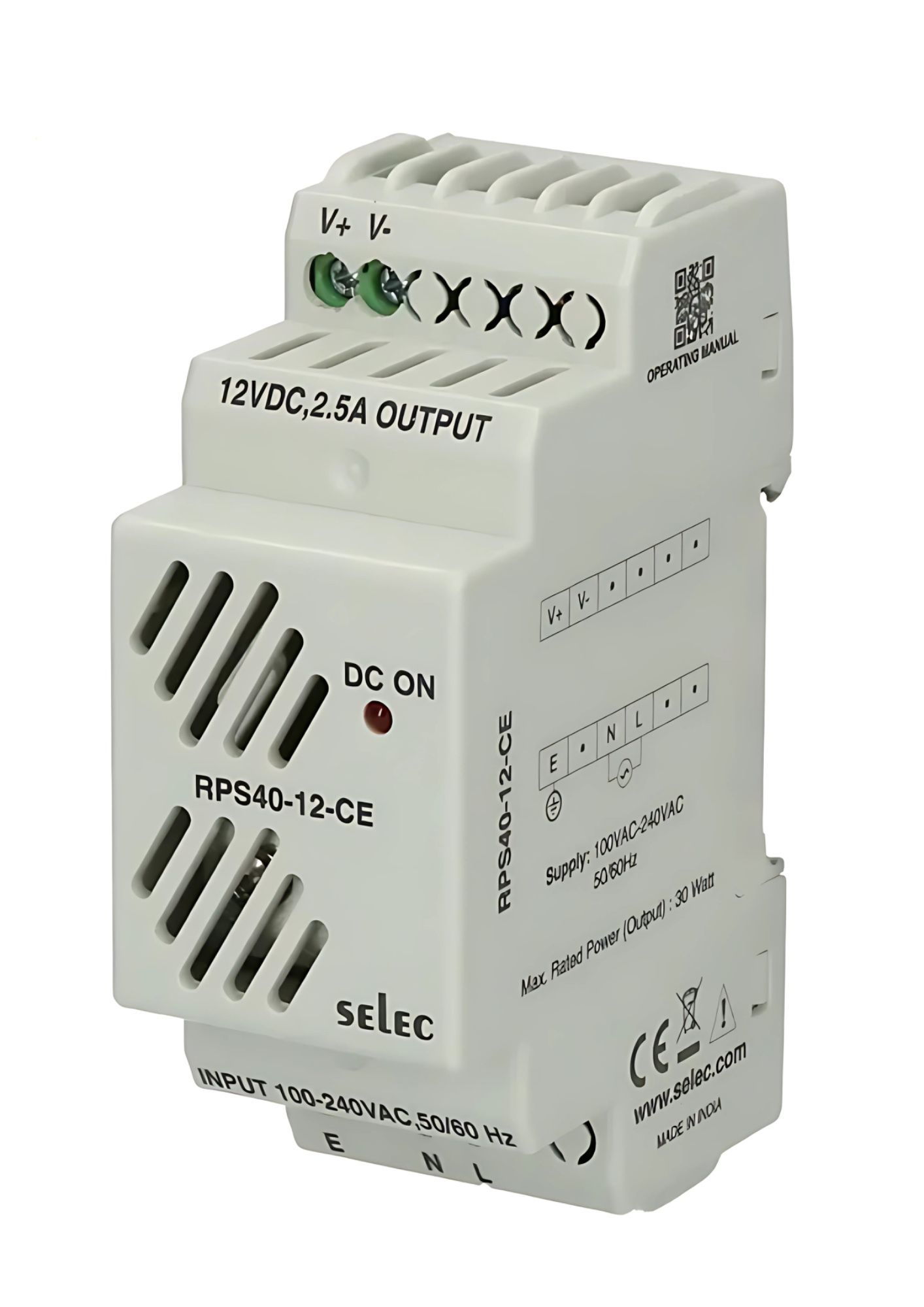

Selec RPS40-12-CE, 40Watt 12Volt/ 2.5A Current Power Supply, DIN Rail Mount
In stock
SKU
RPS40-12-CE
Special Price
₹962.40
Regular Price
₹2,005.00
Check Delivery Options at your Area
FREE SHIPPING
Free Shipping by Surface Only*
SECURE PAYMENT
100% Secure Payment
- DC output Voltage, Current: 12V / 2.5A
- Input Voltage: 90 - 264 VAC (127 - 370 VDC)
- Input Frequency: 50/60 Hz
- Inrush Current:< 60 Amps; Measured at 264 VAC, 25°C Ambient, Cold start
- Output Power: 40 W
- Voltage Tolerance: ± 1 %
- Line Regulation: ± 1 %
- Load Regulation: ± 1 %
- Turn On Time: < 1 sec @ 230 VAC & < 3 sec @ 115 VAC, Full load
- Hold Up Time: ‚≥ 25 ms @ 230 VAC & ≥ 6 ms @ 115 VAC, Full load
- Rise Time: < 100 ms
- Overload Protection: > 110 % of rated output current; Hiccup mode; Autorecovery type
- Overtemperature Protection: Power supply shuts down when the temperature of PCB below main transformer reaches typically 120°C; Turns on only after the temperature falls below 90°C typically and AC power is recycled thereafter
- Overvoltage Protection: Hiccup mode when output over voltage occur; Autorecovery type
- Output Short Circuit Protection: Hiccup mode when output is shorted; Autorecovery type.
- Operating Temperature: - 25°C to + 70°C; De-rate linearly above 50°C from 100 % load at 50°C to 50 % load at 70°C. -25°C to 0°C startup is guaranteed with specification deviation(Output ripple can be more than 10 % of the output voltage.)
- Storage Temperature: - 40°C to + 85°C
- Cooling: Natural convection cooled
- Humidity: 5 to 95 % RH, Non condensing
- Altitude: 2000 m
- Dimension: 35 x 90 x 60 mm ( W x H x D )
- Weight: < 150 gms
- Mounting: 35 mm DIN Rail
| Product Code | Description | Certification |
|---|---|---|
| RPS40-12-CE | 30 W, 12 V / 2.5 A DIN rail mounted Power supply in plastic Housing | CE |
| RPS40-15-CE | 40 W, 15 V / 2.67 A DIN rail mounted Power supply in plastic Housing | CE |
| RPS40-24-CE | 40 W, 24 V/ 1.67 A DIN rail mounted Power supply in plastic Housing | CE |
| RPS40-48-CE | 40 W, 48 V / 0.83 A DIN rail mounted Power supply in plastic Housing | CE |
