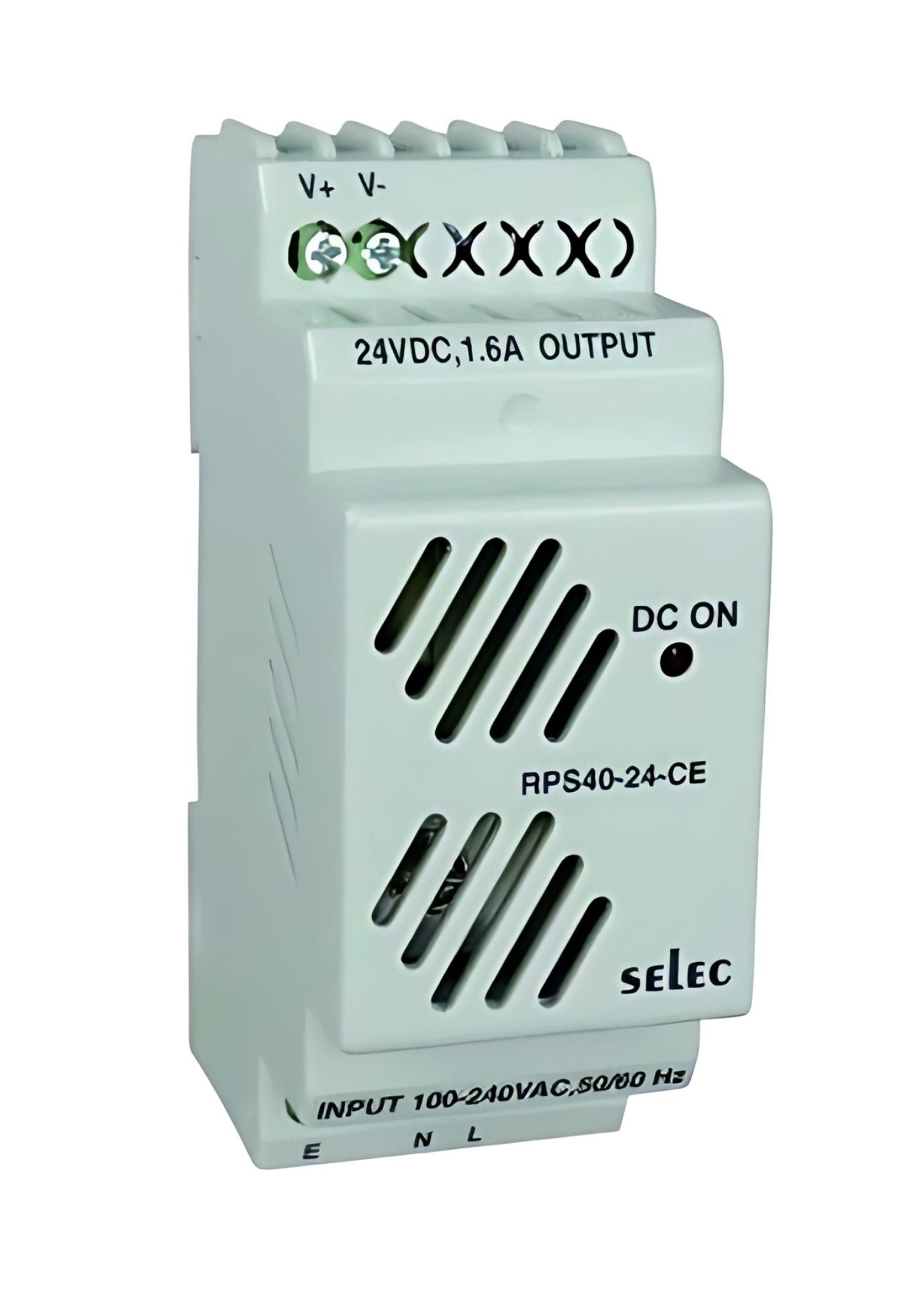

Selec RPS40-24-CE, 40Watt 24V/1.67A Power Supply, DIN Rail Mount
In stock
SKU
RPS40-24-CE
Special Price
₹930.72
Regular Price
₹1,939.00
Check Delivery Options at your Area
FREE SHIPPING
Free Shipping by Surface Only*
SECURE PAYMENT
100% Secure Payment
| Input Voltage | 90 - 264 VAC (127 - 370 VDC) |
| Input Frequency | 50/60 Hz |
| Inrush Current | < 60 Amps; Measured at 264 VAC, 25°C Ambient, Cold start |
| DC output Voltage, Current | 24 V / 1.67 A |
| Output Power | 40 W |
| Voltage Tolerance | ± 1 % |
| Line Regulation | ± 1 % |
| Load Regulation | ± 1 % |
| Turn On Time | < 1 sec @ 230 VAC & < 3 sec @ 115 VAC, Full load |
| Hold Up Time | ≥ 25 ms @ 230 VAC & ≥ 6 ms @ 115 VAC, Full load |
| Rise Time | < 100 ms |
| Overload Protection | > 110 % of rated output current; Hiccup mode; Autorecovery type |
| Overtemperature Protection | Power supply shuts down when the temperature of PCB below main transformer reaches typically 120°C; Turns on only after the temperature falls below 90°C typically and AC power is recycled thereafter |
| Overvoltage Protection | Hiccup mode when output over voltage occur; Autorecovery type |
| Output Short Circuit Protection | Hiccup mode when output is shorted; Autorecovery type. |
| Operating Temperature | - 25°C to + 70°C; De-rate linearly above 50°C from 100 % load at 50°C to 50 % load at 70°C. -25°C to 0°C startup is guaranteed with specification deviation(Output ripple can be more than 10 % of the output voltage.) |
| Storage Temperature | - 40°C to + 85°C |
| Cooling | Natural convection cooled |
| Humidity | 5 to 95 % RH, Non condensing |
| Altitude | 2000 m |
| Dimension | 35 x 90 x 60 mm ( W x H x D ) |
| Weight | < 150 gms |
| < 150 gms | 35 mm DIN Rail |
| Product Code | Description | Certification |
|---|---|---|
| RPS40-12-CE | 30 W, 12 V / 2.5 A DIN rail mounted Power supply in plastic Housing | CE |
| RPS40-15-CE | 40 W, 15 V / 2.67 A DIN rail mounted Power supply in plastic Housing | CE |
| RPS40-24-CE | 40 W, 24 V/ 1.67 A DIN rail mounted Power supply in plastic Housing | CE |
| RPS40-48-CE | 40 W, 48 V / 0.83 A DIN rail mounted Power supply in plastic Housing | CE |
