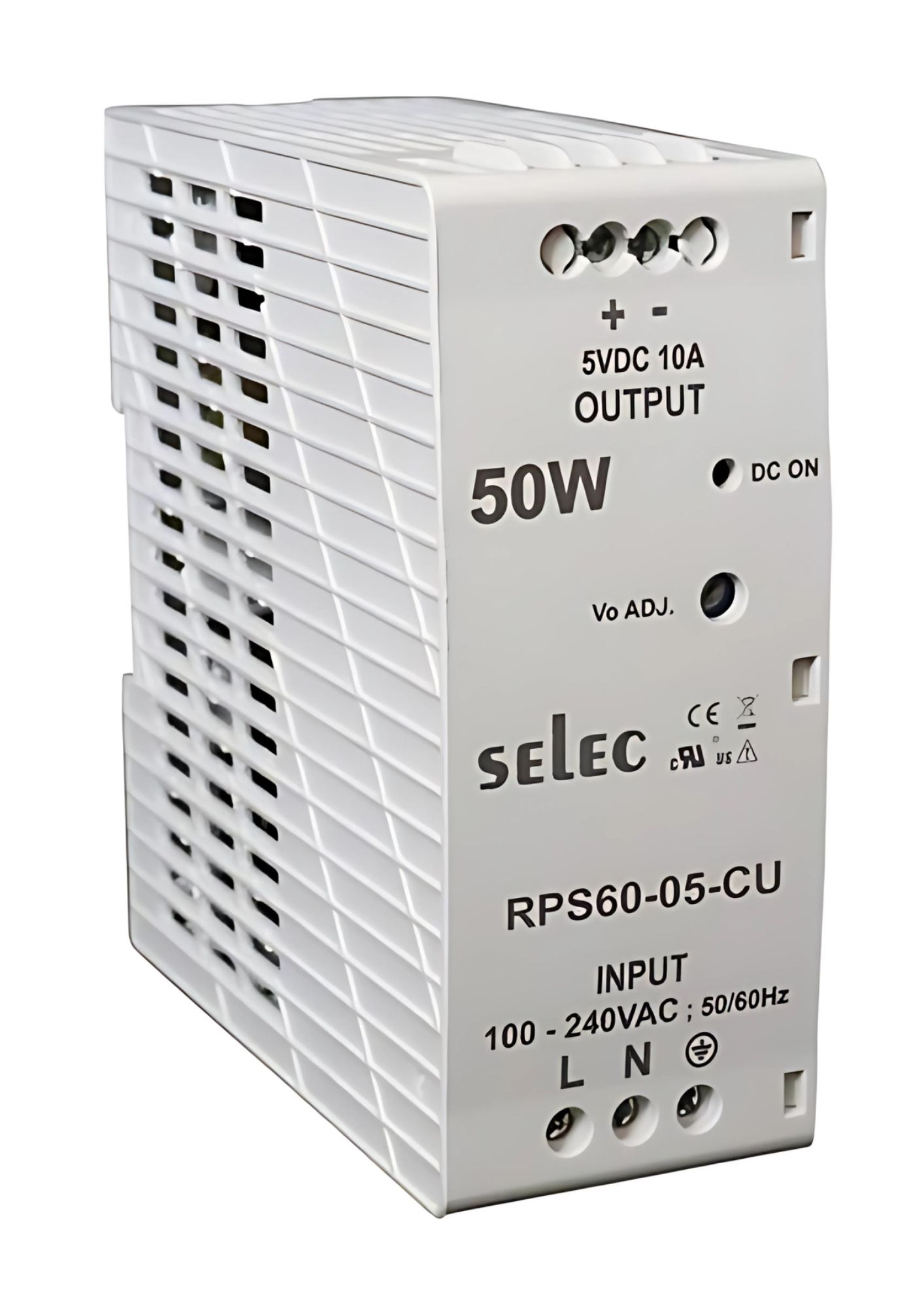

Selec RPS60-05, 60Watt 05V/10A Current Power Supply, DIN Rail Mount, Plastic Housing
In stock
SKU
RPS60-05
Special Price
₹991.68
Regular Price
₹2,066.00
Check Delivery Options at your Area
FREE SHIPPING
Free Shipping by Surface Only*
SECURE PAYMENT
100% Secure Payment
- DC output Voltage, Current: 5V / 10A
- Input Voltage: 90 - 264 VAC (127 - 370 VDC)
- Input Frequency: 50/60 Hz
- Inrush Current: < 48 Amps; Measured at 264 VAC, 25°C Ambient, Cold start
- Output Power: 60 W
- Voltage Tolerance: ± 1 %
- Line Regulation: < 1% of Vout
- Load Regulation: ± 1 %
- Turn On Time: < 1 sec @ 230 VAC & < 3 sec @ 115 VAC, Full load
- Hold Up Time: ≥60ms at 230V AC & ≥15ms at 115V AC, Full load
- Rise Time: < 100 ms
- Overload Protection: > 110% of rated output current; Hiccup type; Autorecovery
- Overvoltage Protection: Latched type; Input AC power to be recycled to recover the power supply
- Output Short Circuit Protection: Hiccup mode when output is shorted; Autorecovery type
- Operating Temperature: - 25°C to + 70°C; De-rate linearly above 50°C from 100 % load at 50°C to 50 % load at 70°C,- 25°C to 0°C start-up is guaranteed with specification deviation
- Storage Temperature:- 40°C to + 85°C
- Cooling: Natural convection cooled
- Humidity: 5 to 95 % RH, Non condensing
- Altitude: 2000 m
- Dimension: 43 x 109.8 x 102.7 mm (W x H x D)
- Weight: 285 gms
- Mounting: 35 mm Din rail
| Product Code | Description | Certification |
|---|---|---|
| RPS60-05 | 50W, 05V/10A DIN rail mounted Power Supply in Plastic Housing | -- |
| RPS60-05-CU | 50 W, 05V/10A DIN rail mounted Power Supply in Plastic Housing | CE,UL |
| RPS60-12 | 60W, 12V/5A DIN rail mounted Power Supply in Plastic Housing | -- |
| RPS60-12-CU | 60W, 12V/5A DIN rail mounted Power Supply in Plastic Housing | CE,UL |
| RPS60-15 | 60W, 15V/4A DIN rail mounted Power Supply in Plastic Housing | -- |
| RPS60-24-CU | 60W, 24V/2.5A DIN rail mounted Power Supply in Plastic Housing | CE,UL |
| RPS60-48 | 60W, 48V/1.25A DIN rail mounted Power Supply in Plastic Housing | -- |
| RPS60-48-CU | 60W, 48V/1.25A DIN rail mounted Power Supply in Plastic Housing | CE,UL |
| RPS60-24 | 60W, 24V/2.5A DIN rail mounted Power Supply in Plastic Housing | - |
