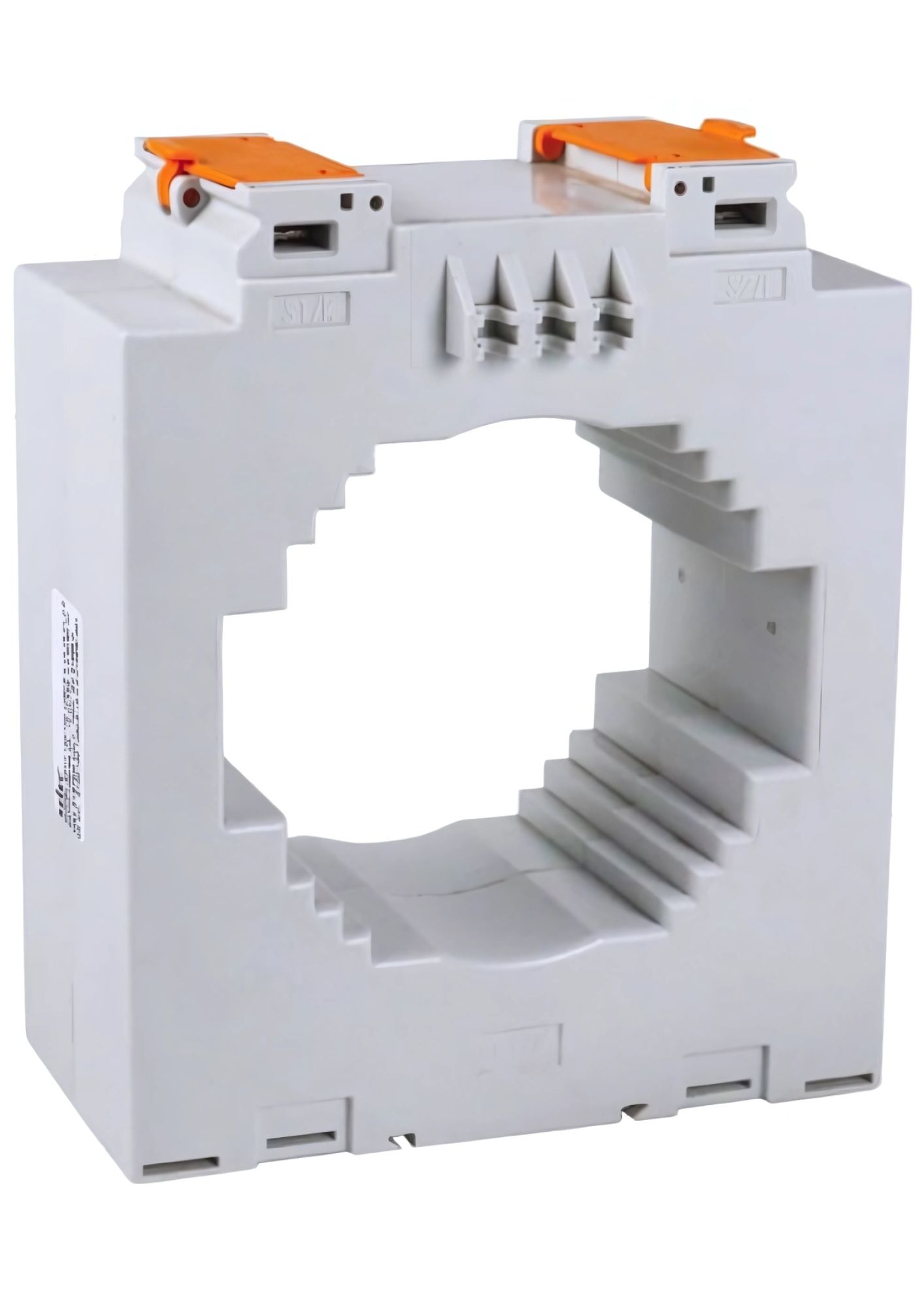

Selec SPCT-140-100-4000-5A-VA15-CL0.5-CE, Busbar Type Current Transformer, Outer Diameter 140mm, Inner Diameter 100mm, Ratio 4000/5
In stock
SKU
SPCT-140-100-4000-5A-VA15-CL0.5
Special Price
₹1,248.48
Regular Price
₹2,601.00
Check Delivery Options at your Area
FREE SHIPPING
Free Shipping by Surface Only*
SECURE PAYMENT
100% Secure Payment
- Features: 1. Use with different busbar 2. Accuracy : Class 5
- Rated Primary Rating: 4000A
- Rated Secondary Output: 5A
- Rated Burden (VA): 15VA
- Accuracy: 5
- Operating Frequency: 50/60Hz
- Maximum Operating Voltage: 720V Maximum
- Mounting: Panel Mount / DIN rail mount
- Certification: CE, UL
- Applicable Standard: IEC 61869-2
| Product Code | WIRE APERTURE In mm | CURRENT RATIO | BURDEN IN VA | ACCURACY CLASS |
|---|---|---|---|---|
| SPCT-50/30-60/5A-VA1-CL5-CE | 30x10 | 60 / 5A | 1 | 5 |
| SPCT-50/30-75/5A-VA1-CL1-CE | 30x10 | 75 / 5A | 1 | 1 |
| SPCT-50/30-80/5A-VA1-CL1-CE | 30x10 | 80 / 5A | 1 | 1 |
| SPCT-50/30-100/5A-VA1-CL1-CE | 30x10 | 100 / 5A | 1 | 1 |
| SPCT-50/30-125/5A-VA1.25-CL1-CE | 30x10 | 125 / 5A | 1.25 | 1 |
| SPCT-50/30-160/5A-VA1.5-CL1-CE | 30x10 | 160 / 5A | 1.5 | 1 |
| SPCT-50/30-200/5A-VA3-CL1-CE | 30x10 | 200 / 5A | 3 | 1 |
| SPCT-50/30-250/5A-VA3-CL1-CE | 30x10 | 250 / 5A | 3 | 1 |
| SPCT-50/30-400/5A-VA5-CL1-CE | 30x10 | 400 / 5A | 5 | 1 |
| SPCT-62/22-30/5A-VA1-CL5-CE | DIA 22 | 30 / 5A | 1 | 5 |
| SPCT-62/30-50/5A-VA1-CL3-CE | 30x10 | 50 / 5A | 1 | 3 |
| SPCT-62/30-50/5A-VA1.5-CL3-CE | 30x10 | 50 / 5A | 1.5 | 3 |
| SPCT-62/30-75/5A-VA1-CL3-CE | 30x10 | 75 / 5A | 1 | 3 |
| SPCT-62/30-75/5A-VA3-CL3-CE | 30x10 | 75 / 5A | 3 | 3 |
| SPCT-62/30-100/5A-VA1-CL1-CE | 30x10 | 100 / 5A | 1 | 1 |
| SPCT-62/40-100/5A-VA1-CL1-CE | 40x10 | 100 / 5A | 1 | 1 |
| SPCT-62/30-100/5A-VA3-CL1-CE | 30x10 | 100 / 5A | 3 | 1 |
| SPCT-62/40-125/5A-VA1-CL1-CE | 40x10 | 125 / 5A | 1 | 1 |
| SPCT-62/40-150/5A-VA1.5-CL1-CE | 40x10 | 150 / 5A | 1.5 | 1 |
| SPCT-62/40-150/5A-VA3-CL1-CE | 40x10 | 150 / 5A | 3 | 1 |
| SPCT-62/40-160/5A-VA1.5-CL1-CE | 40x10 | 160 / 5A | 1.5 | 1 |
| SPCT-62/40-200/5A-VA 2.5-CL0.5-CE | 40x10 | 200 / 5A | 2.5 | 0.5 |
| SPCT-62/40-200/5A-VA3-CL1-CE | 40x10 | 200 / 5A | 3 | 1 |
| SPCT-62/40-250/5A-VA 2.5-CL0.5-CE | 40x10 | 250 / 5A | 2.5 | 0.5 |
| SPCT-62/40-250/5A-VA3-CL1-CE | 40x10 | 250 / 5A | 3 | 1 |
| SPCT-62/40-300/5A-VA3-CL0.5-CE | 40x10 | 300 / 5A | 3 | 0.5 |
| SPCT-62/40-400/5A-VA3.75-CL0.5-CE | 40x10 | 400 / 5A | 3.75 | 0.5 |
| SPCT-62/40-400/5A-VA5-CL1-CE | 40x10 | 400 / 5A | 5 | 1 |
| SPCT-100/60-500/5A-VA5-CL1-CE | 60x12 | 500 / 5A | 5 | 1 |
| SPCT-100/60-600/5A-VA5-CL0.5-CE | 60x12 | 600 / 5A | 5 | 0.5 |
| SPCT-100/60-600/5A-VA-7.5-CL1-CE | 60x12 | 600 / 5A | 7.5 | 1 |
| SPCT-100/60-800/5A-VA10 CL0.5-CE | 60x12 | 800 / 5A | 10 | 0.5 |
| SPCT-100/60-1000/5A-VA15-CL0.5-CE | 60x12 | 1000 / 5A | 15 | 0.5 |
| SPCT-100/60-1200/5A-VA15-CL0.5-CE | 60x12 | 1200 / 5A | 15 | 0.5 |
| SPCT-140/100-800/5A-VA15-CL0.5-CE | 100x30 | 800 / 5A | 15 | 0.5 |
| SPCT-140/100-1000/5A-VA15-CL0.5-CE | 100x30 | 1000 / 5A | 15 | 0.5 |
| SPCT-140/100-1200/5A-VA15-CL0.5-CE | 100x30 | 1200 / 5A | 15 | 0.5 |
| SPCT-140/100-1250/5A-VA15-CL0.5-CE | 100x30 | 1250 / 5A | 15 | 0.5 |
| SPCT-140/100-1500/5A-VA15-CL0.5-CE | 100x30 | 1500 / 5A | 15 | 0.5 |
| SPCT-140/100-1600/5A-VA15-CL0.5-CE | 100x30 | 1600 / 5A | 15 | 0.5 |
| SPCT-140/100-2000/5A-VA15-CL0.5-CE | 100x30 | 2000 / 5A | 15 | 0.5 |
| SPCT-140/100-2500/5A-VA15-CL0.5-CE | 100x30 | 2500 / 5A | 15 | 0.5 |
| SPCT-140/100-3000/5A-VA15-CL0.5-CE | 100x30 | 3000 / 5A | 15 | 0.5 |
| SPCT-140/100-3500/5A-VA15-CL0.5 | 100x30 | 3500 / 5A | 15 | 0.5 |
| SPCT-140/100-4000/5A-VA15-CL0.5 | 100x30 | 4000 / 5A | 15 | 0.5 |
