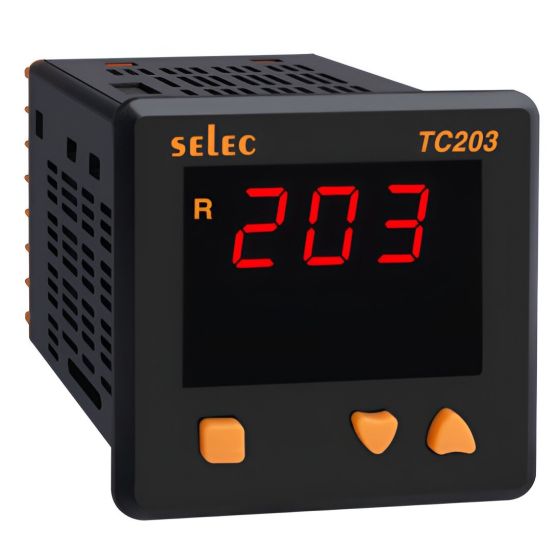

Selec TC203AX, 3 Digit Single Display Digital Temperature Controller, Relay/SSR Output, Size 72x72mm, Panel Mount
Selec TC203AX, 3 Digit Single Display Digital Temperature Controller, Relay/SSR Output, Size 72x72mm, Panel Mount

Selec TC203AX, 3 Digit Single Display Digital Temperature Controller, Relay/SSR Output, Size 72x72mm, Panel Mount

In stock
SKU
TC203AX
Special Price ₹1,224.00 Regular Price ₹2,550.00
(18% GST Extra)
Add to Wish List
  • 3 digit single display temperature controller
  • (TC: J, K, T, R, S/ RTD: PT100) sensor input
  • ON-OFF/Auto-tune PID control
  • Single set point
  • 10A Relay / 12V SSR control output
  • 72 mm x 72 mm size
  • Panel mount
  • 90 to 270V AC/DC supply voltage
Check Delivery Options at your Area

FREE SHIPPING

Free Shipping by Surface Only*

SECURE PAYMENT

100% Secure Payment

  • Display Type: 7 Segment LED, Single Display
  • Display Configuration: 3 Digits
  • Type of Input: Thermocouple (J,K,T,R,S) / RTD (PT100)
  • Resolution: Fixed 1°
  • Accuracy: For TC (J, K, T) inputs: (0.25% of F.S. ± 1°) For R & S inputs: (0.5% of F.S. ±2) (20min of warm up time) For RTD inputs: (0.1% of F.S ±1)
  • Control Output: RELAY or SSR.
  • Control mode: Auto Tune PID / ON-OFF
  • Supply Voltage: 90 to 270V AC/DC
  • Size: 72 x 72mm
  • Mounting Type: Panel Mount
