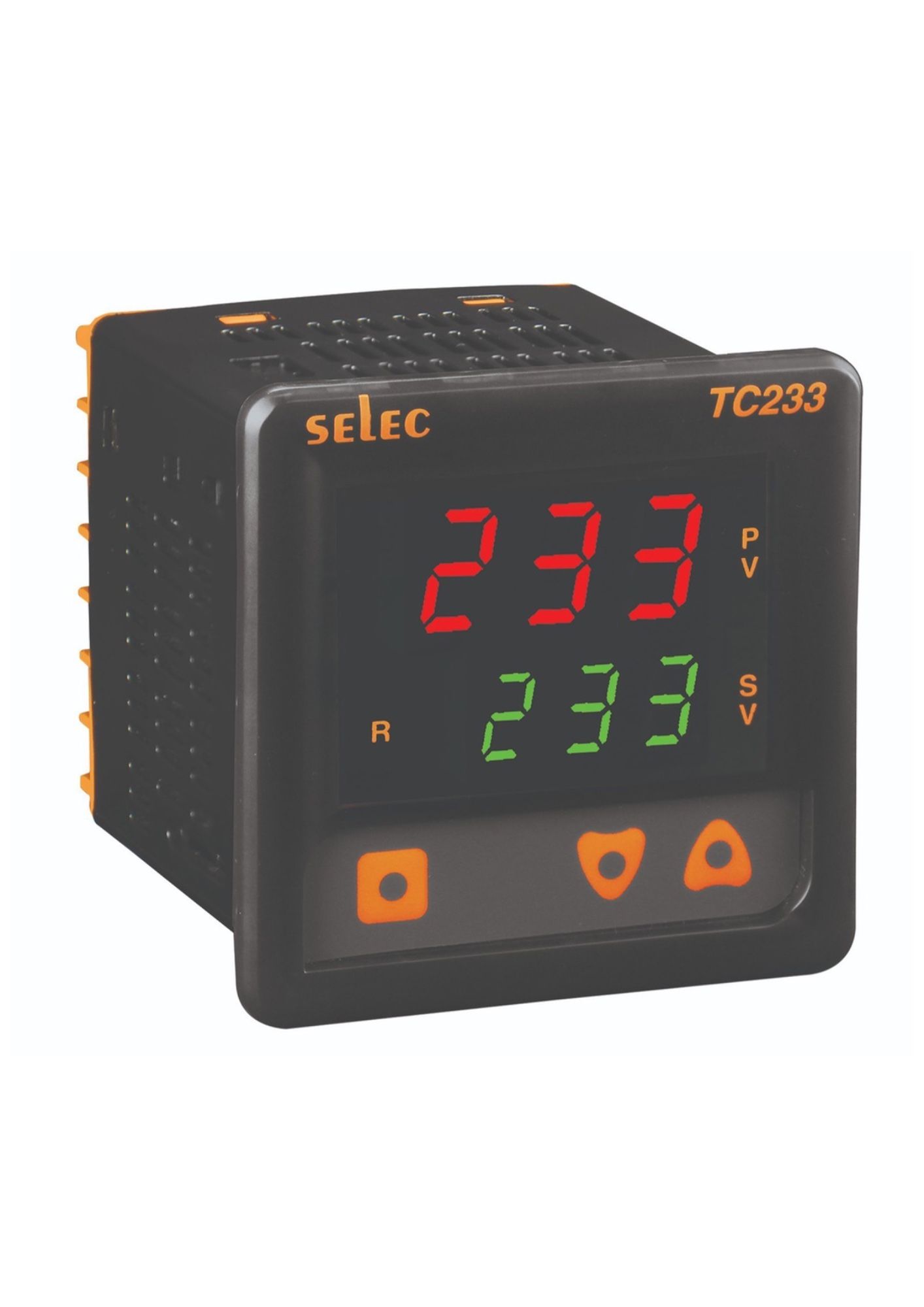

Selec TC233AX-24V, 3+3 Digits 7 Segment Display, 72x72mm, Panel Mount
In stock
SKU
TC233AX-24V
Special Price
₹2,074.56
Regular Price
₹4,322.00
Check Delivery Options at your Area
FREE SHIPPING
Free Shipping by Surface Only*
SECURE PAYMENT
100% Secure Payment
| Datasheet | |
|---|---|
| Input Signal | Thermocouple (J, K, T, R, S) / RTD (Pt100) |
| Sampling Time | 250 ms |
| Input Filter (FTC) | 0.2 to 10.0 sec |
| Resolution | Fixed 1° resolution |
| Temperature Unit | °C / °F selectable |
| Indication Accuracy |
For TC inputs: 0.25% of FS ±1° For R & S inputs: 0.5% of FS ±2° (20 min warm-up for TC) For RTD inputs: 0.1% of FS ±1° |
| Control Method |
1) PID control with auto tuning 2) ON-OFF control |
| Proportional Band (P) | 1 to 400° |
| Integral Time (I) | 0.0 to 99.9 min |
| Derivative Time (D) | 0 to 999 sec |
| Cycle Time | 0.1 to 99.9 sec |
| Hysteresis Width | 0.1 to 99.9° |
| Manual Reset Value | -19.9 to 19.9° |
| Control Output |
Relay or SSR user selectable Relay contact (SPDT): 10 A @ 250V AC / 30V DC, resistive SSR Drive Output (Voltage Pulse): 12V DC, 50 mA |
| Supply Voltage | 85 to 270V AC/DC (AC: 50 or 60 Hz) Optional: 24V AC/DC |
| Power Consumption | 5 VA max @ 230V AC |
| Operating Temperature | 0 to 50°C |
| Storage Temperature | -20 to 75°C |
| Humidity (non-condensing) | 95% RH |
