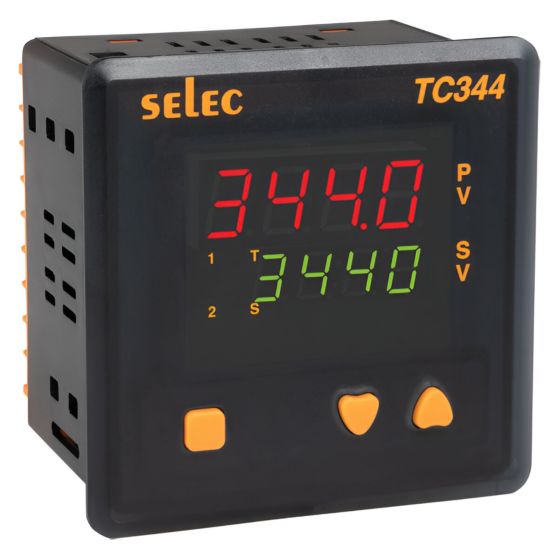

Selec TC344AX, 4+4 Digit Dual Display Digital Temperature Controller, Relay/SSR and Relay Output, Size 96x96mm, Panel Mount
Selec TC344AX, 4+4 Digit Dual Display Digital Temperature Controller, Relay/SSR and Relay Output, Size 96x96mm, Panel Mount

Selec TC344AX, 4+4 Digit Dual Display Digital Temperature Controller, Relay/SSR and Relay Output, Size 96x96mm, Panel Mount

In stock
SKU
TC344AX
Special Price ₹1,698.24 Regular Price ₹3,538.00
(18% GST Extra)
Add to Wish List
  • 4 digit Dual display temperature controller
  • (TC: J, K, T, R, S/ RTD: PT100) sensor input
  • ON-OFF/Auto-tune PID control
  • Single set point
  • 5A Relay/ 12V SSR control output
  • Auxiliary 5A Relay output
  • 96 mm x 96 mm size
  • Heat-Cool PID and Dwell timer functions
  • Panel mount
  • 90 to 270V AC/DC supply voltage
Check Delivery Options at your Area

FREE SHIPPING

Free Shipping by Surface Only*

SECURE PAYMENT

100% Secure Payment

  • Display Type: 7 Segment LED Dual Display
  • Display Configuration: 4 + 4 Digits
  • Type of Input: Thermocouple (J,K,T,R,S) / RTD (PT100)
  • Resolution: 0.1/1° for TC/RTD , (fixed 1° for R and S TC)
  • Accuracy: For TC (J, K, T) inputs: (0.25% of F.S. ± 1°) For R & S inputs: (0.5% of F.S. ±2) (20min of warm up time) For RTD inputs: (0.1% of F.S ±1)
  • Control Output: RELAY or SSR.
  • Auxiliary Output: RELAY
  • Control Mode: Auto Tune PID / ON-OFF
  • Feature: Heat Cool PID , Dwell Timer
  • Supply Voltage: 90 to 270V AC/DC
  • Size: 96 x 96mm
  • Mounting Type: Panel Mount
