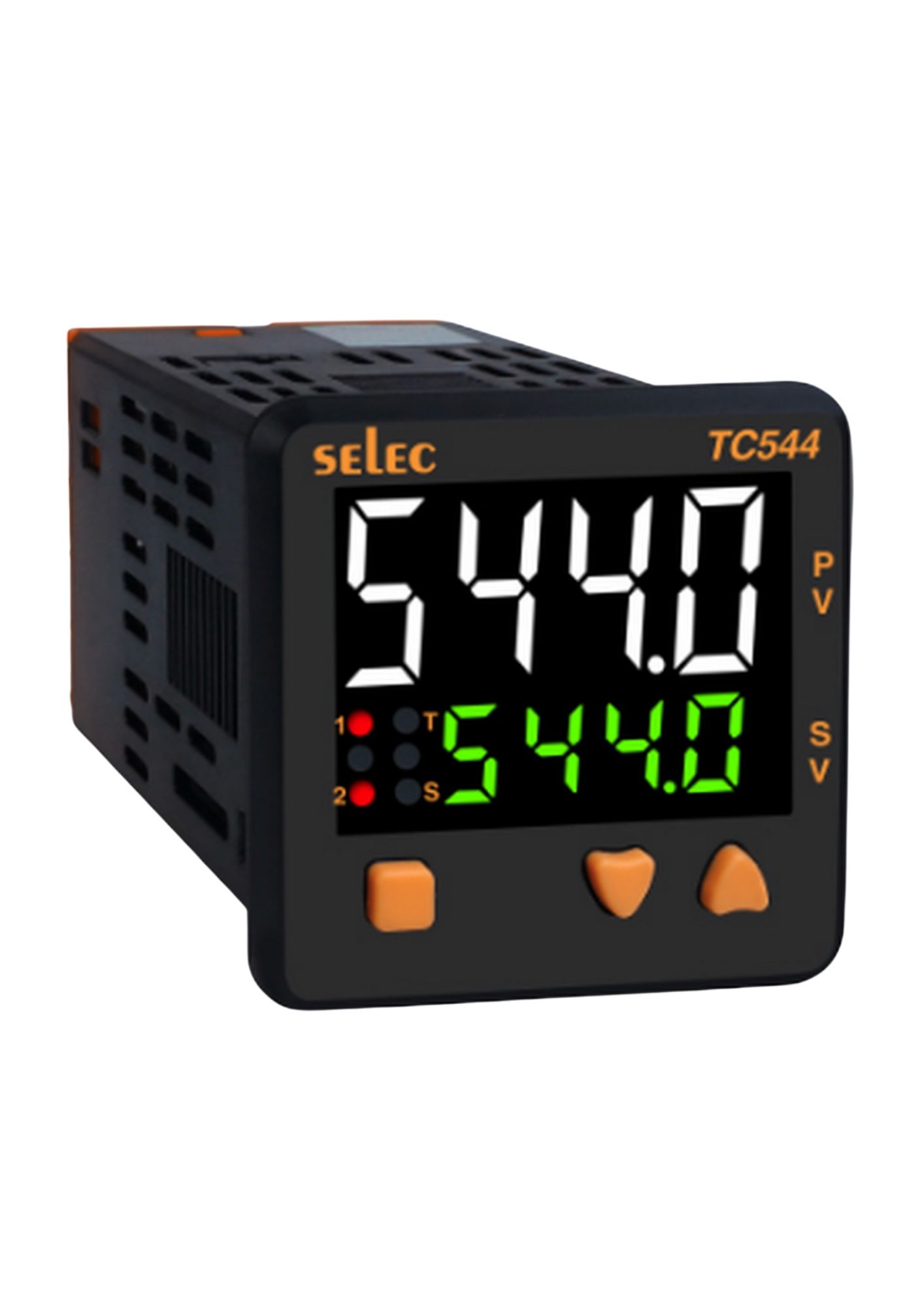

Selec TC544C-2, 4+4 digits, 7 segment LED White and Green Dual Display, 2 SPST Relay Output, 48x48mm, Panel Mount
In stock
SKU
TC544C-2
Special Price
₹1,615.68
Regular Price
₹3,366.00
Check Delivery Options at your Area
FREE SHIPPING
Free Shipping by Surface Only*
SECURE PAYMENT
100% Secure Payment
| Datasheet | |
|---|---|
| Display Type | 4+4 digits, 7 Segment LED dual display |
| Upper Display Height | 15.3 mm |
| Lower Display Height | 8 mm |
| LED Indication | Output 1 ON T: Auto tune Output 2 ON S: Dwell timer |
| Input Type | Thermocouple (J, K, T, R, S) / RTD (PT100) |
| Resolution | 0.1° / 1° for TC/ RTD input (fixed 1° for R & S type TC) |
| Indication Accuracy |
For J, K & T inputs: 0.25% of F.S. ±1° For R & S inputs: 0.5% of F.S. ±2° (20 min warm up) For RTD inputs: 0.1% of F.S. ±1° (F.S. = Full scale) |
| Temperature Unit | °C / °F selectable |
| Input Filter (FTC) | 0.2 to 10.0 sec |
| Sampling Time | 250 ms |
| Control Output | Relay or SSR (user selectable) |
| Relay Contact | SPST, 5A resistive @ 230 VAC / 30 VDC |
| SSR Drive | Voltage pulse 12 VDC, 30 mA |
| Auxiliary Output | Relay contact SPST, 5A resistive @ 230 VAC / 30 VDC |
| Control Modes | 1) PID Control with auto tuning 2) ON-OFF control |
| Proportional Band (P) | 1.0 to 400.0°C |
| Integral Time (I) | 0 to 9999 sec |
| Derivative Time (D) | 0 to 9999 sec |
| Cycle Time | 0.1 to 99.9 sec |
| Hysteresis Width | 0.1 to 99.9° |
| Manual Reset Value | -19.9 to 19.9° |
| Heat-Cool PID | Proportional Band Cool: 0.0 to 400.0° Cycle Time Cool: 0.1 to 99.9 sec Dead Band: Programmable from set point low limit to high limit |
| Alarm Output Settings | Deviation, Absolute: 0.1 to 99.9° |
| Supply Voltage | 90 to 270 VAC / DC (50/60 Hz) |
| Power Consumption | 6 VA max @ 230 VAC |
| Operating Temperature | 0°C to 50°C |
| Storage Temperature | -20°C to 75°C |
| Humidity | 95% RH (non-condensing) |
| Mounting | Panel |
