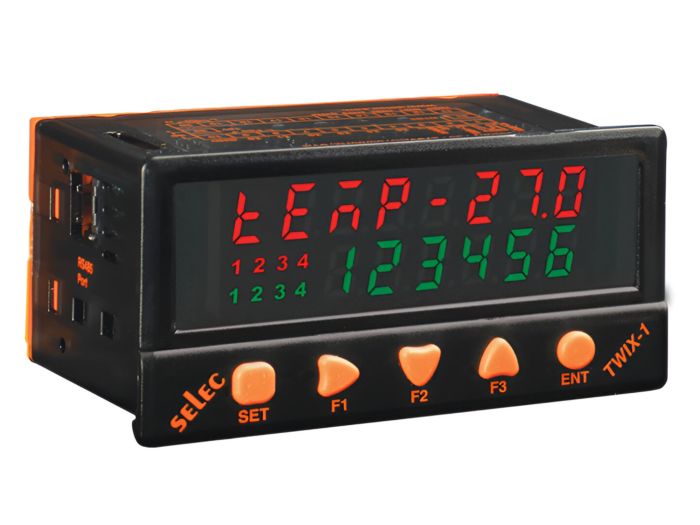

Selec TWIX-1-230V, 4+4 Red + 6 Green Digits LED Display Smart Relay, 6 Digital & 1 Analog Inputs, 4 Relay Outputs, Size 48x96mm, Panel Mount
Selec TWIX-1-230V, 4+4 Red + 6 Green Digits LED Display Smart Relay, 6 Digital & 1 Analog Inputs, 4 Relay Outputs, Size 48x96mm, Panel Mount

Selec TWIX-1-230V, 4+4 Red + 6 Green Digits LED Display Smart Relay, 6 Digital & 1 Analog Inputs, 4 Relay Outputs, Size 48x96mm, Panel Mount

Out of stock
SKU
TWIX-1-230V
Special Price ₹3,674.88 Regular Price ₹7,656.00
(18% GST Extra)
  • 48 X 96 size and Panel Mount PLC, with 7 Segment 4 + 4 Digits Red, 6 Digits Green Display with 5 Keys.
  • 6 Digital Inputs, 4 Relay Outputs.
  • 1 Channel Fast Input upto 5kHz.
  • 1 Channel Analog Input of TC(J,K,T,R,S,C,E,B,N,L,U,W,PLATINEL II) / RTD that can be configured through programming.
  • Supply voltage: 90 to 270 VAC
  • RJ25 MODBUS RS485 Serial Slave Port for Downloading and Communication purpose.

FREE SHIPPING

Free Shipping by Surface Only*

SECURE PAYMENT

100% Secure Payment

  • Display Type: (4 + 4) Red + 6 Green Digits LED Display , 4 Red + 4 Green LED's
  • Size: 48 x 96mm
  • Digital Inputs: 6 (PNP Type) Including 1 Fast Input Channel
  • Analog Inputs: 1 Channel (TC / RTD)
  • Digital Outputs: 4 Relay Outputs
  • Output Rating: 5A @230VAC / 24VDC
  • Analog Outputs: NA
  • RTC With Time Switch Function: No
  • Code Memory: 112KB
  • Communication Interface: RS485 Based MODBUS RTU Protocol
  • Expansion: NO
  • Supply Voltage: 100 to 270 VAC
  • Mounting Type: Panel Mount
  • FI / Maximum Counting Frequency: FC0 (I0 & I1) - 5KHz, Normal digital input: 30Hz

No specifications available for this product.
