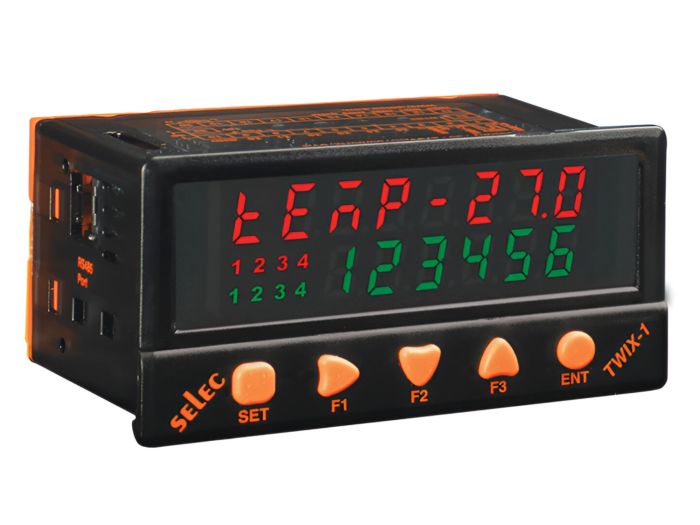

Selec TWIX-1-24VDC, 4+4 Red + 6 Green Digits LED Display Smart Relay, 6 Digital & 1 Analog Inputs, 4 Relay Outputs, Size 48x96mm, Panel Mount, 24VDC

Be the first to review this product

In stock

SKU

TWIX-1-24VDC

Special Price ₹4,314.72 Regular Price ₹8,989.00

(18% GST Extra)

Qty

Add to Wish List

48 X 96 size and Panel Mount PLC, with 7 Segment 4 + 4 Digits Red, 6 Digits Green Display with 5 Keys.
6 Digital Inputs, 4 Relay Outputs.
1 Channel Fast Input upto 5kHz.
1 Channel Analog Input of TC(J,K,T,R,S,C,E,B,N,L,U,W,PLATINEL II) / RTD that can be configured through programming.
Supply voltage : 18 to 30 VDC
RJ25 MODBUS RS485 Serial Slave Port for Downloading and Communication purpose.

Check Delivery Options at your Area

FREE SHIPPING

Free Shipping by Surface Only*

SECURE PAYMENT

100% Secure Payment

Specification

Display Type: (4 + 4) Red + 6 Green Digits LED Display , 4 Red + 4 Green LED's
Size: 48 x 96mm
Digital Inputs: 6 (PNP Type) Including 1 Fast Input Channel
Analog Inputs: 1 Channel (TC / RTD)
Digital Outputs: 4 Relay Outputs
Output Rating: 5A @230VAC / 24VDC
Analog Outputs: NA
RTC With Time Switch Function: No
Code Memory: 112KB
Communication Interface: RS485 Based MODBUS RTU Protocol
Expansion: NO
Supply Voltage: 18 to 30 VDC
Mounting Type: Panel Mount
FI / Maximum Counting Frequency: FC0 (I0 & I1) - 5KHz, Normal digital input: 30Hz
