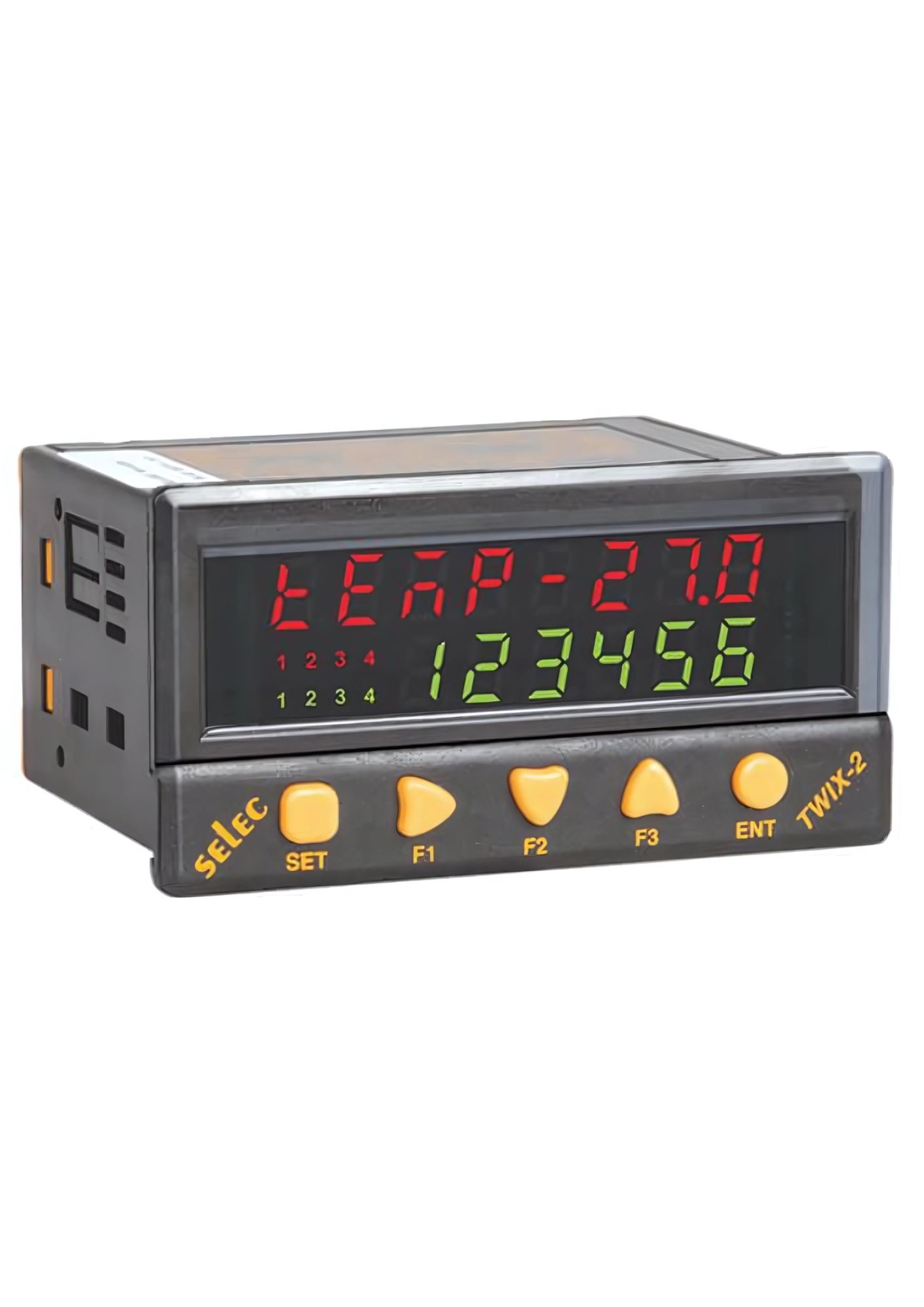

Selec TWIX-2-230V, 4+4 Red + 6 Green Digits Dual Display Smart Relay, 6 Digital & 6 Analog Inputs, 5 Relay & 1 AnalogOutputs, Size 48x96mm, Panel Mount
Selec TWIX-2-230V, 4+4 Red + 6 Green Digits Dual Display Smart Relay, 6 Digital & 6 Analog Inputs, 5 Relay & 1 AnalogOutputs, Size 48x96mm, Panel Mount

Selec TWIX-2-230V, 4+4 Red + 6 Green Digits Dual Display Smart Relay, 6 Digital & 6 Analog Inputs, 5 Relay & 1 AnalogOutputs, Size 48x96mm, Panel Mount

Be the first to review this product
In stock
SKU
TWIX-2-230V
Special Price ₹6,037.44 Regular Price ₹12,578.00
(18% GST Extra)
Add to Wish List
  • 48 X 96 size and Panel Mount PLC, with 7 Segment 4 + 4 Digits Red, 4 Digits Green Display with 5 Keys.
  • 6+2* Digital Inputs, 5 Relay Outputs
  • 1 channel Fast Input upto 5kHz.
  • 2 out of 8 Digital Inputs can be configured as 0-10V analog Inputs
  • 6 channels of analog Inputs of 2 each channels of voltage (0-10VDC), Current (0-20mA) or TC(J,K,T,R,S,C,E,B,N,L,U,W,PLATINEL II) / RTD type 1 channel of Analog Output (0-10VDC) / (0-20mA).
  • Supply Voltage: 90 to 270 VAC
  • 2 wire MODBUS RS485 Serial Slave Port for Downloading and Communication purpose.
Check Delivery Options at your Area

FREE SHIPPING

Free Shipping by Surface Only*

SECURE PAYMENT

100% Secure Payment

  • Display Type: (4 + 4) Red + 6 Green Digits LED Display, 4 Red + 4 Green LED's
  • Size: 48 x 96mm
  • Digital Inputs: 6 + 2* (PNP Type) Including 1 Fast Input Channel
  • Analog Inputs: 6* Channel (2 TC / RTD, 2 * (0-10V), 2 (0-20mA))
  • Digital Outputs: 5 Relay Outputs
  • Output Rating: 5A @230VAC / 24VDC
  • Analog Outputs: 1 Channel (0-10V / 0-20mA)
  • RTC With Time Switch Function: No
  • Code Memory: 240KB
  • Communication Interface: RS485 Based MODBUS RTU Protocol
  • Expansion: NO
  • Supply Voltage: 100 to 270 VAC
  • Mounting Type: Panel Mount
  • FI / Maximum Counting Frequency: FC0 (I0 & I1) - 5KHz, Normal digital input: 30Hz
Product Variants

No specifications available for this product.

Reviews
Write Your Own Review
You're reviewing:Selec TWIX-2-230V, 4+4 Red + 6 Green Digits Dual Display Smart Relay, 6 Digital & 6 Analog Inputs, 5 Relay & 1 AnalogOutputs, Size 48x96mm, Panel Mount
Your Rating
Downloads
document TWIX-2-230V-Datasheet (1.71 MB)
document TWIX-2-230V-Instruction Manual (2.70 MB)
