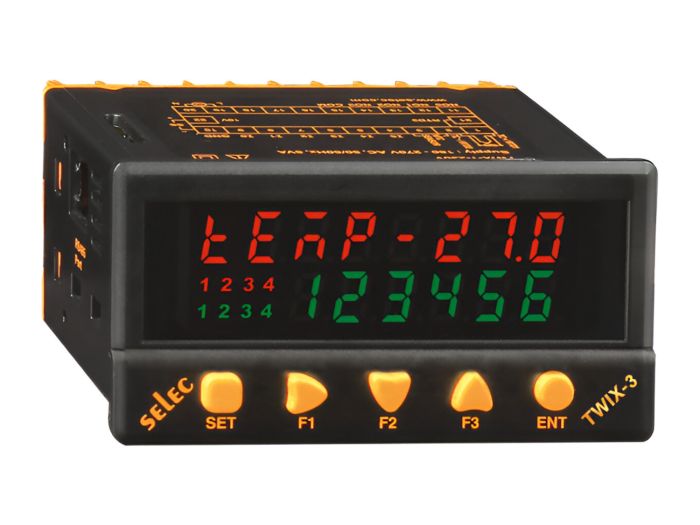

Selec TWIX-3-24VDC, 4+4 Digits Red, 6 Digits Green Display Smart Relay, 8 Digital & 1 Analog Input, Size 48x96mm, Panel Mount, 24VDC

Be the first to review this product

In stock

SKU

TWIX-3-24VDC

Special Price ₹4,473.12 Regular Price ₹9,319.00

(18% GST Extra)

Qty

Add to Wish List

48 X 96 size and Panel Mount PLC, with 7 Segment 4 + 4 Digits Red, 6 Digits Green Display with 5 Keys.
6 Digital Inputs, 4 Relay Outputs.
1 channel Fast Input upto 5kHz.
1 channel analog Input of TC(J,K,T,R,S,C,E,B,N,L,U,W,PLATINEL II) / RTD that can be configured through programming.
Supply voltage: 18 to 30 VDC
RJ25 MODBUS RS485 Serial Slave Port for Downloading and Communication purpose.

Check Delivery Options at your Area

FREE SHIPPING

Free Shipping by Surface Only*

SECURE PAYMENT

100% Secure Payment

Specification

Display Type: (4 + 4) Red + 6 Green Digits LED Display , 4 Red + 4 Green LED's
Size: 48 x 96mm
Digital Inputs: 8 (PNP Type) Including 1 Fast Input Channel
Analog Inputs: 1 Channel (TC / RTD)
Digital Outputs: 6 Transistor Outputs
Output Rating: 100mA @24V DC (Transistor)
Analog Outputs: NA
RTC With Time Switch Function: NO
Code Memory: 112KB
Communication Interface: RS485 Based MODBUS RTU Protocol
Expansion:NO
Supply Voltage: 18 to 30 VDC
Mounting Type: Panel Mount
FI / Maximum Counting Frequency: FC0 (I0 & I1) - 5KHz, Normal digital input: 30Hz
