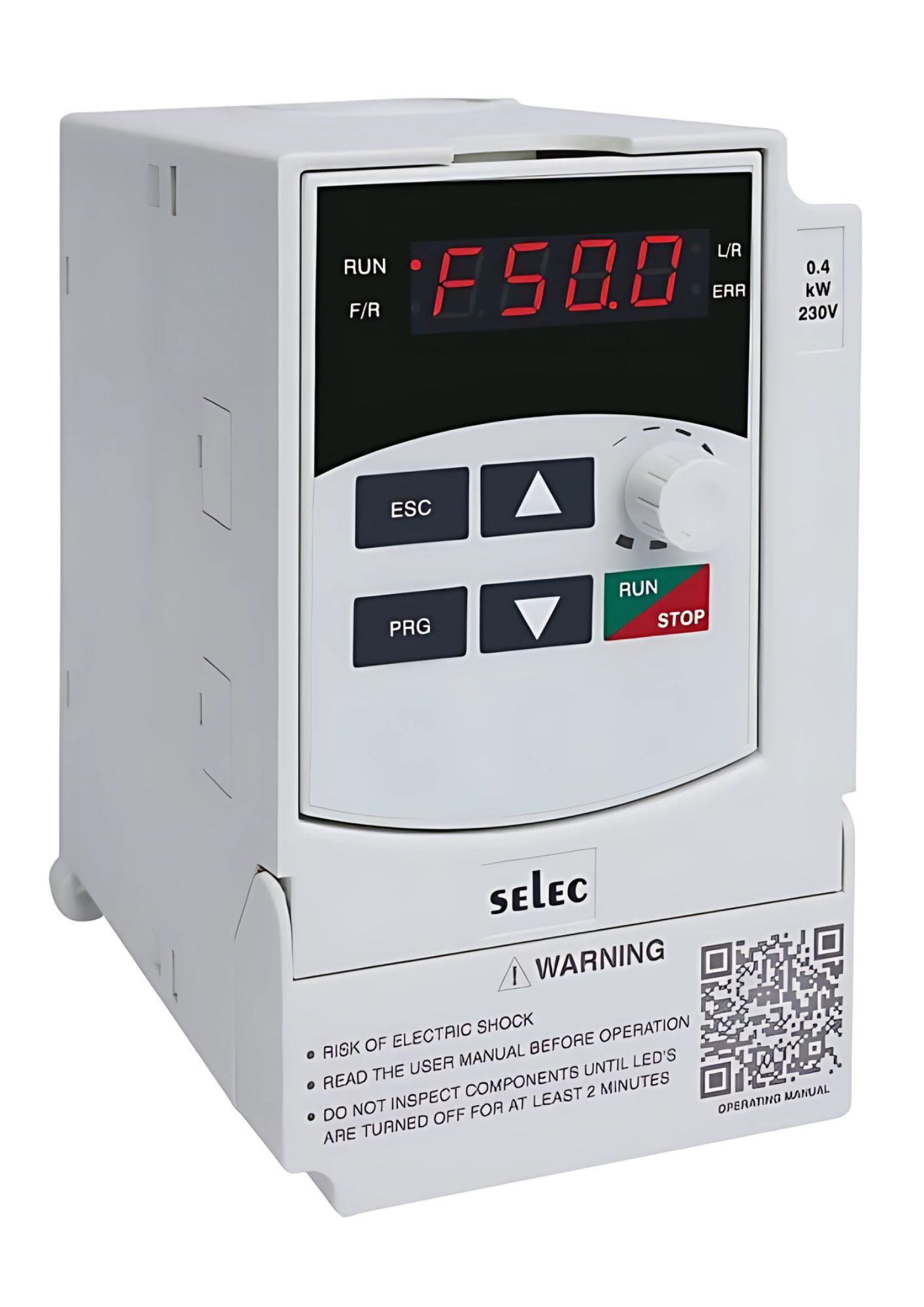

Selec VFD-L-1-005-230V, Economical Series Single Phase AC Drives, 230VAC INPUT, 3 Phase 230V AC OUTPUT, 0.5 HP /0.4kW /2.5Amp Output
In stock
SKU
VFD-L-1-005-230V
Special Price
₹6,240.00
Regular Price
₹13,000.00
Selec VFD-L-1-005-230V, Economical Series Single Phase AC Drives, 230VAC INPUT, 3 Phase 230V AC OUTPUT, 0.5 HP /0.4kW /2.5Amp Output is available to buy in increments of 1
Check Delivery Options at your Area
FREE SHIPPING
Free Shipping by Surface Only*
SECURE PAYMENT
100% Secure Payment
- AC Input Voltage Range: Single Phase
- Applicable motor output (kW): 0.4
- Applicable motor output (HP): 0.5
- Maximum input current: 5A
- Rated output capacity (kVA): 0.8
- Rated output current: 2.5A
- Frequency Range: 50/60 Hz
- Control Mode: Space vector PWM (SVPWM)-based scalar control
- Frequency Control Range: 0.1 to 400 Hz
- Acc./Dec. Time: 0.1 to 999.9 sec., four acceleration and deceleration time settings available
- Overload Capacity: 150% for 1 min, 180% for 10 sec., 200% for 1 sec.
- Protection functions: Over voltage, Under voltage, Over current, Over temperature, Over load, Under current and Output short circuit
- Ingress Protection: IP20
- Working Temperature: -10 to +55 °C
- Ambient humidity: <90%, No condensation
- Installation location: Indoor, <1000m altitude above sea level
| Product Code | Description | Output Current |
|---|---|---|
| VFD-L-1-005-230V | 1 Phase 230V AC INPUT, 3 Phase 0 to 230V AC OUTPUT
