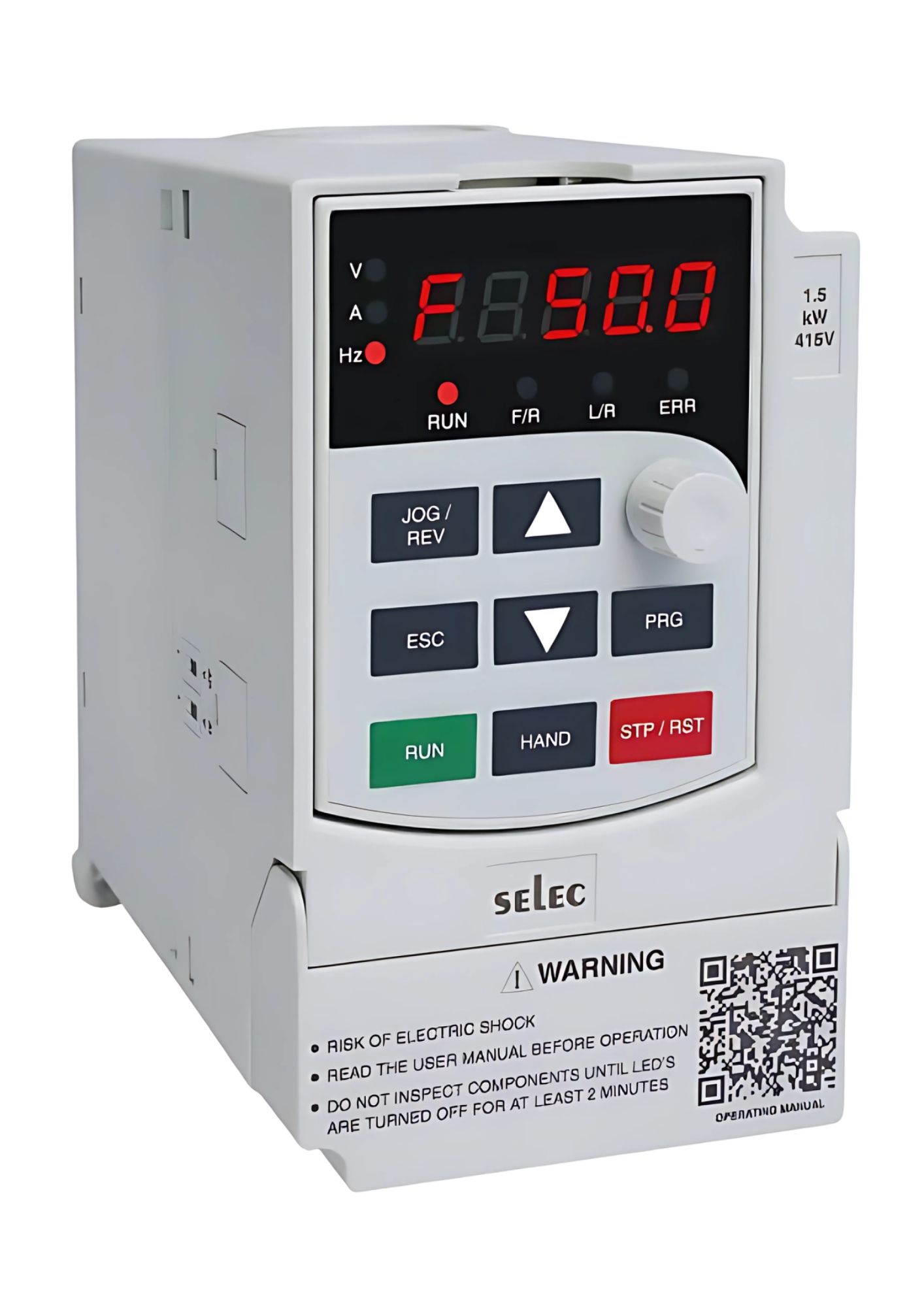

Selec VFD-S-1-020-230V, Single Phase AC Drives, 230VAC INPUT, 3 Phase 230V AC OUTPUT, 2 HP /1.5kW /7Amp Output
Selec VFD-S-1-020-230V, Single Phase AC Drives, 230VAC INPUT, 3 Phase 230V AC OUTPUT, 2 HP /1.5kW /7Amp Output

Selec VFD-S-1-020-230V, Single Phase AC Drives, 230VAC INPUT, 3 Phase 230V AC OUTPUT, 2 HP /1.5kW /7Amp Output

Be the first to review this product
In stock
SKU
VFD-S-1-020-230V
Special Price ₹7,669.92 Regular Price ₹15,979.00
(18% GST Extra)
Add to Wish List
  • 4 pre-set V/f; 1 user-defined V/f program
  • Input: Single phase 230V AC, 50/60 Hz
  • Output: Three phase 230V AC, 0 to 400 Hz
  • Output power: 2 HP (1.5 kW)
  • 5 (PNP/NPN) Inputs, 1 POT Input, 1 Analog Input (0-10 V/0-20 mA/4-20 mA), 1 Relay output, 1 Analog Output (0-10 V/0-20 mA), and 1 Open Collector Output
  • Supports the RS485 Modbus Communication Protocol
  • Provides protection against Over current, Over Voltage, Under Voltage, Over Temperature, Overload and Under current
  • Suitable for applications like pumps, fans, conveyors, food and drink packaging machinery, industrial washing machines, and most general industries, etc.
Check Delivery Options at your Area

FREE SHIPPING

Free Shipping by Surface Only*

SECURE PAYMENT

100% Secure Payment

  • AC Input Voltage Range: Single Phase
  • Applicable motor output (kW): 1.5
  • Applicable motor output (HP): 2
  • Maximum input current: 20A
  • Rated output capacity (kVA): 2.7
  • Rated output current: 7A
  • Frequency Range: 50/60 Hz
  • Control Mode: Space vector PWM (SVPWM)-based scalar control
  • Frequency Control Range: 0.1 to 400 Hz
  • Acc./Dec. Time: 0.1 to 3600.0 sec., four acceleration and deceleration time settings available
  • Overload Capacity: 150% for 1 min, 180% for 10 sec., 200% for 1 sec.
  • Protection functions: Over voltage, Under voltage, Over current, Over temperature, Over load, Under current and Output short circuit
  • Ingress Protection: IP20
  • Working Temperature: -10 to +55 °C
  • Ambient humidity: <90%, No condensation
  • Installation location: Indoor, <1000m altitude above sea level
Product Variants
Product Code Description Output Current
VFD-S-1-005-230V 1 Phase 230V AC INPUT, 3 Phase 0 to 230V AC OUTPUT, 0.5 HP/0.4 kW 2.5 A
VFD-S-1-010-230V 1 Phase 230V AC INPUT, 3 Phase 0 to 230V AC OUTPUT, 1 HP/0.75 kW 5 A
VFD-S-1-020-230V 1 Phase 230V AC INPUT, 3 Phase 0 to 230V AC OUTPUT, 2 HP/1.5 kW 7 A
Reviews
Write Your Own Review
You're reviewing:Selec VFD-S-1-020-230V, Single Phase AC Drives, 230VAC INPUT, 3 Phase 230V AC OUTPUT, 2 HP /1.5kW /7Amp Output
Your Rating
Downloads
document VFD-S-1-020-230V-Datasheet (1.05 MB)
document VFD-S-1-020-230V-Instruction Manual (7.48 MB)
