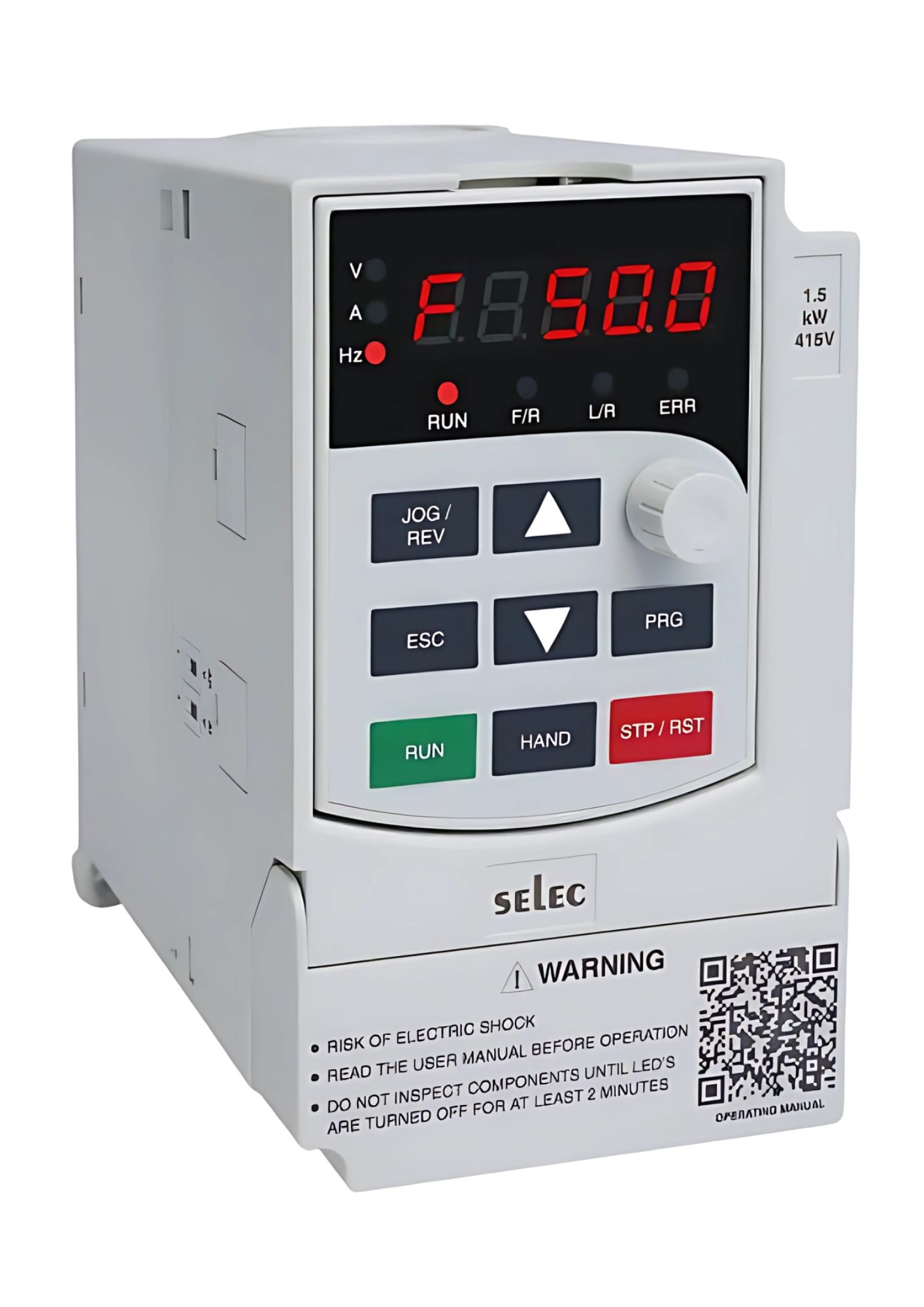

Selec VFD-SH-3-050-B-415V, Three Phase Heavy Duty AC Drives, 415VAC INPUT, 3 Phase 415VAC OUTPUT, 5 HP /3.7kW /9Amp Output
Selec VFD-SH-3-050-B-415V, Three Phase Heavy Duty AC Drives, 415VAC INPUT, 3 Phase 415VAC OUTPUT, 5 HP /3.7kW /9Amp Output

Selec VFD-SH-3-050-B-415V, Three Phase Heavy Duty AC Drives, 415VAC INPUT, 3 Phase 415VAC OUTPUT, 5 HP /3.7kW /9Amp Output

Be the first to review this product
Out of stock
SKU
VFD-SH-3-050-B-415V
Special Price ₹14,408.64 Regular Price ₹30,018.00
(18% GST Extra)
  • 4 pre-set V/f modes; 1 user-defined V/f program
  • Input: Three phase 415V AC, 50/60 Hz
  • Output: Three phase 415V AC, 0 to 400 Hz
  • Output power: 5 HP (3.7 kW)
  • 8 (PNP/NPN) Inputs, 2 Analog Inputs (0-10 V/0-20 mA/4-20 mA), 2 Relay Outputs, 1 Analog Output (0-10 V/0-20 mA), and 2 Open Collector Outputs
  • Supports the RS485 Modbus Communication Protocol
  • Protection against Over voltage, Under voltage, Over temperature, Over load, Under current, Over current and Short circuit
  • Suitable for applications like pumps, fans, conveyors, food and drink packaging machinery, industrial washing machines, and most general industries, etc.

FREE SHIPPING

Free Shipping by Surface Only*

SECURE PAYMENT

100% Secure Payment

  • AC Input Voltage Range: Three Phase
  • Applicable motor output (kW): 3.7
  • Applicable motor output (HP): 5
  • Maximum input current: 16A
  • Rated output capacity (kVA): 6.5
  • Rated output current: 9A
  • Frequency Range: 50/60 Hz
  • Control Mode: Space vector PWM (SVPWM)-based scalar control
  • Frequency Control Range: 0.1 to 400 Hz
  • Acc./Dec. Time: 0.1 to 3600.0 sec., four acceleration and deceleration time settings available
  • Overload Capacity: For ND: 120% up to 60 sec, 150% up to 10 sec, 180% up to 1 sec (every 10 min) For HD: 150% up to 60 sec, 180% up to 10 sec, 200% up to 1 sec (every 10 min)
  • Protection functions: Over voltage, Under voltage, Over current, Over temperature, Over load, Under current and Output short circuit
  • Ingress Protection: IP20
  • Working Temperature: -10 to +55 ¬∞C
  • Ambient humidity: <90%, No condensation
  • Installation location: Indoor, <1000m altitude above sea level
Product Variants
Product Code Description Output Current
VFD-S-3-010-415V 3 Phase 415V AC INPUT, 3 Phase 0 to 415V AC OUTPUT, 1 HP/0.75 kW 2.5 A
VFD-S-3-020-415V 3 Phase 415V AC INPUT, 3 Phase 0 to 415V AC OUTPUT, 2 HP/1.5 kW 3.7 A
VFD-S-3-030-415V 3 Phase 415V AC INPUT, 3 Phase 0 to 415V AC OUTPUT, 3 HP/2.2 kW 5.1 A
VFD-SH-3-050-B-415V 3 Phase 415V AC INPUT, 3 Phase 0 to 415V AC OUTPUT, 5 HP/3.7 kW, Heavy Duty 9 A
VFD-SN-3-075-B-415V 3 Phase 415V AC INPUT, 3 Phase 0 to 415V AC OUTPUT, 7.5 HP/5.5 kW, Normal duty 17 A
VFD-SH-3-075-B-415V 3 Phase 415V AC INPUT, 3 Phase 0 to 415V AC OUTPUT, 7.5HP/5.5kW, Heavy duty 13 A
VFD-SN-3-100-B-415V 3 Phase 415V AC INPUT, 3 Phase 0 to 415V AC OUTPUT, 10HP/7.5kW, Normal Duty 25 A
VFD-SH-3-100-B-415V 3 Phase 415V AC INPUT, 3 Phase 0 to 415V AC OUTPUT, 10HP/7.5kW. Heavy Duty 17 A
VFD-SH-3-150-B-415V 3 Phase 415V AC INPUT, 3 Phase 0 to 415V AC OUTPUT, 15HP/11kW. Heavy Duty 25 A
VFD-SN-3-200-B-415V 3 Phase 415V AC INPUT, 3 Phase 0 to 415V AC OUTPUT, 20 HP/15 kW, Normal duty 37 A
VFD-SH-3-200-B-415V 3 Phase 415V AC INPUT, 3 Phase 0 to 415V AC OUTPUT, 20 HP/15 kW, Heavy duty 32 A
Reviews
Write Your Own Review
You're reviewing:Selec VFD-SH-3-050-B-415V, Three Phase Heavy Duty AC Drives, 415VAC INPUT, 3 Phase 415VAC OUTPUT, 5 HP /3.7kW /9Amp Output
Your Rating
Downloads
document VFD-SH-3-050-B-415V-Datasheet (573.87 kB)
document VFD-SH-3-050-B-415V-Instruction Manual (13.76 MB)
