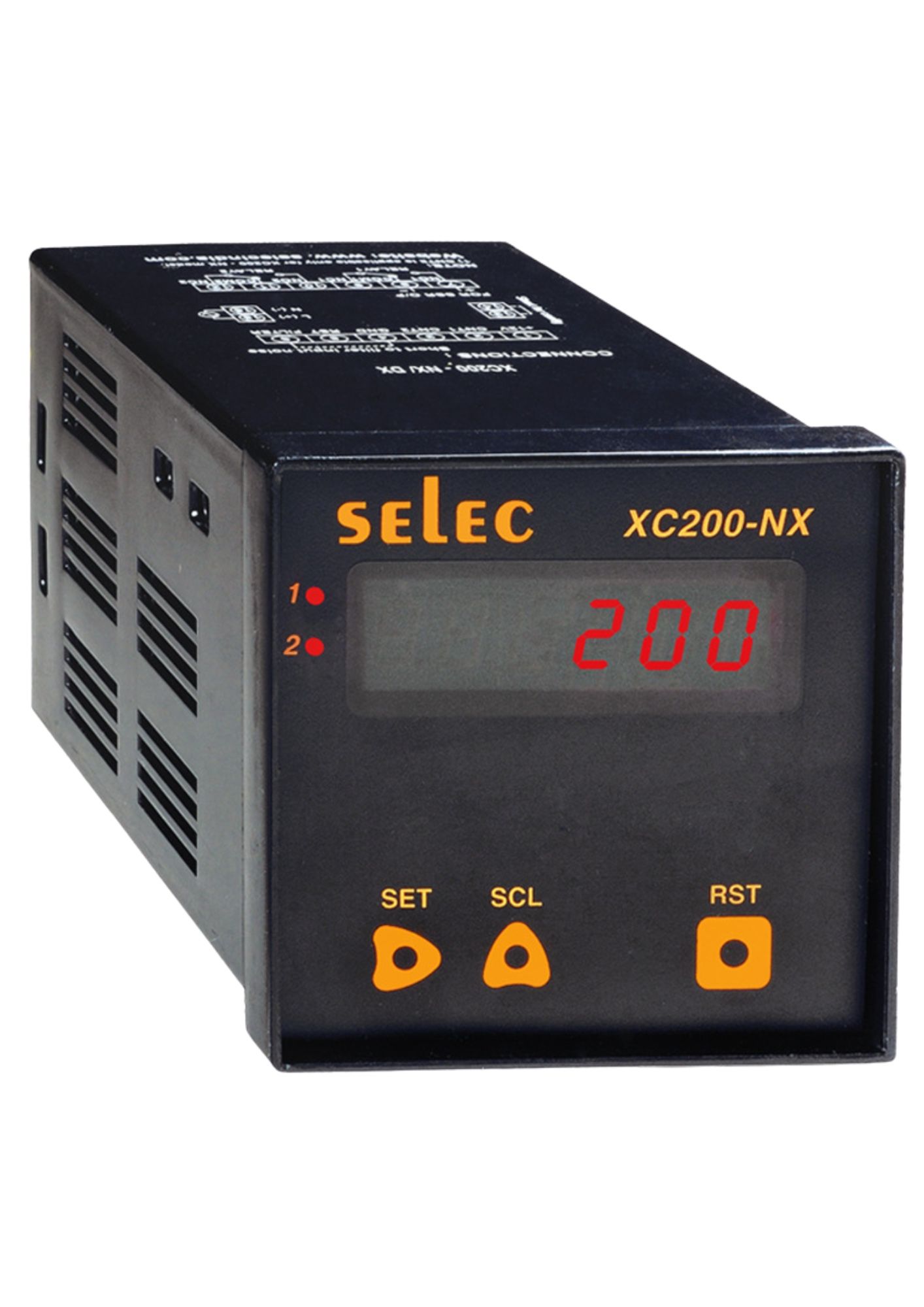

Selec XC200NX, 6 Digit Counter, 5 Digit RPM Indicator, Multifunction, Quadrature Input 2 Setpoint, 72x72mm
In stock
SKU
XC200NX
Special Price
₹3,956.64
Regular Price
₹8,243.00
Check Delivery Options at your Area
FREE SHIPPING
Free Shipping by Surface Only*
SECURE PAYMENT
100% Secure Payment
| Datasheet | |
|---|---|
| Sensor Type | NPN |
| Input Type | Voltage pulse (3 to 30V DC) from Proximity switches, Encoders, Solid state devices, Potential free contact |
| Input Speed | a) 0 to 30Hz b) 0 to 2.5kHz c) 0 to 5kHz (for up & down mode only) |
| Accuracy | Rate: 0.05% ± 2 counts |
| Scale Factor | 0.00001 to 9.99999 x 10n, n = -5, -4, -3, -2, -1, 0, 1, 2 |
| Reset | Front (user selectable), Remote |
| Sensor Supply | Inbuilt, 12V DC, 30mA (short circuit protected) |
| Output Contact | DPDT (2 C/O) |
| Contact Rating | 5A @ 230V AC / 24V DC |
| Modes | ON delay / Interval delay / Auto reset / Time pulse repeat |
| Range |
Count: Selectable least count 0.0001, 0.001, 0.01, 0.1 & 1 Rate: Auto ranging 4.00 to 99999 (RPM or RPH mode) |
| Counting Directions | Up, Down, Bidirectional, Quadrature |
| Memory Retention | Yes |
| Supply Voltage | 85 to 270V AC/DC (AC: 50 / 60Hz) |
| Power Consumption | 5VA max |
| Temperature |
Operating: 0 to 50°C (32 to 122°F) Storage: -20 to 75°C (-4 to 167°F) |
| Humidity (non-condensing) | 95% RH |
| Weight | 230 g (0.507 lbs) |
| Protection Level | IP65 for faceplate |
