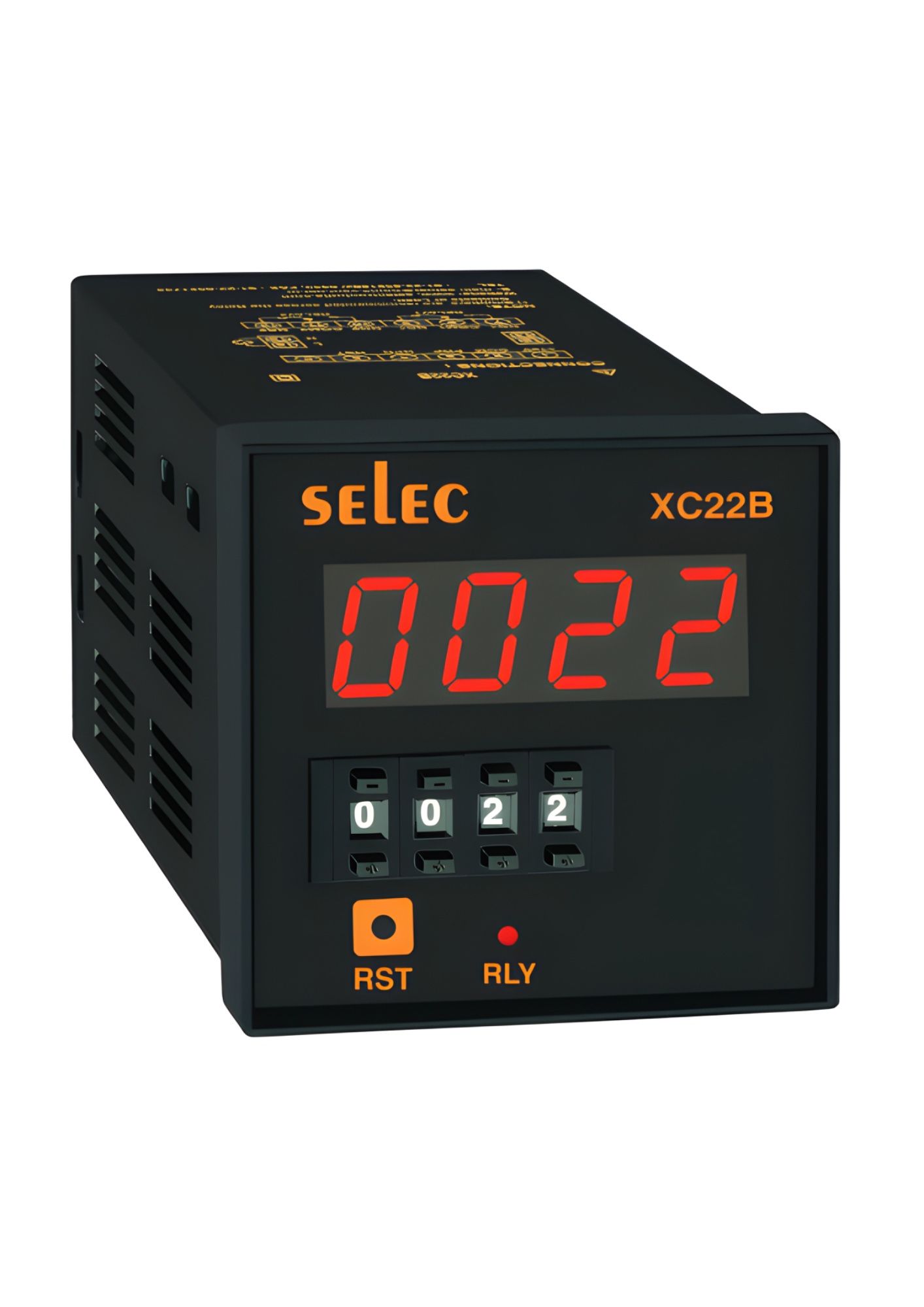

Selec XC22B-4-AR-M1-230, 4 Digits Single 7 Segment LED Display, Preset Counter, 72x72mm, Panel Mount
In stock
SKU
XC22B-4-AR-M1-230
Special Price
₹3,063.36
Regular Price
₹6,382.00
Check Delivery Options at your Area
FREE SHIPPING
Free Shipping by Surface Only*
SECURE PAYMENT
100% Secure Payment
| Datasheet | |
|---|---|
| Display | 4 digits single 7 segment LED display |
| LED indication | Relay ON |
| Sensor type | NPN/ PNP |
| Input type | Voltage pulse (5 to 30 VDC) from Proximity switches, Encoders, Solid state devices, Potential free contact |
| Input speed | a) 30Hz, b) 5kHz |
| Reset | Front, Remote, Auto |
| Sensor supply | Inbuilt, 12 VDC, 30mA |
| Contact rating | Relay contact Relay: NO: 10A 250 VAC/ 28 VDC NO/ NC: 5A/ 5A 250 VAC/ 28 VDC 2X SPDT |
| Modes | ON delay/ Interval |
| Ranges | 9999 counts |
| Autoreset | Yes (selectable up to 7 sec) |
| Set point | 1 |
| Counting direction | Up |
| Memory retention | Yes (selectable) |
| Supply voltage | 90 to 270 VAC/ DC (50Hz or 60Hz) |
| Temperature | Operating: 0 to 50°C Storage: -5 to 50°C |
| Humidity (non-condensing) | 95% RH |
| Mounting | Panel mount |
No specifications available for this product.
