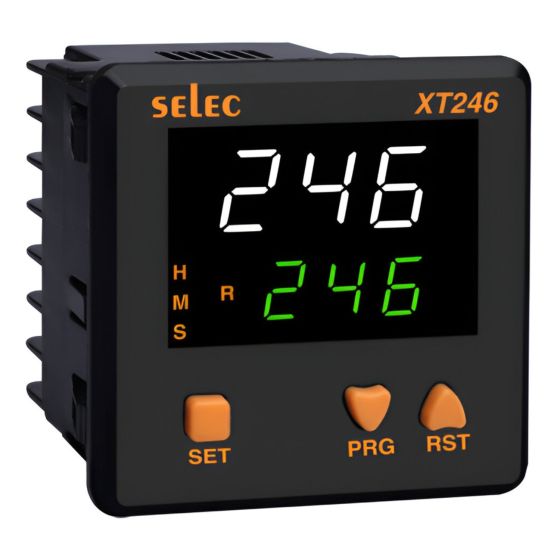

Selec XT246A, 3 Digit Dual LED Display, Multifunctional Digital Timer, Size 72x72mm, Panel Mount, Low Depth
Selec XT246A, 3 Digit Dual LED Display, Multifunctional Digital Timer, Size 72x72mm, Panel Mount, Low Depth

Selec XT246A, 3 Digit Dual LED Display, Multifunctional Digital Timer, Size 72x72mm, Panel Mount, Low Depth

In stock
SKU
XT246A
Special Price ₹1,271.52 Regular Price ₹2,649.00
(18% GST Extra)
Add to Wish List
  • 3+3 digit, Single set point
  • LED indications - Relay ON, hr,min,sec
  • Relay modes - ON delay, Interval, Cyclic ON first, Cyclic OFF first
  • Multi range - 9 time ranges
  • 72 x 72 mm Size
  • Counting direction – Up /down selectable
  • CE certified
Check Delivery Options at your Area

FREE SHIPPING

Free Shipping by Surface Only*

SECURE PAYMENT

100% Secure Payment

Display Type 3+3 Digits, 7 Segment LED, Dual Display (White/Green)
Relay Contact 2 C/O SPDT
Start Input Pulse/ Gate
Range 9.99 / 99.9 / 999sec,
9.59 min sec, 99.9 / 999min,
9.59 hr : min, 99.9 / 999 hr
Operating Modes ON Delay / Interval / Cyclic ON First / Cyclic OFF First
Accuracy ±0.5% of set time or 50msec ( whichever is greater)
Feature Memory Retention
Reset Front, Remote, Power Interruption
Counting Direction Up/ Down
Supply Voltage 90 to 270 VAC/ DC
Size 72 x 72mm
Mounting Type Panel Mount
Certification CE
Product Code Output 1 Output 2 Supply Voltage Certification
XT246A Relay (5A) Relay (5A) 90 to 270 VAC/ DC CE
