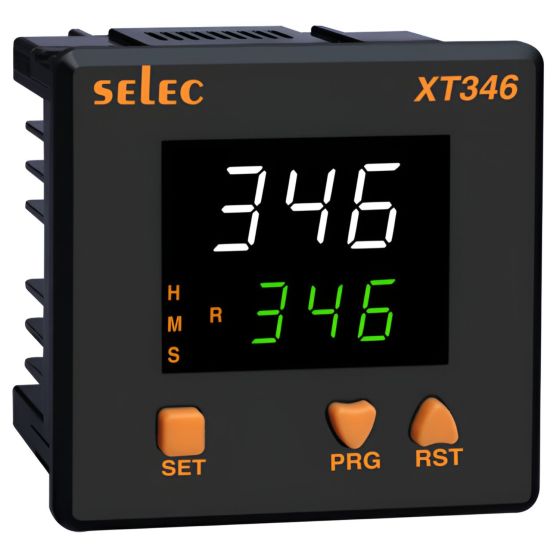

Selec XT346A, 3 Digit Dual LED Display, Multifunctional Digital Timer, Size 96x96mm, Panel Mount, Low Depth
Selec XT346A, 3 Digit Dual LED Display, Multifunctional Digital Timer, Size 96x96mm, Panel Mount, Low Depth

Selec XT346A, 3 Digit Dual LED Display, Multifunctional Digital Timer, Size 96x96mm, Panel Mount, Low Depth

In stock
SKU
XT346A
Special Price ₹1,340.16 Regular Price ₹2,792.00
(18% GST Extra)
Add to Wish List
  • 3+3 digit, Single set point
  • LED indications - Relay ON, hr,min,sec
  • Relay modes - ON delay, Interval, Cyclic ON first, Cyclic OFF first
  • Multi range - 9 time ranges
  • 96 x 96 mm Size
  • Counting direction – Up /down selectable
  • CE certified
Check Delivery Options at your Area

FREE SHIPPING

Free Shipping by Surface Only*

SECURE PAYMENT

100% Secure Payment

Display Type 3+3 Digits, 7 Segment LED, Dual Display (White/Green)
Relay Contact 2 C/O SPDT
Start Input Pulse/ Gate
Range 9.99 / 99.9 / 999sec
9:59 min:sec , 99.9 / 0 - 999min
9:59 hr:min, 99.9hr / 0 - 999hr
Operating Modes ON Delay, Interval, Cyclic ON First, Cyclic OFF First
Accuracy ±0.5% of set time or 50msec ( whichever is greater)
Feature Memory Retention
Reset Front, Remote, Power Interruption
Counting Direction Down/ Up
Supply Voltage 90 to 270VAC/ DC
Size 96 x 96mm
Mounting Type Panel Mount
Certification CE
Product Code Output 1 Output 2 Supply Voltage Certification
XT346A Relay (5A) Relay (5A) 90 to 270 VAC/ DC CE
