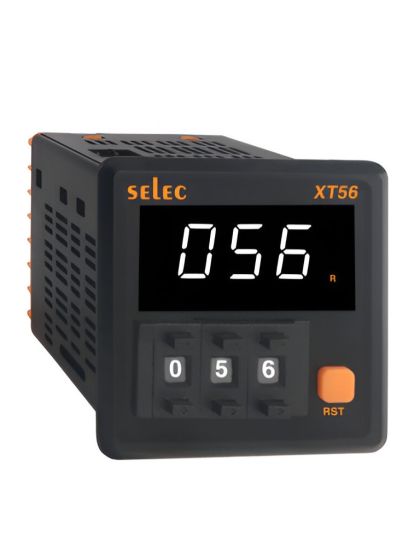

Selec XT56A, 3 Digit Single white display, Thumbwheel, On delay/ Interval mode Digital Timer, Size 48x48mm, Panel Mount, Low Depth

Be the first to review this product

In stock

SKU

XT56A

Special Price ₹1,964.16 Regular Price ₹2,842.00

(18% GST Extra)

Qty

Add to Wish List

3 digit, Single set point
Relay modes - ON delay, Interval
Multi range – 7 time ranges
Counting direction – down
48 mm x 48 mm size
Time setting- By push wheel switches
Panel Mount, Short depth

Check Delivery Options at your Area

FREE SHIPPING

Free Shipping by Surface Only*

SECURE PAYMENT

100% Secure Payment

Specification

Display Type	3 Digits, 7 Segment LED, Single White Display
Relay Contact	2 C/O SPDT
Range	9.99 / 99.9 / 999 sec, 99.9 / 999 min, 99.9 / 999 hr
Operating Modes	ON Delay / Interval
Time Setting	By push wheel switches
Accuracy	±0.5% or 50msec ( whichever is greater)
Reset	Front, Remote, Power Interruption
Counting Direction	Down
Operating Modes	ON delay / Interval
Supply Voltage	90 to 270 VAC/ DC
Size	48 x 48mm
Mounting Type	Panel Mount
Certification	CE

Product Variants

Product Code	Output 1	Output 2	Supply Voltage	Certification
XT56A	Relay (5A)	Relay (5A)	90 to 270 VAC/ DC	CE
