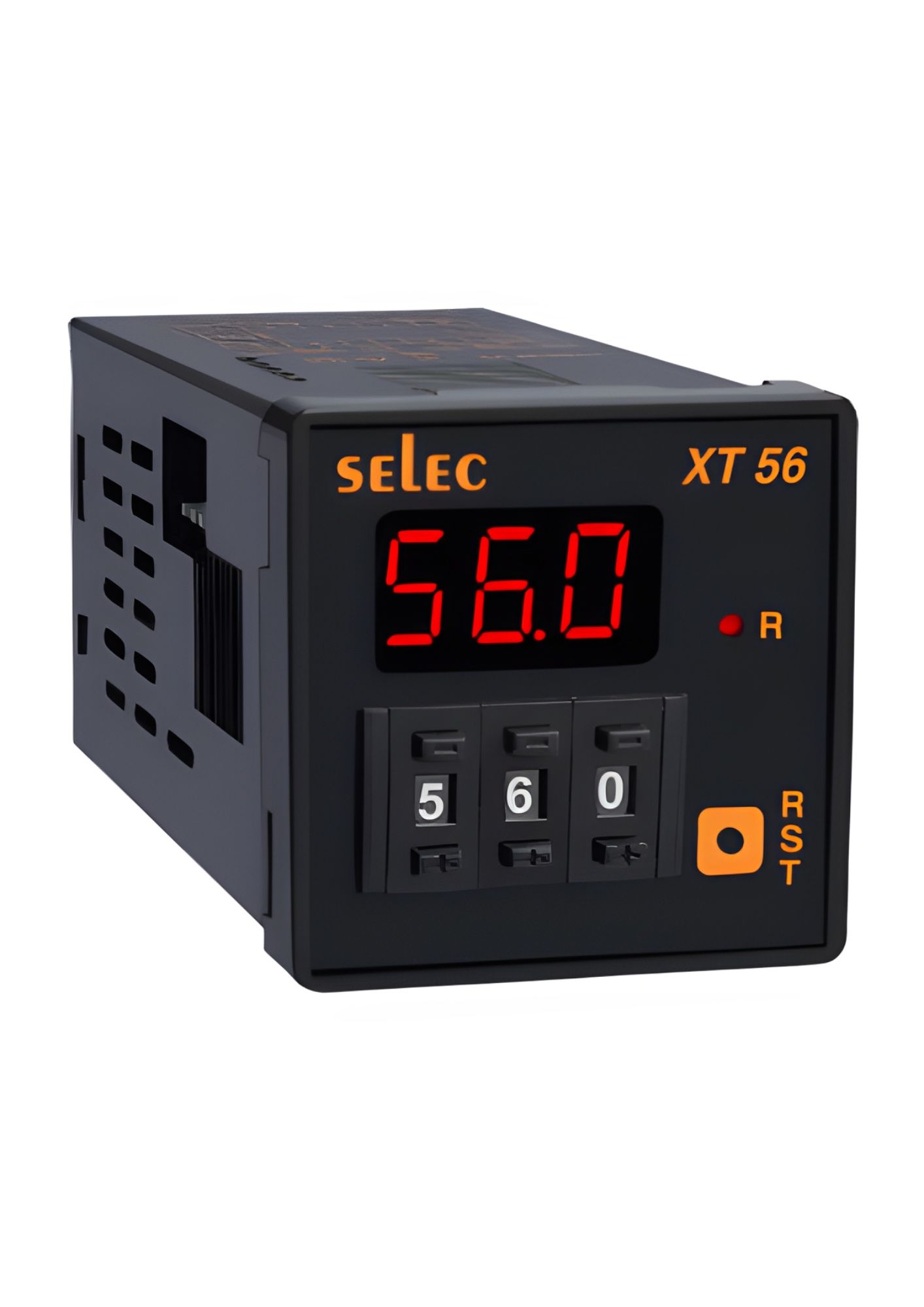

Selec XT56N-24, 3 digits, 7 segment LED, Single Set Point, 6 Time Ranges, 48x48mm, Panel Mount
In stock
SKU
XT56N-24
Special Price
₹2,011.20
Regular Price
₹4,190.00
Check Delivery Options at your Area
FREE SHIPPING
Free Shipping by Surface Only*
SECURE PAYMENT
100% Secure Payment
| Datasheet | |
|---|---|
| Display | LED Indications, 3 digits, 7 segment LED, Relay ON |
| Accuracy | Start input ±0.05% of F.S. or 50 msec, Pulse start |
| Contact rating |
Relay contact: - Relay NO: 10A 250 VAC / 24 VDC - NO/NC: 5A/5A 250 VAC / 24 VDC - 2X SPDT |
| Auxiliary supply | Supply voltage: 24 VAC/ DC |
| Time ranges | 0 - 9.99 sec, 0 - 99.9 sec, 0 - 999 sec, 0 - 99.9 min, 0 - 999 min, 0 - 99.9 hr |
| Resolution | 0.01 sec |
| Counting direction | Down |
| Set Point | 1 |
| Time setting | ON delay / Interval, Pushwheel |
| Reset | Front, Remote, On power interruption |
| Memory retention | No |
| Temperature | Operating: 0 to 50°C; Storage: -5 to 55°C |
| Humidity (non-condensing) | 95% RH |
| Mounting | Panel mount |
