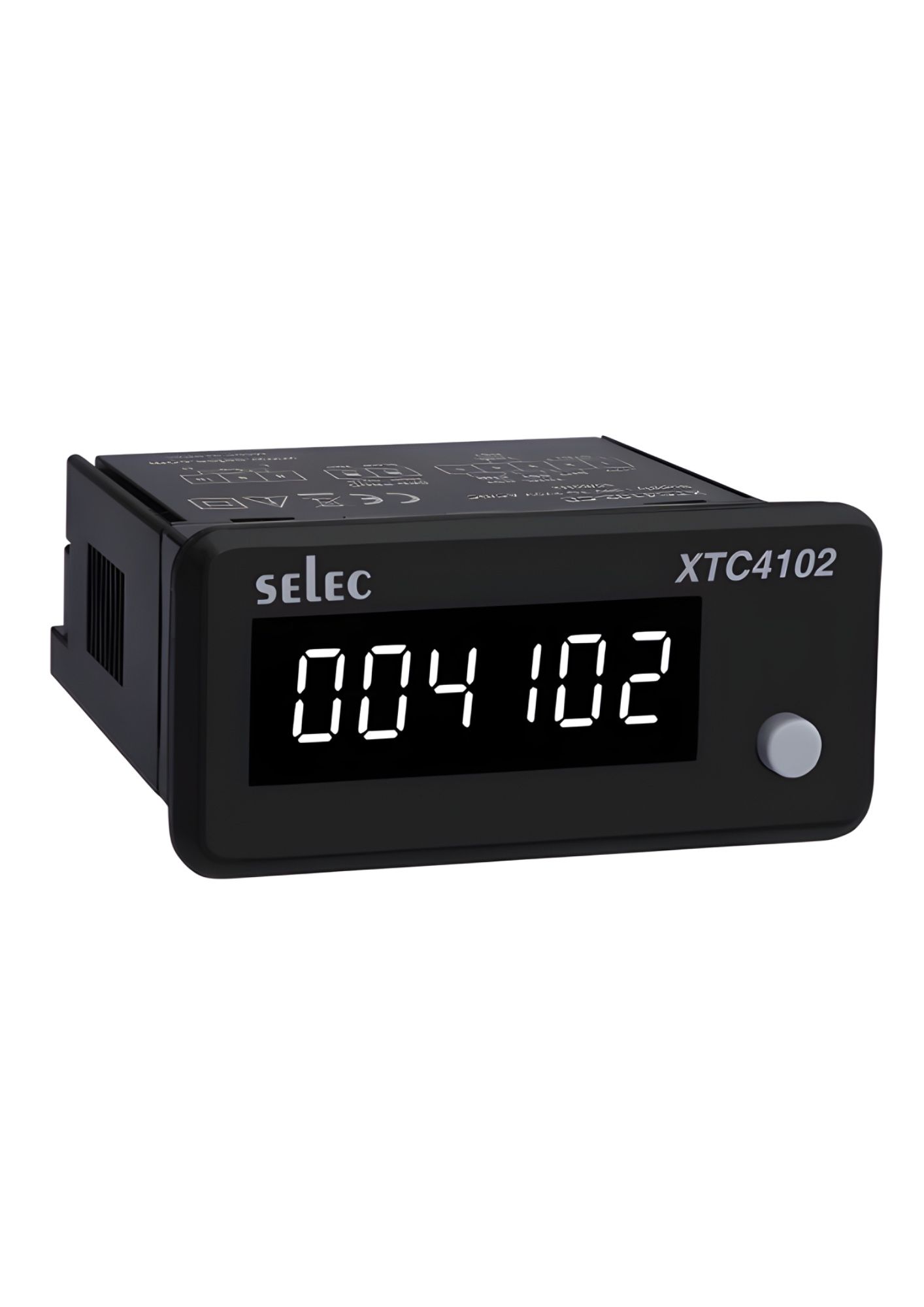

Selec XTC4102-2-CE, 6 digits, 7 segment white LED display, Inbuilt sensor supply, 36x72mm, Panel Mount
In stock
SKU
XTC4102-2-CE
Special Price
₹1,668.00
Regular Price
₹3,475.00
Check Delivery Options at your Area
FREE SHIPPING
Free Shipping by Surface Only*
SECURE PAYMENT
100% Secure Payment
| Datasheet | |
|---|---|
| Display | 6 digits, 7 segment white LED display |
| Sensor type | NPN / PNP |
| Input type | Counter: 5 to 30V DC from Proximity switches, Encoders, Potential free contacts, Limit switches etc. Timer: Potential free contact |
| Input speed | For Counter only: 1) 20Hz (DIP 1 ON) 2) 5KHz (DIP 1 OFF) |
| Accuracy | Timer: ±0.05% Counter: ±2 counts |
| Sensor supply | Inbuilt, 12 VDC @60mA |
| Ranges | Counter: 999999 counts Timer Up |
| Counting direction | Up |
| Reset | 1. For counter - front panel reset key 2. For timer - short terminal 4 & 5 |
| Memory retention | Yes |
| Supply voltage | 12 to 24 VDC |
| Power consumption | 5VA Max. |
| Temperature | Operating: 0 to 50°C (32 to 122°F) Storage: -20 to 75°C (-4 to 167°F) |
| Humidity (non-condensing) | 95% RH |
| Mounting | Panel mount |
