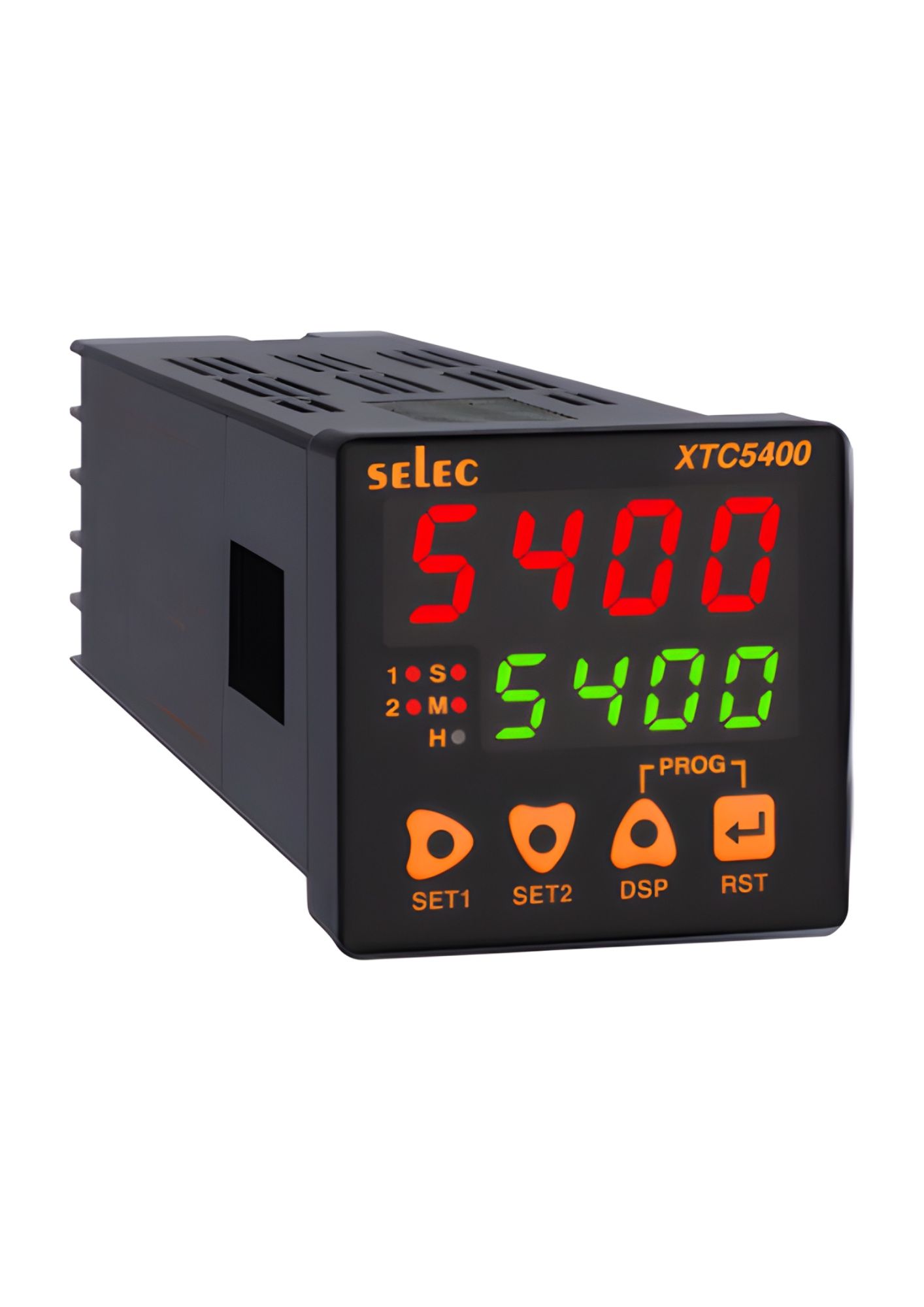

Selec XTC5400-24, 4 digits, 7 segment LED, LED Indication: Relay1, Relay2, Seconds, Minutes, Hours, 48x48mm, Panel Mount
In stock
SKU
XTC5400-24
Special Price
₹2,950.08
Regular Price
₹6,146.00
Check Delivery Options at your Area
FREE SHIPPING
Free Shipping by Surface Only*
SECURE PAYMENT
100% Secure Payment
| Datasheet | |
|---|---|
| Display | 4 digits, 7 segment LED |
| LED indication | Relay1, Relay2, Seconds, Minutes, Hours |
| Sensor type | NPN / PNP |
| Input type | Voltage pulse (3 to 30 VDC) from Proximity switches, Solid state devices, Potential free contact encoder |
| Input speed | a) 3Hz b) 30Hz c) 5kHz |
| Accuracy | Timer: ± 0.05% of setting or 50 ms whichever is greater Counter: ± 2 counts |
| Sensor supply | Inbuilt, 12 VDC, 30mA (short circuit protected) |
| Relay contact | 2 C/O SPST |
| Contact rating | 5A @ 230 VAC |
| Modes | Timer: ON delay, Interval, Cyclic ON first, Cyclic OFF first, Batch Counter: ON delay, Interval, Auto reset, Time pulse repeat, Batch |
| Ranges | Timer: 0 - 99.99 / 0 - 999.9 / 0 - 9999 sec 0 - 99.59 min:sec, 0 - 999.9 / 0 - 9999 min 0 - 99.59 hr:min, 0 - 999.9 / 0 - 9999 hr Counter: -999 to 9999 counts |
| Resolution | 0.01 sec |
| Counting direction | Timer: Down; Counter: Up/Down |
| Set point | 2 |
| Scale factor | 0.001 to 9.999 x 10ⁿ |
| Reset | Front, Remote, Power interruption |
| Memory retention | Yes |
| Configuration lock | Password protected |
| Supply voltage | 90 to 270 VAC/DC (50/60Hz) -15% to +10% tolerance |
| Power consumption | 5VA Max. |
| Temperature | Operating: 0°C to 50°C (32°F to 122°F) Storage: -20°C to 75°C (-4°F to 167°F) |
| Humidity (non-condensing) | 95% RH |
| Mounting | Panel mount |
