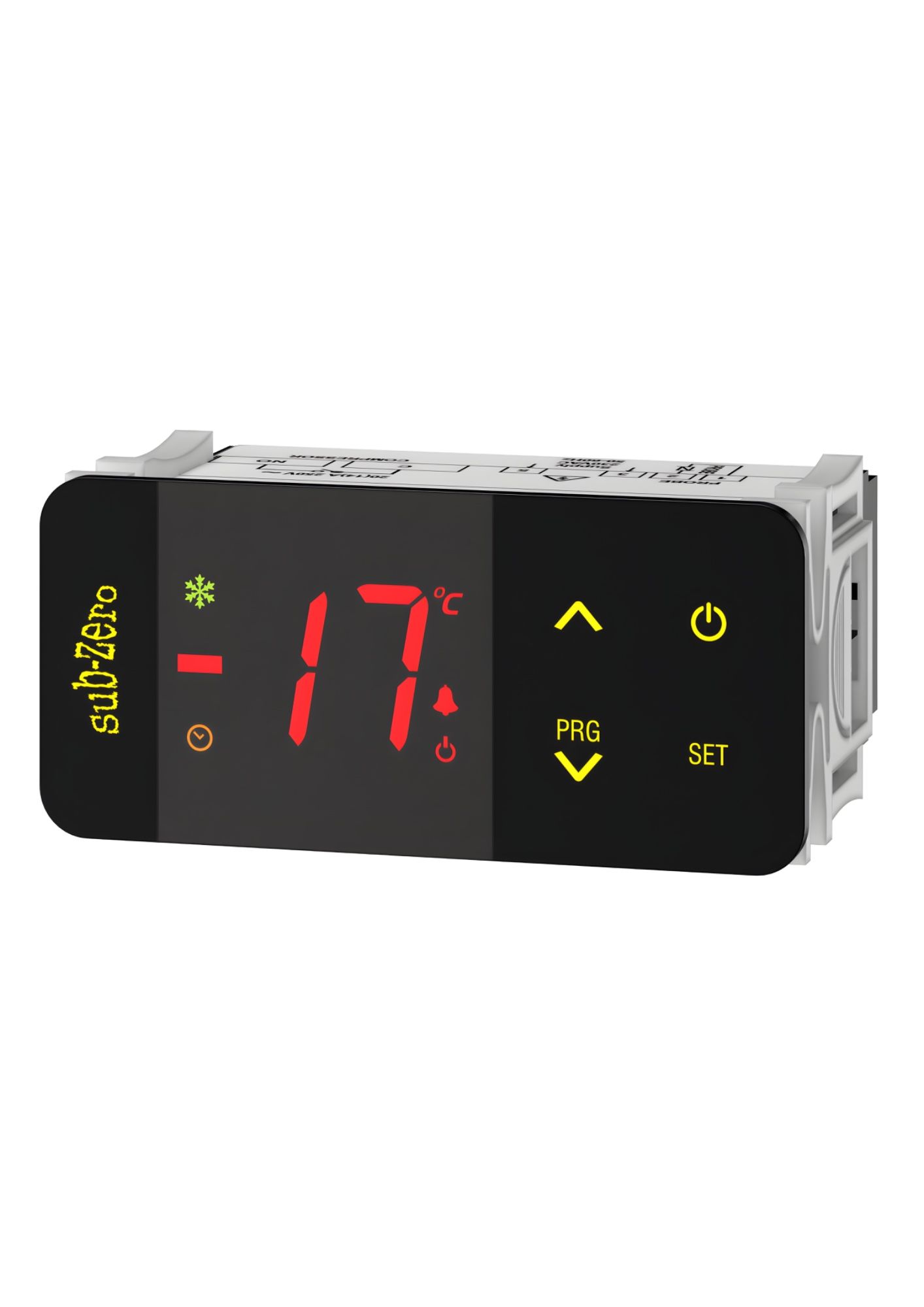

Subzero SZ-7569-T, 7 Segment LED Display, 230V AC, Panel Mount, Touch Sensitive Temperature Controller

In stock

SKU

SZ-7569-T

Special Price ₹625.00 Regular Price ₹1,264.00

(18% GST Extra)

Qty

Add to Wish List

Touch sensitive keypad
Cooling & Heating mode selection
Settable ON & OFF time delay for compressor protection
Password protection for parameters
Auto operation in case of sensor failure or error
High & Low temperature logs
Power OFF through touch key
Applications: General appliances like Deep Freezers, Display Cabinet, Pastry Cabinet, and small Chillers

Check Delivery Options at your Area

FREE SHIPPING

Free Shipping by Surface Only*

100% Secure Payment

Housing: Black ABS plastic, auto-extinguish
Front cover: Polycarbonate plastic, V0 grade
Dimensions: Frontal: 78 × 36 mm, Depth: 59 mm
Panel cutout: 29 × 71 mm
Mounting: Flush panel mounting with fasteners
Protection: IP65 front (with gasket)

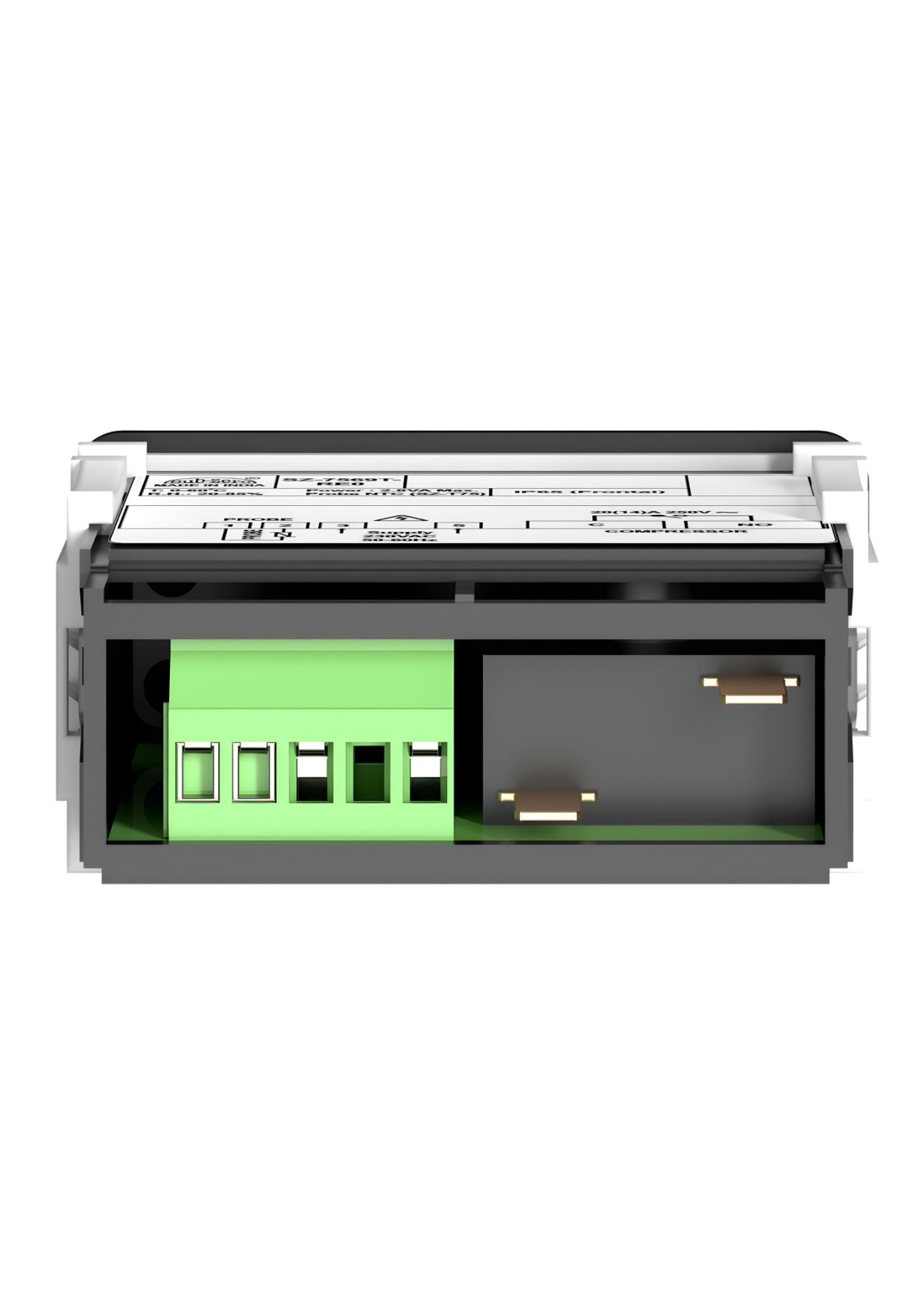

Connections: Screw terminal blocks, < 2.5 sq. mm terminal only
Display: 2 × 17 mm 7-segment display & 5 LEDs for indication
Data storage: Flash APROM memory
Power input: 230 Vac ±10%, 50/60 Hz (standard); others on request
Relay output:
- Comp SPST relay 20(14) A, 250 V AC (for SZ-7569T)
- Comp SPDT relay 8(3) A, 250 V AC (for SZ-7510T)
Operating temperature: 0°C to 60°C (non-condensing)
Operating humidity: 20% to 85% (non-condensing)
Storage temperature: −25°C to 60°C (non-condensing)
Measuring range: −45°C to 99°C
Input: NTC Probe – SZ-T75
Resolution: 1°C
Accuracy: ±1°C
