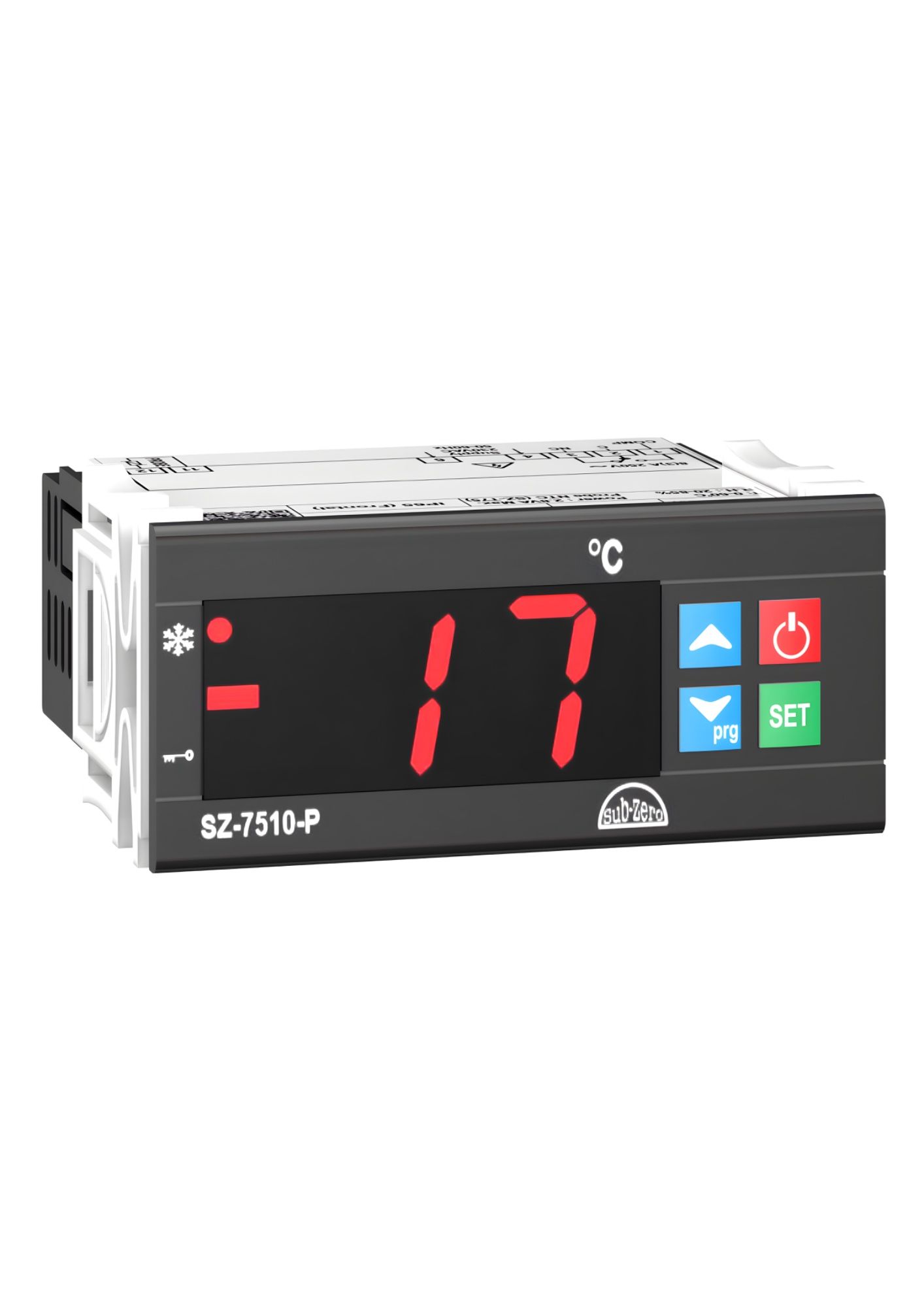

Subzero SZ-7510-P, 7 Segment LED Display, 230V AC, NTC, Panel Mount, Temperature Controller

In stock

SKU

SZ-7510-P

Special Price ₹625.00 Regular Price ₹1,240.00

(18% GST Extra)

Qty

Add to Wish List

Cooling & Heating mode selection
Auto operation in case of sensor failure/error
Power OFF through front key
Applications: General appliances such as deep freezers, display cabinets, pastry cabinets, and small chillers

Check Delivery Options at your Area

FREE SHIPPING

Free Shipping by Surface Only*

100% Secure Payment

Housing: Black ABS plastic, auto-extinguish
Front cover: Polycarbonate plastic
Dimensions:
- Frontal: 75 × 34.5 mm
- Depth: 80 mm
Panel cutout: 29 × 71 mm
Mounting: Flush panel mounting with fasteners
Protection: IP65 (frontal)
Connections: Screw terminal blocks (up to 2.5 sq. mm)
Display: 2 × 14.2 mm (0.56”) LED
Data storage: Flash APROM memory
Power input: 230 Vac ±10%, 50/60 Hz (others on request)
Relay output:
- 1 SPST compressor relay 20(14)A, 250V AC (SZ-7569/29-P)
- 1 SPDT compressor relay 8(3)A, 250V AC (SZ-7510/15/20-P)
- 1 SPDT compressor relay 10(3)A, 250V AC (SZ-7525-P)
Operating temperature: 5°C to 50°C (non-condensing)
Storage temperature: −20°C to 70°C (non-condensing)
Measuring range: −45°C to 99°C
Input: NTC probe – SZ-T75
Resolution: 1°C
Accuracy: ±1°C
Probe tolerance at 25°C: ±0.3°C
Alarm (buzzer): SZ-B75, 10V DC, 10mA (only for SZ-7515/25-P)
