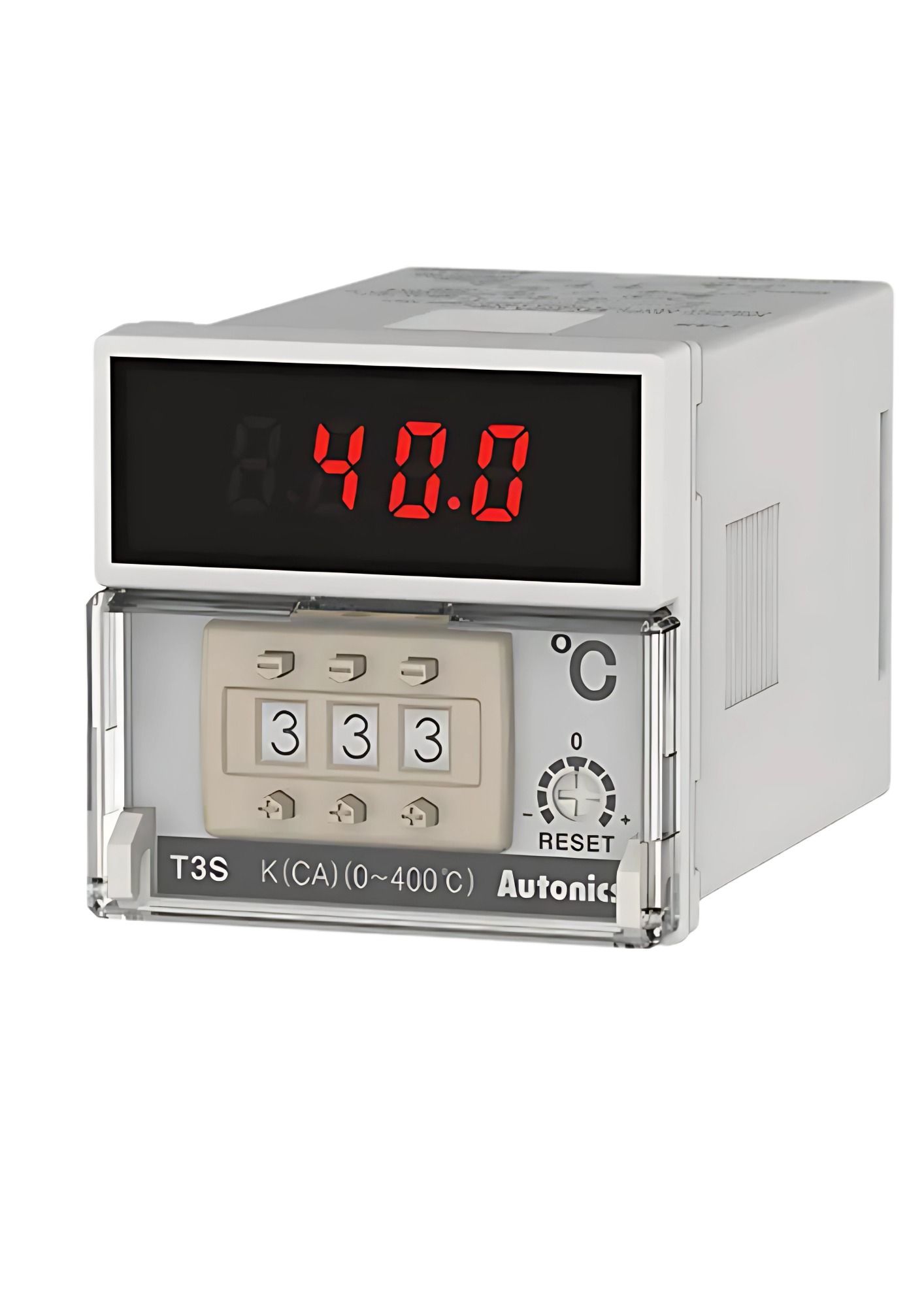

T3S-B4RP4C-N Autonics Thumbwheel Switch Temperature Controller
T3S-B4RP4C-N Autonics Thumbwheel Switch Temperature Controller T3S-B4RP4C-N Autonics Thumbwheel Switch Temperature Controller

T3S-B4RP4C-N Autonics Thumbwheel Switch Temperature Controller

In stock
SKU
T3S-B4RP4C-N
Special Price ₹4,376.00 Regular Price ₹7,957.00
(18% GST Extra)
Add to Wish List
  • Display method: 3-digit 7-segment LED
  • Control method: ON/OFF control, P control
  • Input specification: RTD: DPt100Ω
  • Sampling cycle: 100ms
  • Setting range: 0 to 400℃
  • Control output: Relay (250VAC~ 5A)
  • Power supply: 100-240VAC~ 50/60Hz
Check Delivery Options at your Area

FREE SHIPPING

Free Shipping by Surface Only*

SECURE PAYMENT

100% Secure Payment

  • Display method: 3-digit 7-segment LED
  • Control method: ON/OFF control, P control
  • Input specification: RTD: DPt100Ω
  • Sampling cycle: 100ms
  • Setting range: 0 to 400℃
  • Control output: Relay (250VAC~ 5A)
  • Power supply: 100-240VAC~ 50/60Hz
  • Display accuracy (RTD): At room temperature (23ºC ± 5ºC): (PV ± 0.5% or ±1ºC, select the higher one) ± 1-digit. Out of room temperature range: (PV ± 0.5% or ±2ºC, select the higher one) ± 1-digit
  • Hysteresis (adjustable sensitivity): F.S. 0.5%
  • Proportional band: F.S. 3%
  • Proportional cycle: 20 sec
  • RESET range: F.S. -3 to 3% variable
  • Environment - Ambient temperature: -10 to 50℃, storage: -20 to 60℃
  • Environment - Ambient humidity: 35 to 85% RH, storage: 35 to 85% RH
  • Weight: Approx. 135g (approx. 95g)
