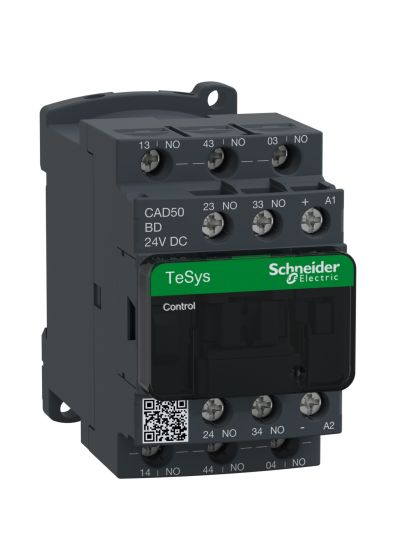

Schneider CAD50BD, TeSys D control relay - 5 NO, 690 V - 24 V DC standard coil
In stock
SKU
CAD50BD
Special Price
₹1,430.00
Regular Price
₹3,575.00
Check Delivery Options at your Area
FREE SHIPPING
Free Shipping by Surface Only*
SECURE PAYMENT
100% Secure Payment
- Range:
- TeSys
- TeSys Deca
- Product name: TeSys CAD
- Product or component type: Control relay
- Device short name: CAD
- Contactor application: Control circuit
- Utilisation category:
- AC-14
- DC-13
- AC-15
- Pole contact composition: 5 NO
- [Ue] rated operational voltage: <= 690 V AC 25...400 Hz
- Control circuit type: DC standard
- [Uc] control circuit voltage: 24 V DC
- [Uimp] rated impulse withstand voltage: 6 kV conforming to IEC 60947
- [Ith] conventional free air thermal current: 10 A (at 60 °C)
- Irms rated making capacity:
- 140 A AC conforming to IEC 60947-5-1
- 250 A DC conforming to IEC 60947-5-1
- [Icw] rated short-time withstand current:
- 100 A - 1 s
- 120 A - 500 ms
- 140 A - 100 ms
- Associated fuse rating: 10 A gG conforming to IEC 60947-5-1
- [Ui] rated insulation voltage:
- 600 V UL certified
- 600 V CSA certified
- 690 V conforming to IEC 60947-5-1
- Mounting support:
- Rail
- Plate
- Connections - terminals:
- Screw clamp terminals 1 cable(s) 1…4 mm² flexible without cable end
- Screw clamp terminals 2 cable(s) 1…4 mm² flexible without cable end
- Screw clamp terminals 1 cable(s) 1…4 mm² flexible with cable end
- Screw clamp terminals 2 cable(s) 1…2.5 mm² flexible with cable end
- Screw clamp terminals 1 cable(s) 1…4 mm² solid without cable end
- Screw clamp terminals 2 cable(s) 1…4 mm² solid without cable end
- Tightening torque:
- 1.7 N.m - with screwdriver Philips No 2
- 1.7 N.m - with screwdriver flat Ø 6 mm
- 1.7 N.m - with screwdriver pozidriv No 2
- Control circuit voltage limits:
- 0.1...0.25 Uc (-40…70 °C): drop-out DC
- 0.7...1.25 Uc (-40…60 °C): operational DC
- 1...1.25 Uc (60…70 °C): operational DC
- Operating time:
- 53...72 ms coil energisation and NO closing
- 16...24 ms coil de-energisation and NO opening
- Mechanical durability: 30 Mcycles
- Maximum operating rate: 180 cyc/mn
- Time constant: 28 ms
- Inrush power in W: 5.4 W (at 20 °C)
- Hold-in power consumption in W: 5.4 W (at 20 °C)
- Minimum switching voltage: 17 V
- Minimum switching current: 5 mA
- Non-overlap time:
- 1.5 ms on energisation between NC and NO contact
- 1.5 ms on de-energisation between NC and NO contact
- Insulation resistance: > 10 MOhm
- Mechanical robustness:
- Shocks control relay open: 10 Gn for 11 ms conforming to IEC 60068-2-27
- Shocks control relay closed: 15 Gn for 11 ms conforming to IEC 60068-2-27
- Vibrations control relay open: 2 Gn, 5...300 Hz conforming to IEC 60068-2-6
- Vibrations control relay closed: 4 Gn, 5...300 Hz conforming to IEC 60068-2-6
- Height: 77 mm
- Width: 45 mm
- Depth: 93 mm
- Net weight: 0.58 kg
