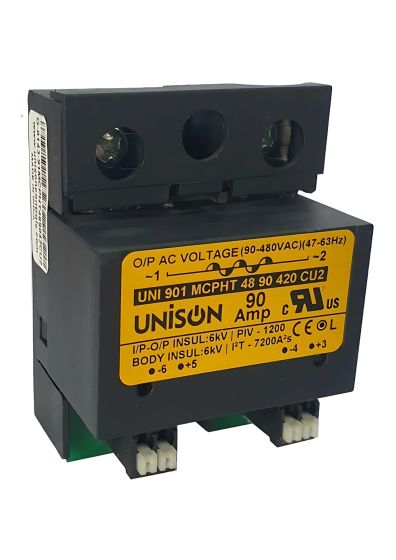

UNI 901 MCPHT 48 90 420 CU2 ||Analog Input AC Output, 90A Solid State Relay, Single Phase
UNI 901 MCPHT 48 90 420 CU2 ||Analog Input AC Output, 90A Solid State Relay, Single Phase

UNI 901 MCPHT 48 90 420 CU2 ||Analog Input AC Output, 90A Solid State Relay, Single Phase

Be the first to review this product
In stock
SKU
UNI 901 MCPHT 48 90 420 CU2
₹2,565.00
(18% GST Extra)
Add to Wish List
  • Microcontroller based SCR power controller
  • Input 4~20mA/0~10V DC
  • Short Circuit Protection by "B" Curve DP MCB
  • 90Amp. Analog Solid State Relay
  • Output working voltage 24V DC
  • For 1% accuracy, sine wave area based calculation
Check Delivery Options at your Area

FREE SHIPPING

Free Shipping by Surface Only*

SECURE PAYMENT

100% Secure Payment

5

Maximum load current (Amps) 90 Amp.
Input 4~20mA/0~10V DC
Output Auto Detection: 90~480V AC (47-63 Hz)
PIV 1600Vpk
I²T 7200A²S for 9.6mS
Body isolation 6kV for 1min
I/P. to O/P. isolation 6kV for 1min
Input LED Indication Green
Weight 130gms
Size L(87mm) W(45mm) H(34.1mm)
Product Variants

No specifications available for this product.
