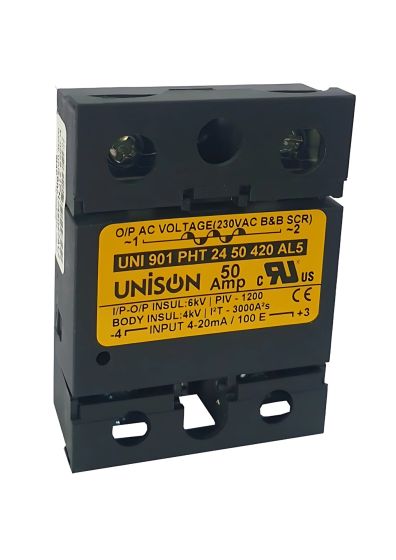

UNI 901 PHT 24 50 420 AL5 ||Analog Input AC Output, 50A Solid State Relay, Single Phase
UNI 901 PHT 24 50 420 AL5 ||Analog Input AC Output, 50A Solid State Relay, Single Phase

UNI 901 PHT 24 50 420 AL5 ||Analog Input AC Output, 50A Solid State Relay, Single Phase

Be the first to review this product
In stock
SKU
UNI 901 PHT 24 50 420 AL5
Special Price ₹825.00 Regular Price ₹855.00
(18% GST Extra)
Add to Wish List
  • Lowest thickness 22.5mm with 5mm Aluminium Plate
  • Input : 4 to 20mA/<100E or 0-10 VDC/560 Ω
  • Output : 230VAC or 440VAC (47-63 Hz), 50 Amp
  • Thyristor controller (Phase Angle control SSR)
  • PIV : 1200Vpk, I²T : 3000A²S for 9.6mS
  • Body insulation : 4kV for 1min
  • I/P. to O/P. insulation : 6kV for 1min
  • Inbuilt surge voltage protection of 2700Vrms
  • Short Circuit Protection by “B” Curve DP MCB
  • Resistive load Max 15 A SC protect by 16 A DP MCB
Check Delivery Options at your Area

FREE SHIPPING

Free Shipping by Surface Only*

SECURE PAYMENT

100% Secure Payment

Maximum load current (Amps) 50 Amp.
Input 4~20mA/0~10V DC
Output 230V AC or 440V AC (47-63 Hz)
PIV 1200Vpk
I²T 3000A²S for 9.6mS
Body isolation 4kV for 1min
I/P. to O/P. isolation 6kV for 1min
Input LED Indication Green
Weight 110gms
Size L(68mm) W(45mm) H(22.5mm)
