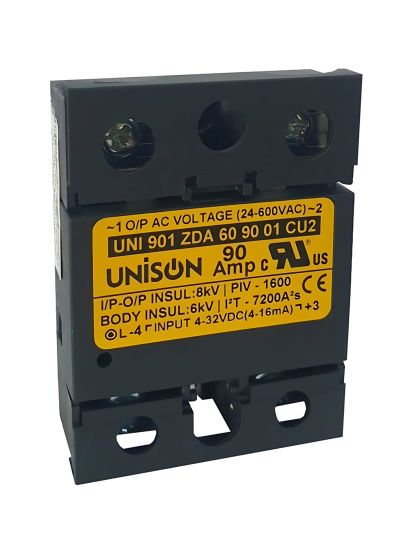

UNI 901 ZDA 60 90 01 CU2 ||DC Input AC Output, 90A Solid State Relay, Single Phase
UNI 901 ZDA 60 90 01 CU2 ||DC Input AC Output, 90A Solid State Relay, Single Phase

UNI 901 ZDA 60 90 01 CU2 ||DC Input AC Output, 90A Solid State Relay, Single Phase

Be the first to review this product
In stock
SKU
UNI 901 ZDA 60 90 01 CU2
₹914.00
(18% GST Extra)
Add to Wish List
  • Lowest thickness 19.5mm with 2mm Copper Plate
  • Inbuilt surge voltage protection of 2700Vrms
  • Short Circuit Protection by "B" Curve DP MCB
  • 90Amp. DC to AC Solid State Relay
  • Output working voltage 24-600 VAC
  • Zero Cross Over SSR
Check Delivery Options at your Area

FREE SHIPPING

Free Shipping by Surface Only*

SECURE PAYMENT

100% Secure Payment

Maximum load current (Amps) 90 Amp.
Input 4-32VDC/4-16mA
Output 24-600VAC (47-63 Hz)
PIV 1600Vpk
I²T 7200A²S for 9.6mS
Body isolation 6kV for 1min
I/P. to O/P. isolation 8kV for 1min
Input LED Indication Green
Weight 110gms
Size L(68mm) W(45mm) H(22.5mm)
