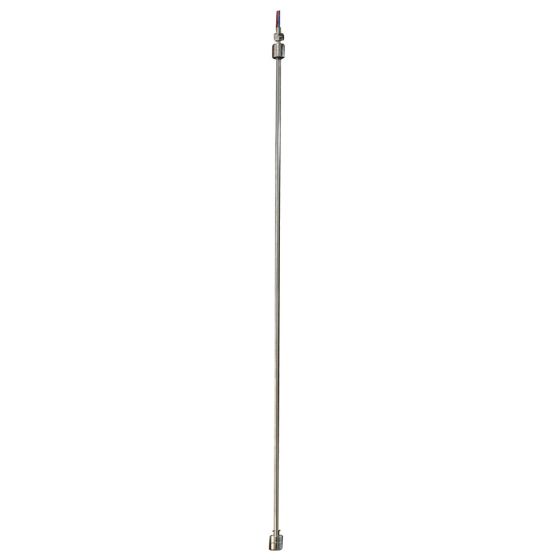

PSB2-1000-2-2-S||1000mm Vertical level Sensor, two Ball two Point, SS Body
In stock
SKU
PSB2-1000-2-2-S
Special Price
₹2,112.50
Regular Price
₹3,250.00
Check Delivery Options at your Area
FREE SHIPPING
Free Shipping by Surface Only*
SECURE PAYMENT
100% Secure Payment
- Locking ring: SS304
- Float Ball: SS304 (Float Ball 2828)
- Float stem: SS304
- O Ring: Transparent silicone material
- Nuts: M12 SS304
- Wire: UL3122 24AWG, Silicone insulated for high temp. blue black & red wire
- Min. Shock Resistance: 30G
- Suitable Temperature: -20°C~100°C (Non Freezing)
- Min. Vibration: 30G (10~50Hz)
- Humidity: 95% RH (80°C)
- Waterproof: (Float Ball) 6% (1000hr)
- For: Liquid
- Insulation resistance: ≥ 100MΩ
- Contact resistance: ≤ 0.4Ω
- Max. limiting Current: 1.0A
- Max. Switching Current: 0.5A
- Max. Switching Voltage: 100V
- Max. Contact Power: 10W
- Switch Type: Normally Open (NO)
- Reed: 10W
- Magnet: Ferrite
- Resin: Black High Temp. resin
- Operation Life: 1*10⁶ (DC: 5V, 10mA)
