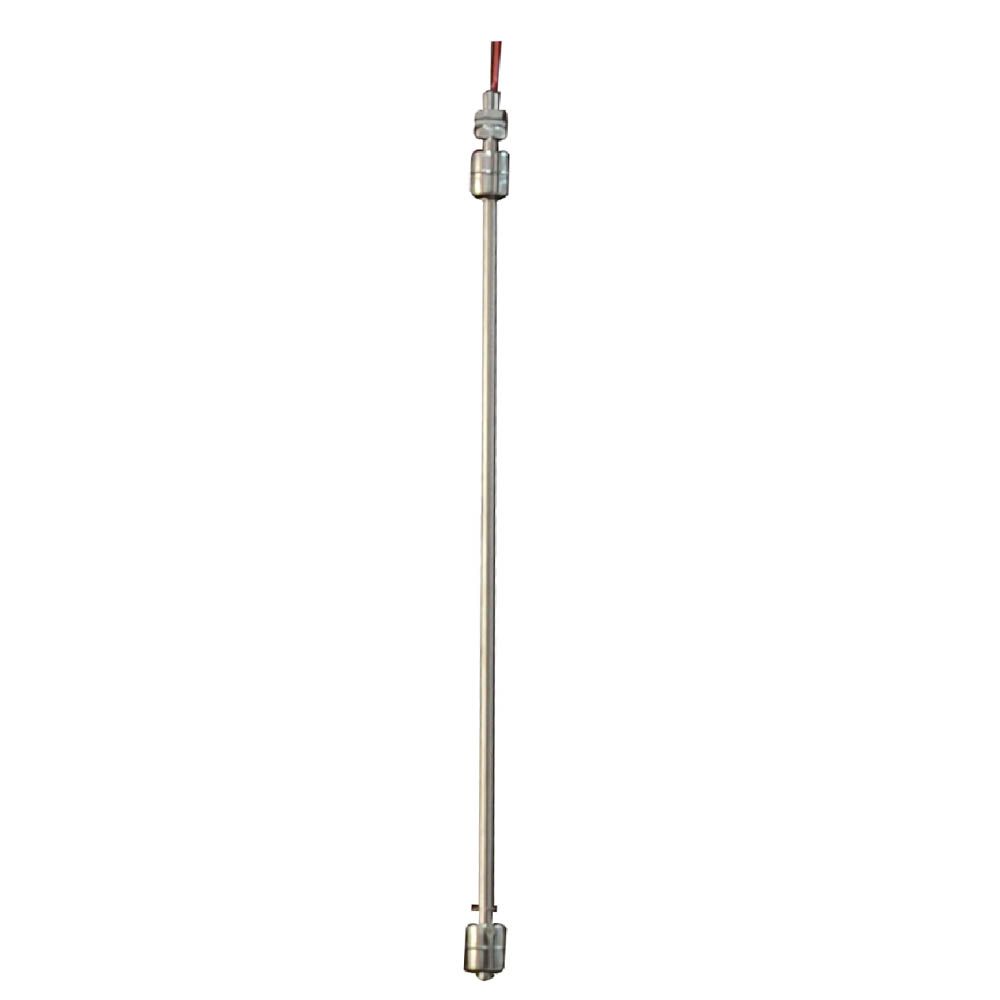

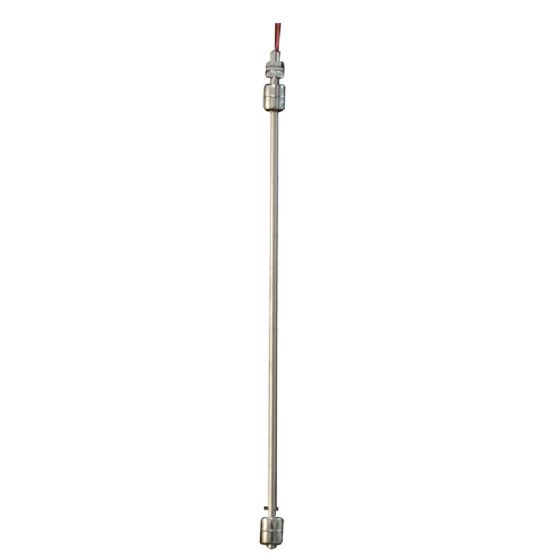

PSB2-500-2-2-S ||500mm Vertical level Sensor, two Ball two Point, SS Body
PSB2-500-2-2-S ||500mm Vertical level Sensor, two Ball two Point, SS Body

PSB2-500-2-2-S ||500mm Vertical level Sensor, two Ball two Point, SS Body

In stock
SKU
PSB2-500-2-2-S
Special Price ₹1,722.50 Regular Price ₹2,650.00
(18% GST Extra)
Add to Wish List
  • Stem Length 500mm
  • Suitable for 150°C
  • Nut Ø12, Pitch 1.25
  • Wire Length 200mm
  • Float Material SS 304
  • Temp. -40°~125°C
  • For Liquid
Check Delivery Options at your Area

FREE SHIPPING

Free Shipping by Surface Only*

SECURE PAYMENT

100% Secure Payment

  • Locking ring: SS304
  • Float Ball: SS304 (Float Ball 2828)
  • Float stem: SS304
  • O Ring: Transparent silicone material
  • Nuts: M12 SS304
  • Wire: UL3122 24AWG, Silicone insulated for high temp. blue black & red wire
  • Min. Shock Resistance: 30G
  • Suitable Temperature: -20°C~100°C (Non Freezing)
  • Min. Vibration: 30G (10~50Hz)
  • Humidity: 95% RH (80°C)
  • Waterproof: (Float Ball) 6% (1000hr)
  • For: Liquid
  • Insulation resistance: ≥ 100MΩ
  • Contact resistance: ≤ 0.4Ω
  • Max. limiting Current: 1.0A
  • Max. Switching Current: 0.5A
  • Max. Switching Voltage: 100V
  • Max. Contact Power: 10W
  • Switch Type: Normally Open (NO)
  • Reed: 10W
  • Magnet: Ferrite
  • Resin: Black High Temp. resin
  • Operation Life: 1*10⁶ (DC: 5V, 10mA)
