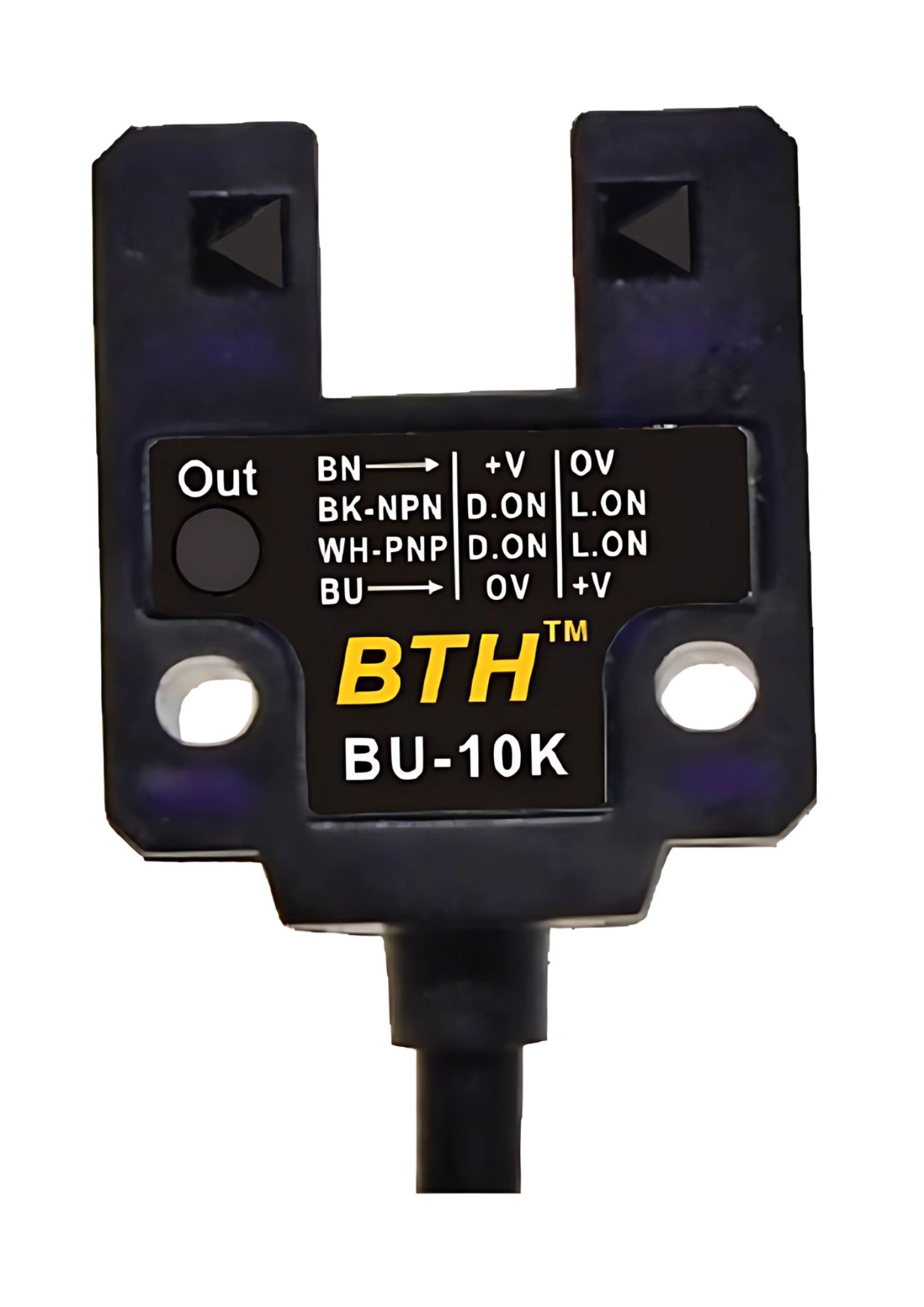

BU-10K||10mm Slot U-Shape Photo Sensor, PNP/NPN, NO/NC Selectable
BU-10K||10mm Slot U-Shape Photo Sensor, PNP/NPN, NO/NC Selectable

BU-10K||10mm Slot U-Shape Photo Sensor, PNP/NPN, NO/NC Selectable

In stock
SKU
BU-10K
Special Price ₹1,462.50 Regular Price ₹2,250.00
(18% GST Extra)
Add to Wish List
  • High-speed response, 1 kHz
  • Slot width 10mm, suitable for the detection of small objects.
  • Infrared beam axis 1mm width.
  • Not affected by outside light
  • Selectable Dark on / Light on
  • Selectable NPN / PNP
Check Delivery Options at your Area

FREE SHIPPING

Free Shipping by Surface Only*

SECURE PAYMENT

100% Secure Payment

  • Output Type: PNP(NO) Dark on / PNP(NC) Light on / NPN(NO) Dark on / NPN(NC) Light on
  • Slot Width: 10 mm
  • Emitting Light: Infrared LED 940 nm
  • Min. detection object : Opaque (Ø0.5 x 10.0 mm)
  • Operating Voltage: 12~24VDC
  • Current Consumption: 18 mA Max.
  • Load Current: 100ma Max. at 24VDC
  • Response Time: 1 ms Max.
  • Ambient illumination: Incandescent light / 1,000 lux max.
  • Insulation Resistance: 20MΩ min. (DC500V)
  • Voltage With Standability: AC500V 60Hz for 60 Sec.
  • Operating Temperature: -10°C ~ + 55°C
  • Ambient Humidity: 35% ~ 85% RH
  • Vibration resistance: 1.5-mm peak-to-peak amplitude, 10 to 55 Hz, 2 hours each in X, Y, and Z directions
  • Shock Resistance: 50G, repeated 10 times each in X, Y, and Z directions
  • Material: PC
  • Protection Degree: IP64
  • Wiring Method: Pre-wired Ø4.2 x 2 M / 3-wires
  • Weight: Approx. 55g
