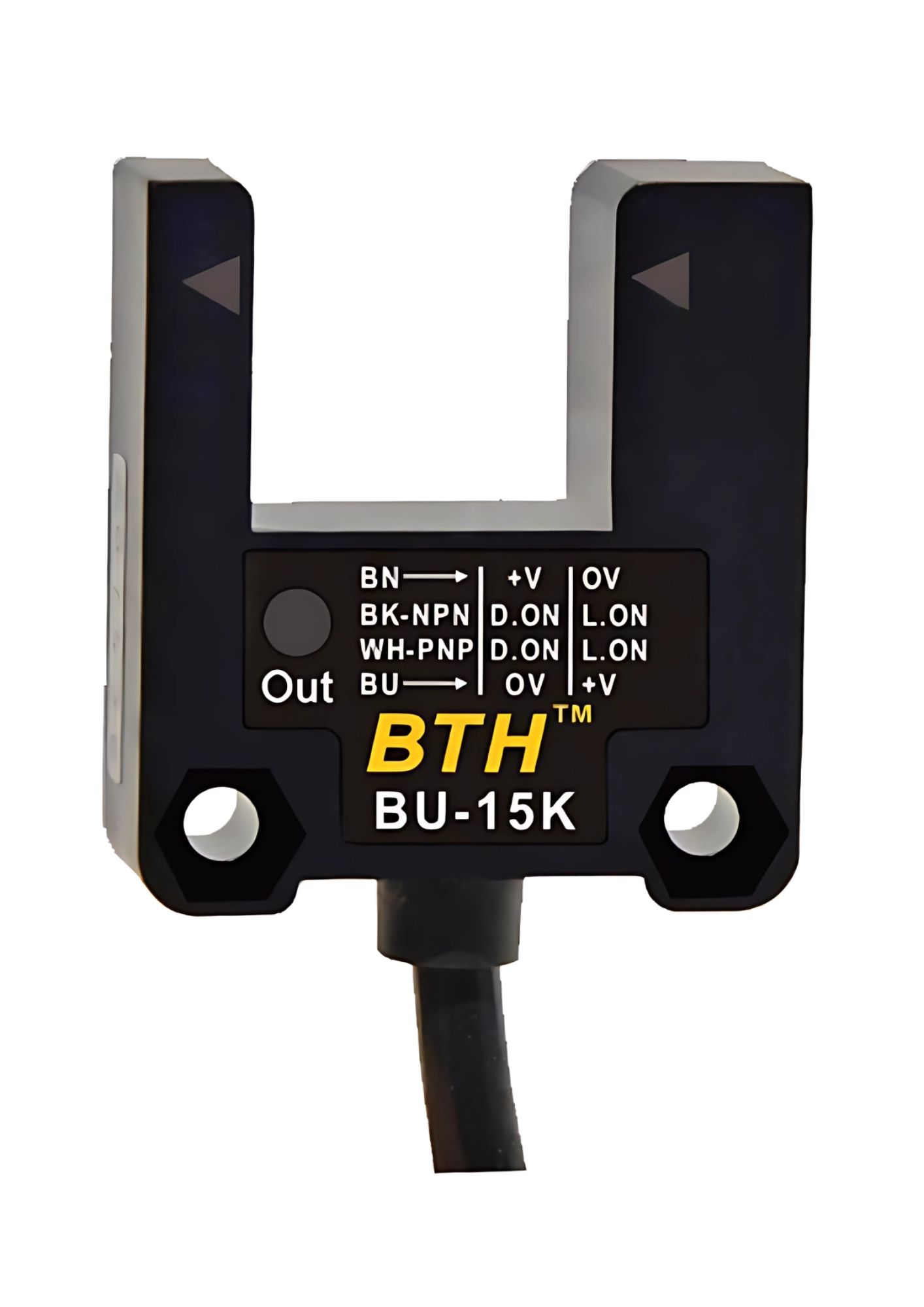

BU-15K||15mm Slot U-Shape Photo Sensor, PNP/NPN, NO/NC Selectable
BU-15K||15mm Slot U-Shape Photo Sensor, PNP/NPN, NO/NC Selectable

BU-15K||15mm Slot U-Shape Photo Sensor, PNP/NPN, NO/NC Selectable

Out of stock
SKU
BU-15K
Special Price ₹1,859.00 Regular Price ₹2,860.00
(18% GST Extra)
  • High-speed Response 1 kHz
  • Slot width 15mm
  • Reverse Power Polarity and Short-circuit (Overcurrent) Protection circuit
  • BU-15K has a better Prevention of outside Light.
  • Selectable Dark ON / Light ON
  • Selectable PNP / NPN

FREE SHIPPING

Free Shipping by Surface Only*

SECURE PAYMENT

100% Secure Payment

  • Output Type: PNP(NO) Dark on / PNP(NC) Light on / NPN(NO) Dark on / NPN(NC) Light on
  • Slot Width: 10 mm
  • Hysteresis: <0.1mm
  • Emitting Light: Infrared LED 940 nm
  • Min. detection object : Opaque (Ø0.5 x 10.0 mm)
  • Operating Voltage: 12~24VDC
  • Current Consumption: 18 mA Max.
  • Load Current: 100ma Max. at 24VDC
  • Response Time: 1 ms Max.
  • Ambient illumination: Incandescent light / 1,000 lux max.
  • Insulation Resistance: 20MΩ min. (DC500V)
  • Voltage With Standability: AC500V 60Hz for 60 Sec.
  • Operating Temperature: -10°C ~ + 55°C
  • Ambient Humidity: 35% ~ 85% RH
  • Vibration resistance: 1.5-mm peak-to-peak amplitude, 10 to 55 Hz, 2 hours each in X, Y, and Z directions
  • Shock Resistance: 50G, repeated 10 times each in X, Y, and Z directions
  • Material: PC
  • Protection Degree: IP64
  • Wiring Method: Pre-wired Ø4.2 x 2 M / 4-wires
  • Weight: Approx. 55g
