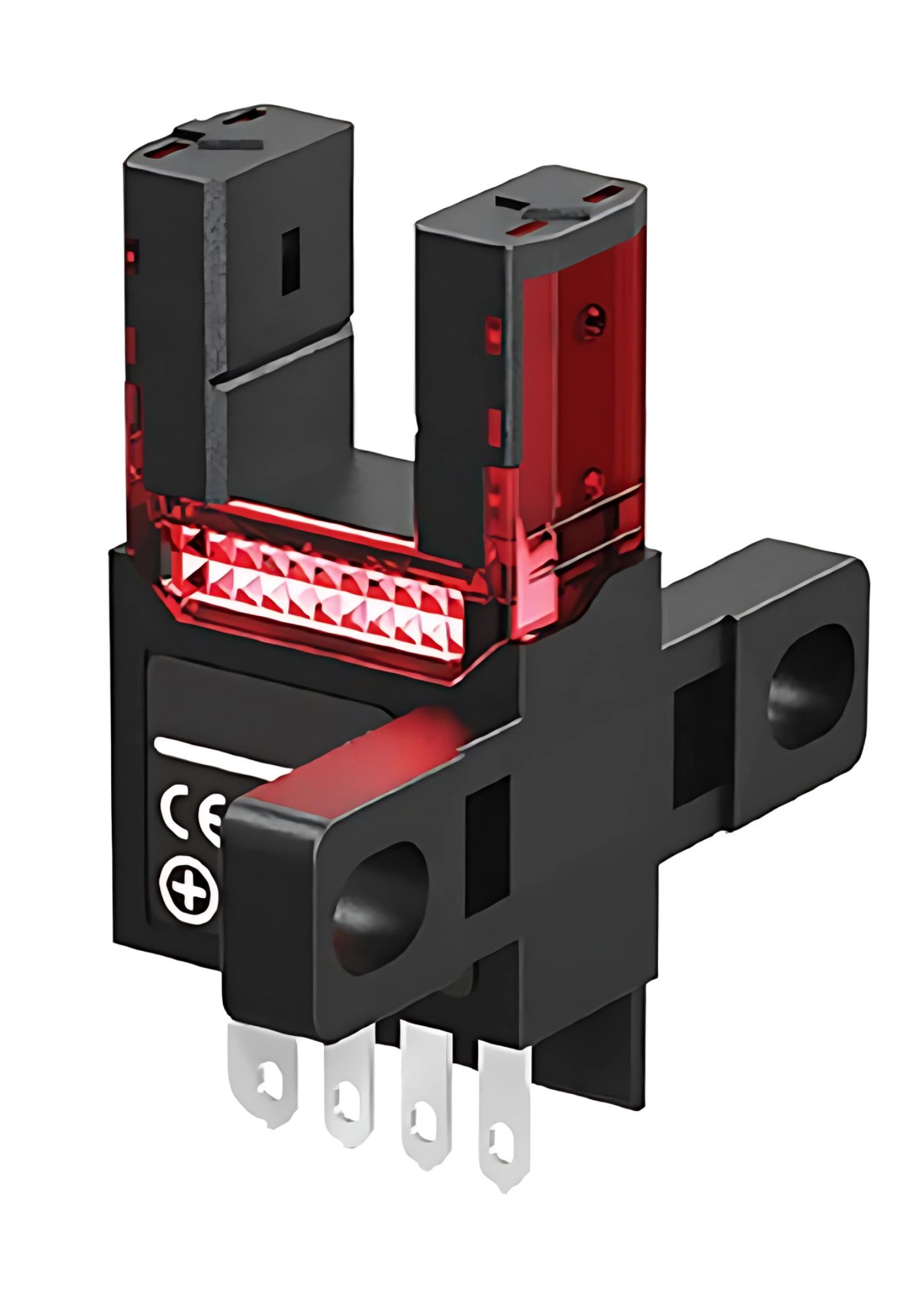

BU-06TP||T type, 6mm Slot U-Shape Photo Sensor, Connector type, PNP Output

BU-06TP||T type, 6mm Slot U-Shape Photo Sensor, Connector type, PNP Output

BU-06TP||T type, 6mm Slot U-Shape Photo Sensor, Connector type, PNP Output

Be the first to review this product

In stock

SKU

BU-06TP

Special Price ₹633.75 Regular Price ₹975.00

Check Delivery Options at your Area

FREE SHIPPING

Free Shipping by Surface Only*

SECURE PAYMENT

100% Secure Payment

Output Type: PNP Light ON /Dark ON Selectable
Sensing Distance: 6mm
Emitting Light: Infrared LED 940 nm
Beam Axis: 0.8x2mm width
Operating Voltage: 10~30VDC
Current Consumption: 15 mA Max.
Load Current: 100ma Max. at 24VDC
Response Time: 0.5 ms Max.
Insulation Resistance: 20MΩ min. (DC500V)
Voltage With Standability: AC1000V 60Hz for 60 Sec.
Operating Temperature: 0°C ~ + 60°C
Ambient Humidity: 35% ~ 85% RH
Material: ABS
Protection Degree: IP50
Option: CT-04
Weight: Approx. 4g
