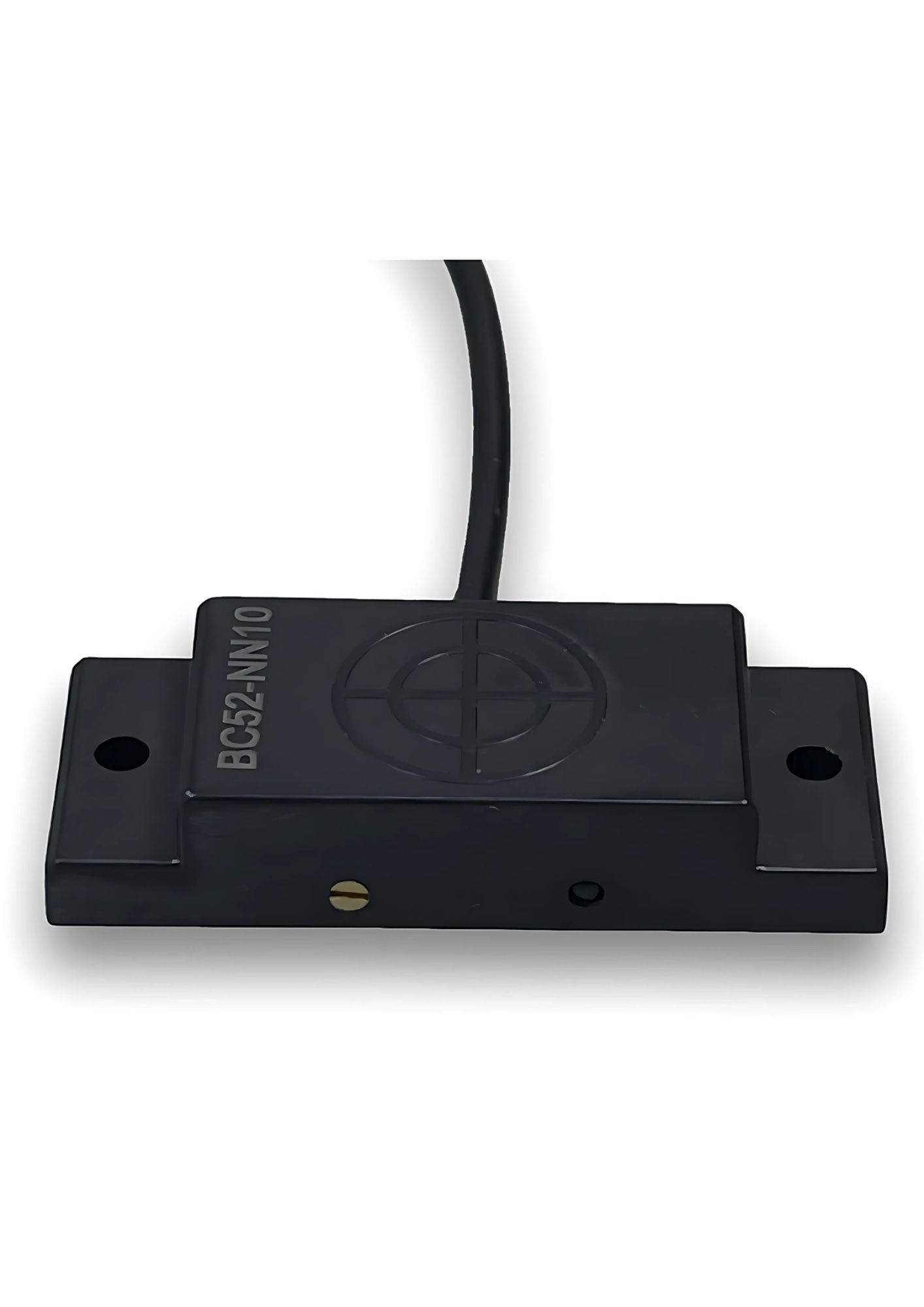

BC52-NN10 ||Block Design Capacitive Proximity Sensor, Sensing Range1-10mm, NPN NO

In stock

SKU

BC52-NN10

Special Price ₹1,137.50 Regular Price ₹1,750.00

(18% GST Extra)

Qty

Add to Wish List

Check Delivery Options at your Area

FREE SHIPPING

Free Shipping by Surface Only*

100% Secure Payment

Function: NPN NO
Size: 50*20*10mm
Sensing Distance: 1~10mm Adjustable
Differential travel: 4% to 20% of sensing distance
Function Indicator: LED
Power Supply (Operating Voltage): 10-40VDC
Voltage Drop: <1.5V
Ripple: <10%
No load current: <10mA
Output current max. : 150mA
Leakage current: <0.01mA
Switching frequency: 50Hz
Response Time: 1.5ms
Switching hysteresis: <15%(Sr)
Repeat accuracy: <5%(Sr)
Protection category: IP65
Operating Temperature: - 25ºC ~ + 70ºC (with no icing or condensation)
Temperature influence: ±20% max. of sensing distance at 23°C in the operating temp. range
Ambient humidity range: Operating/Storage
Short circuit protection: YES
Overload trip point: 180mA
EMC: RFI>3V/M / EFT>1KV / ESD>4KV(contact)
Vibration resistance: 10 to 55 Hz, 1.5-mm double amplitude for 2 hours each in X, Y, and Z directions
Housing: ABS
Connection: Pre-wired 3x0.15 2M PVC
