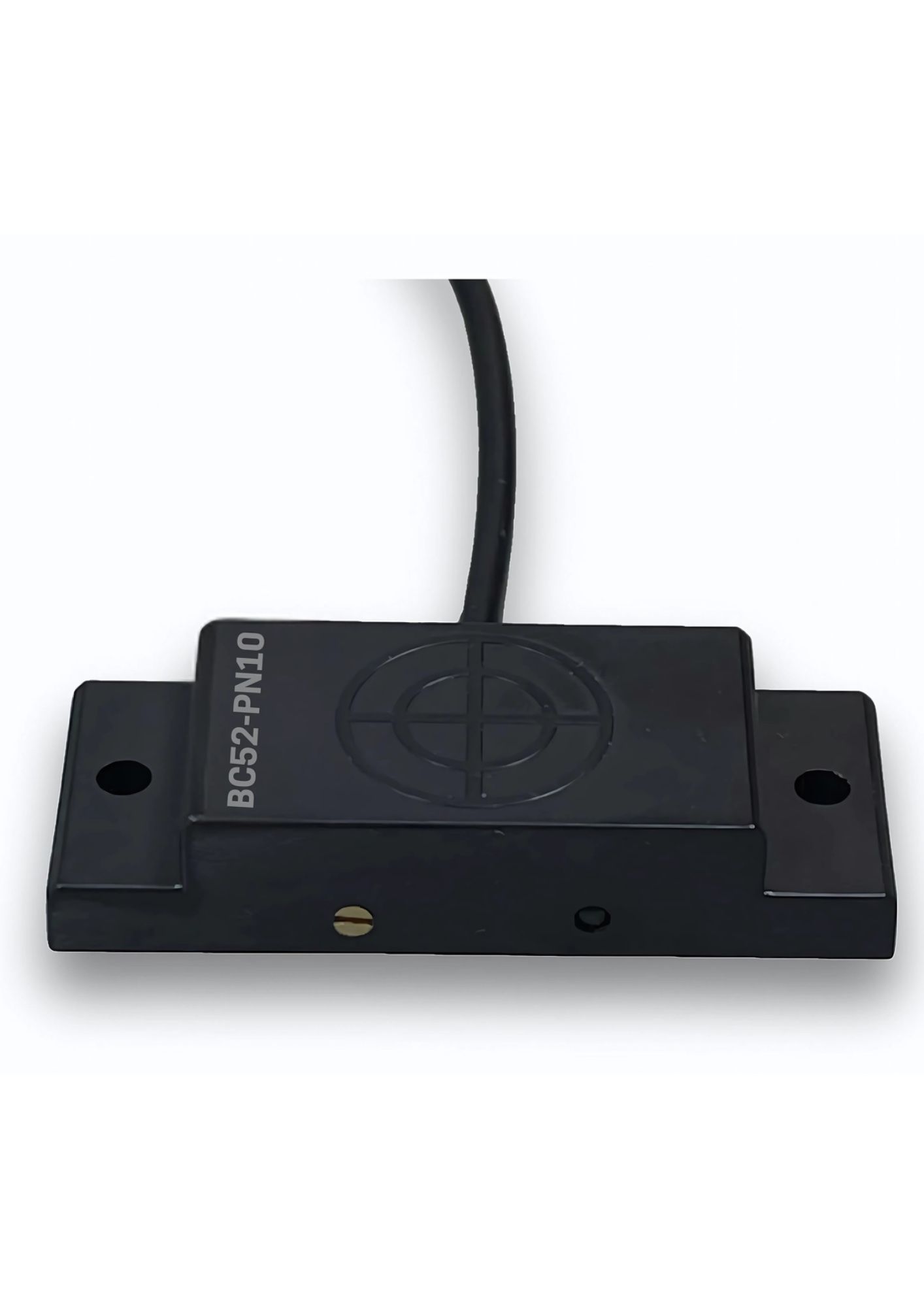

BC52-PN10 ||BC52-PN10||Block Design Capacitive Proximity Sensor, Sensing Range1-10mm, PNP NO
BC52-PN10 ||BC52-PN10||Block Design Capacitive Proximity Sensor, Sensing Range1-10mm, PNP NO

BC52-PN10 ||BC52-PN10||Block Design Capacitive Proximity Sensor, Sensing Range1-10mm, PNP NO

In stock
SKU
BC52-PN10
Special Price ₹1,137.50 Regular Price ₹1,750.00
(18% GST Extra)
Add to Wish List
  • Level detection
  • Solid body object detection
  • Bulk material - Granules, pellets, powder, sand etc.
  • Liquids - (slightly viscous or liquid media) oils, grease, water, alcohol etc.
Check Delivery Options at your Area

FREE SHIPPING

Free Shipping by Surface Only*

SECURE PAYMENT

100% Secure Payment

  • Function: PNP NO
  • Size: 50*20*10mm
  • Sensing Distance: 1~10mm Adjustable
  • Differential travel: 4% to 20% of sensing distance
  • Function Indicator: LED
  • Power Supply (Operating Voltage): 10-40VDC
  • Voltage Drop: <1.5V
  • Ripple: <10%
  • No load current: <10mA
  • Output current max. : 150mA
  • Leakage current: <0.01mA
  • Switching frequency: 50Hz
  • Response Time: 1.5ms
  • Switching hysteresis: <15%(Sr)
  • Repeat accuracy: <5%(Sr)
  • Protection category: IP65
  • Operating Temperature: - 25ºC ~ + 70ºC (with no icing or condensation)
  • Temperature influence: ±20% max. of sensing distance at 23°C in the operating temp. range
  • Ambient humidity range: Operating/Storage
  • Short circuit protection: YES
  • Overload trip point: 180mA
  • EMC: RFI>3V/M / EFT>1KV / ESD>4KV(contact)
  • Vibration resistance: 10 to 55 Hz, 1.5-mm double amplitude for 2 hours each in X, Y, and Z directions
  • Housing: ABS
  • Connection: Pre-wired 3x0.15 2M PVC
