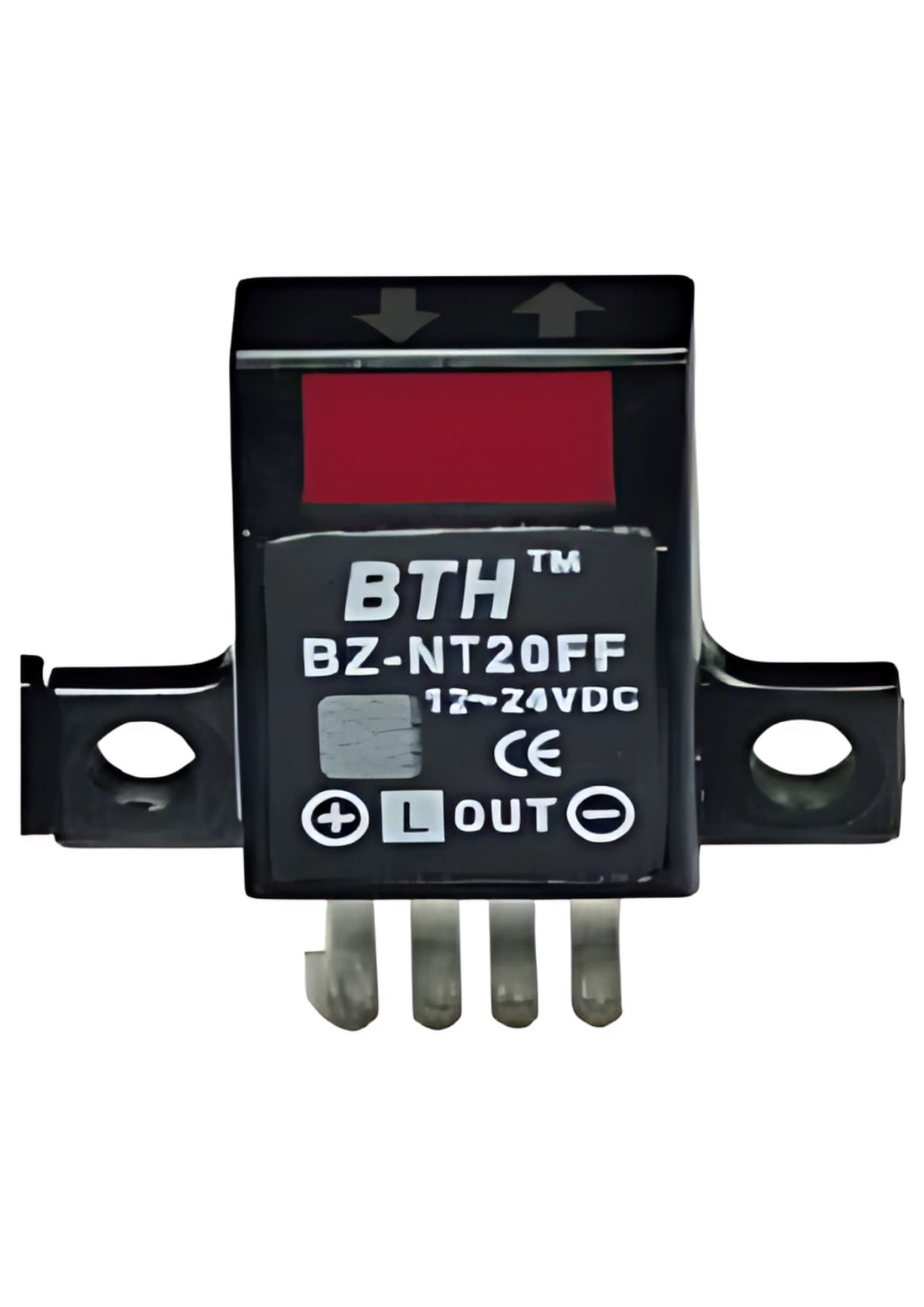

BZ-NT20FF||Diffuse Micro Photo Sensor, Sensing Range 20mm, NPN
BZ-NT20FF||Diffuse Micro Photo Sensor, Sensing Range 20mm, NPN

BZ-NT20FF||Diffuse Micro Photo Sensor, Sensing Range 20mm, NPN

In stock
SKU
BZ-NT20FF
Special Price ₹1,478.75 Regular Price ₹2,275.00
(18% GST Extra)
Add to Wish List
  • Front/Top Sensing models available
  • Light ON/Dark ON Selectable (NPN Models Only)
  • Sensing Distance up to 20mm.
Check Delivery Options at your Area

FREE SHIPPING

Free Shipping by Surface Only*

SECURE PAYMENT

100% Secure Payment

  • Output Mode: NPN
  • Sensing Distance: 20mm (black non-glossy 10x10 cm)
  • Emitting Light: Infrared LED 940 nm
  • Operation Mode: NPN NO (Dark on) / NC (Light on) Selectable
  • Operating Voltage: 12~24VDC
  • Current Consumption: 25 mA Max.
  • Load Current: 100ma Max. at 24VDC
  • Response Time: 1 ms Max.
  • Ambient illumination: 6,000 lux max.
  • Insulation Resistance: 20MΩ min. (DC500V)
  • Voltage With Standability: AC1000V 60Hz for 60 Sec.
  • Operating Temperature: -20°C ~ + 45°C
  • Ambient Humidity: 35% ~ 85% RH
  • Material: PC
  • Wiring Method: CT-04 (Optional)
  • Weight: Approx. 3g
