BPR12-NK200F||Diffuse Photo Sensor, Diameter 12mm, Sensing Range 200mm, NPN
BPR12-NK200F||Diffuse Photo Sensor, Diameter 12mm, Sensing Range 200mm, NPN

BPR12-NK200F||Diffuse Photo Sensor, Diameter 12mm, Sensing Range 200mm, NPN

In stock
SKU
BPR12-NK200F
Special Price ₹1,202.50 Regular Price ₹1,850.00
(18% GST Extra)
Add to Wish List

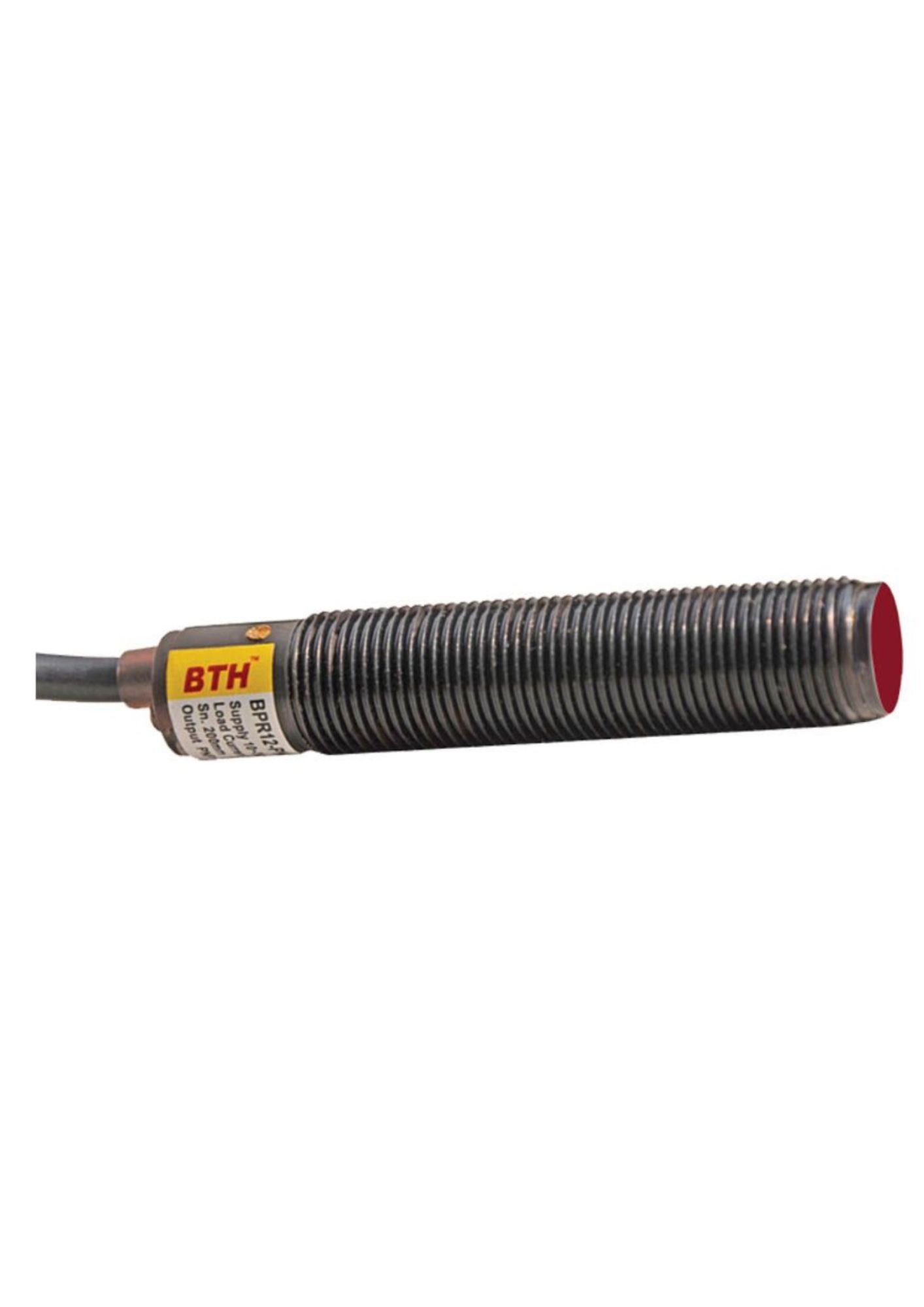

  • Threaded cylindrical Photoelectric sensor
  • Short-circuit protection and reverse polarity protection
  • Sensitivity adjuster
  • Standard M12 cylindrical metal tube
Check Delivery Options at your Area

FREE SHIPPING

Free Shipping by Surface Only*

SECURE PAYMENT

100% Secure Payment

  • Output Mode: NPN
  • Sensing Distance: 200mm
  • Emitting Light: Infrared LED 875 nm
  • Operating Voltage: 10~30VDC
  • Current Consumption: <30 mA Max. (white paper 100x100mm)
  • Load Current: 200ma Max. at 24VDC
  • Operation Mode: NO (Dark on) / NC (Light on) by the wire Selection
  • Response Time: 1 ms Max.
  • Insulation resistance: 20MΩ min. (DC500V)
  • Voltage With Standability: AC1000V 60Hz for 60 Sec.
  • Operating Temperature: -20°C ~ + 70°C (No freezing allowed)
  • Ambient Humidity: 35% ~ 85% RH
  • Protection degree: IP65
  • Material: Plated Brass
  • Wiring Method: Pre-wired Ø4.2 x 2 M / 4-wires
  • Weight: Approx. 90g
