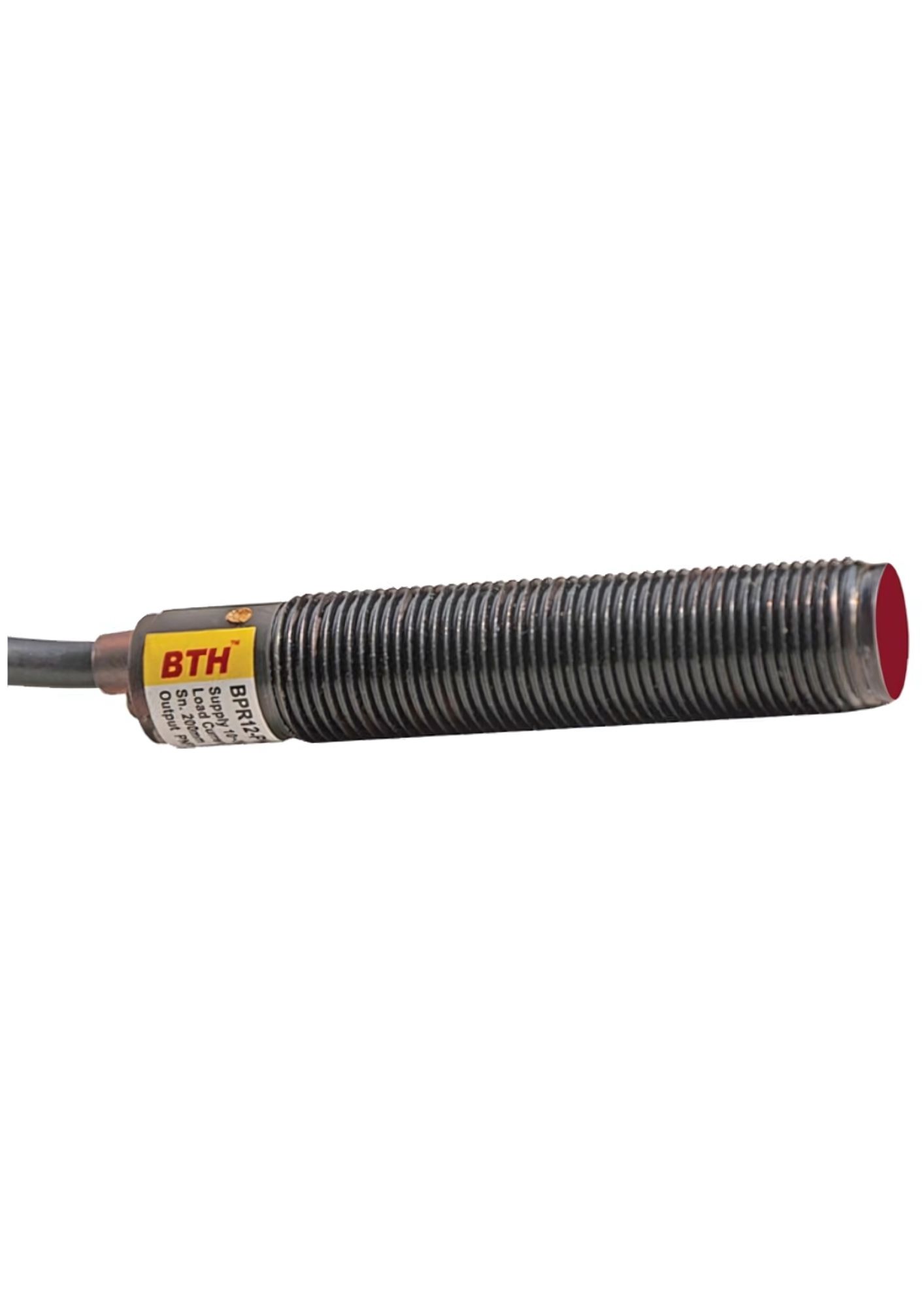

BPR12-PK200F||Diffuse Photo Sensor, Diameter 12mm, Sensing Range 200mm, PNP
In stock
SKU
BPR12-PK200F
Special Price
₹1,202.50
Regular Price
₹1,850.00
Check Delivery Options at your Area
FREE SHIPPING
Free Shipping by Surface Only*
SECURE PAYMENT
100% Secure Payment
- Output Mode: PNP
- Sensing Distance: 200mm
- Emitting Light: Infrared LED 875 nm
- Operating Voltage: 10~30VDC
- Current Consumption: <30 mA Max. (white paper 100x100mm)
- Load Current: 200ma Max. at 24VDC
- Operation Mode: NO (Dark on) / NC (Light on) by the wire Selection
- Response Time: 1 ms Max.
- Insulation resistance: 20MΩ min. (DC500V)
- Voltage With Standability: AC1000V 60Hz for 60 Sec.
- Operating Temperature: -20°C ~ + 70°C (No freezing allowed)
- Ambient Humidity: 35% ~ 85% RH
- Protection degree: IP65
- Material: Plated Brass
- Wiring Method: Pre-wired Ø4.2 x 2 M / 4-wires
- Weight: Approx. 90g
