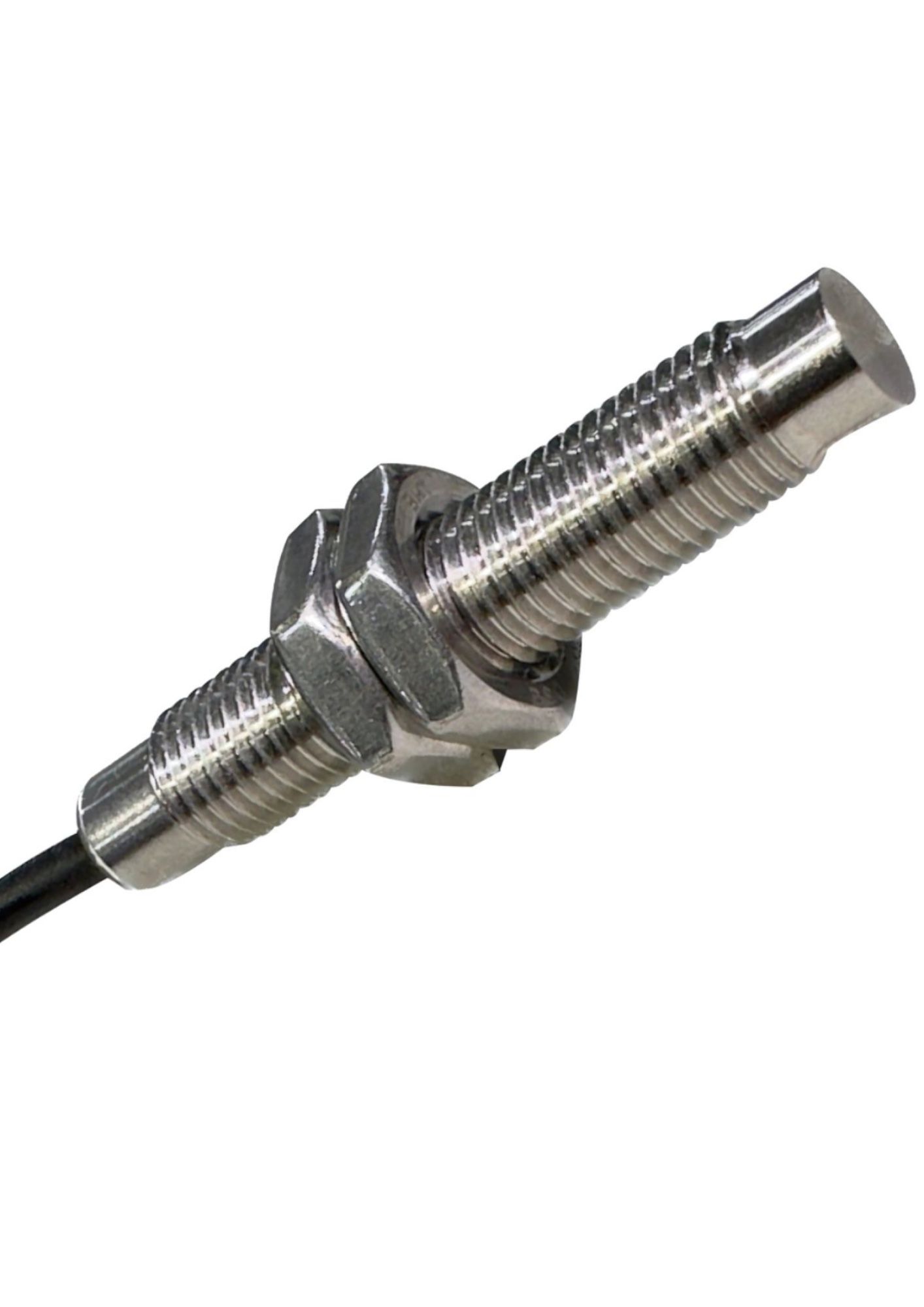

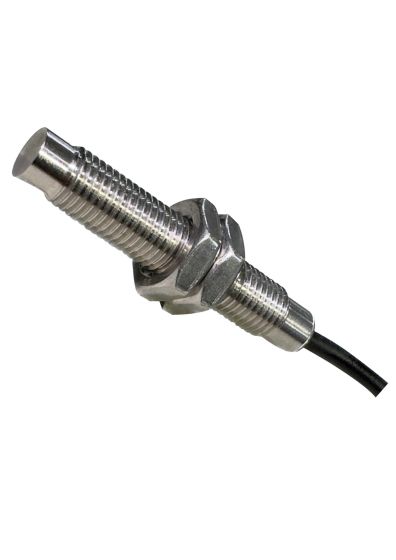

BIW8-NN3NF ||Full Stainless Steel Inductive Proximity Sensor, Diameter 8mm, Sensing Range 3mm, NPN NO

In stock

SKU

BIW8-NN3NF

Special Price ₹2,730.00 Regular Price ₹4,200.00

(18% GST Extra)

Qty

Add to Wish List

Check Delivery Options at your Area

FREE SHIPPING

Free Shipping by Surface Only*

100% Secure Payment

Function: Make NPN (NO)
Size: M8
Detecting Distance: 3mm
Standard sensing object: 8 x 8 x 1mm (Iron)
Detectable object: Ferrous metal 100%, The sensing distance decreases with non-ferrous metal i.e. stainless steel 60%, brass 50%, aluminum 40%, copper 30%
Response Frequency: 200Hz
Power Supply (Operating Voltage): 10 to 30 VDC, ripple (p-p)
Load current: 150mA
No load: <10mA
Leakage current: <0.01mA
Residual Voltage: <1.5V
Indicator: Operating LED indicator
Protection Circuit: Surge protection circuit, Over current, reverse polarity protection
Operating temperature: -25ºC ~ 70ºC
Insulation resistance: 50MΩ min (at 500VDC) between current-carrying parts and case
Dielectric strength: 1000VAC, 50/60 Hz for 1 minute between current-carrying parts and case
Degree of protection: IP67
Connection method: Pre-wired models - standard cable
Material: Stainless Steel
Weight: Approx. 30g
